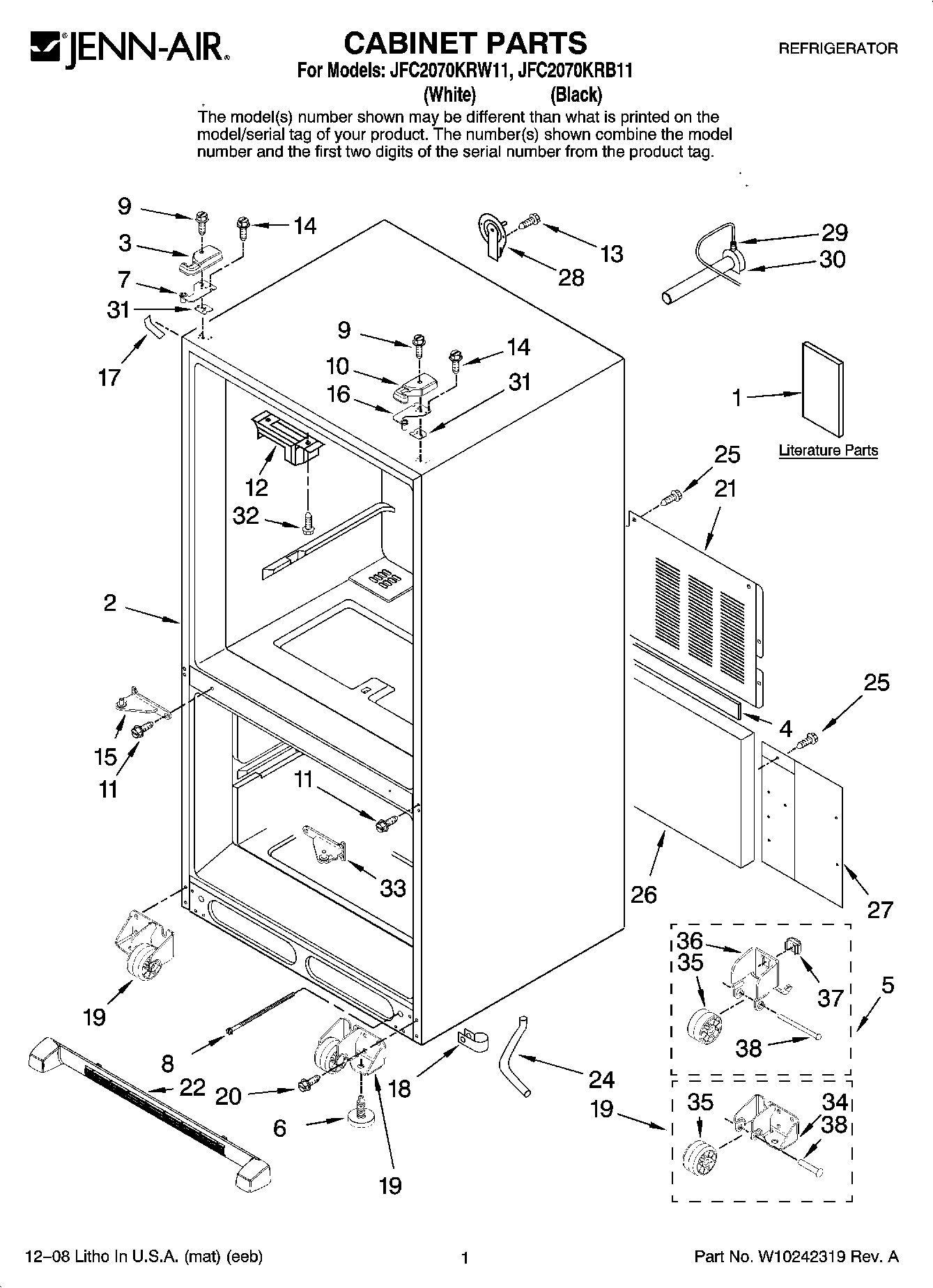

JFC2070KRB11 01 – CABINET PARTS

Products

Position	Product
1	MAY 67007082
1	Owners Manual
1	MAY 12827952
3	MAY 12684201B
3	MAY 12684201W
4	Gasket
5	Roller Assy.(Rear)
6	Brake, Foot
7	Hinge, Top Left
8	MAY 67006697
9	WP8281196 Whirlpool Screw
10	MAY 8208261
10	MAY 12684202B
11	MAY 67005822
12	WP67003405 Whirlpool Pivot Block
13	MAY 67006433
14	WP489349 Whirlpool Refrigerator Screw
15	67006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
15	W10918113 Whirlpool Refrigerator Door Hinge
16	Hinge, Top
17	67003484 Whirlpool Refrigerator White Corner Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	67001067 Whirlpool Refrigerator Drain Tube Clip
19	ROLLER ASSY.(FRONT) (LEFT)
19	ROLLER ASSY.(FRONT) (RIGHT)
20	MAY 67006564
21	MAY 67006101
22	MAY W10131133
22	Grille Assembly (Includes Clips) (Black)
24	MAY 67001066
25	Screw (10)
26	67003796 Whirlpool Refrigerator Fiber Acoustic
27	MAY 67004098
28	COVER, WATER LINE
29	Clip
30	MAY W10137519
31	MAY 12579702
32	WP7101P126-60 Whirlpool Screw
33	MAY 67006379
33	W10918168 Whirlpool Refrigerator Door Hinge
34	Bracket, Roller (Front) (Right)
34	Bracket, Roller (Front) (Left)
35	WP10450603 Whirlpool Refrigerator Roller
36	12456801V Whirlpool Refrigerator Bracket
37	MAY M0286708
38	MAY M1205302
