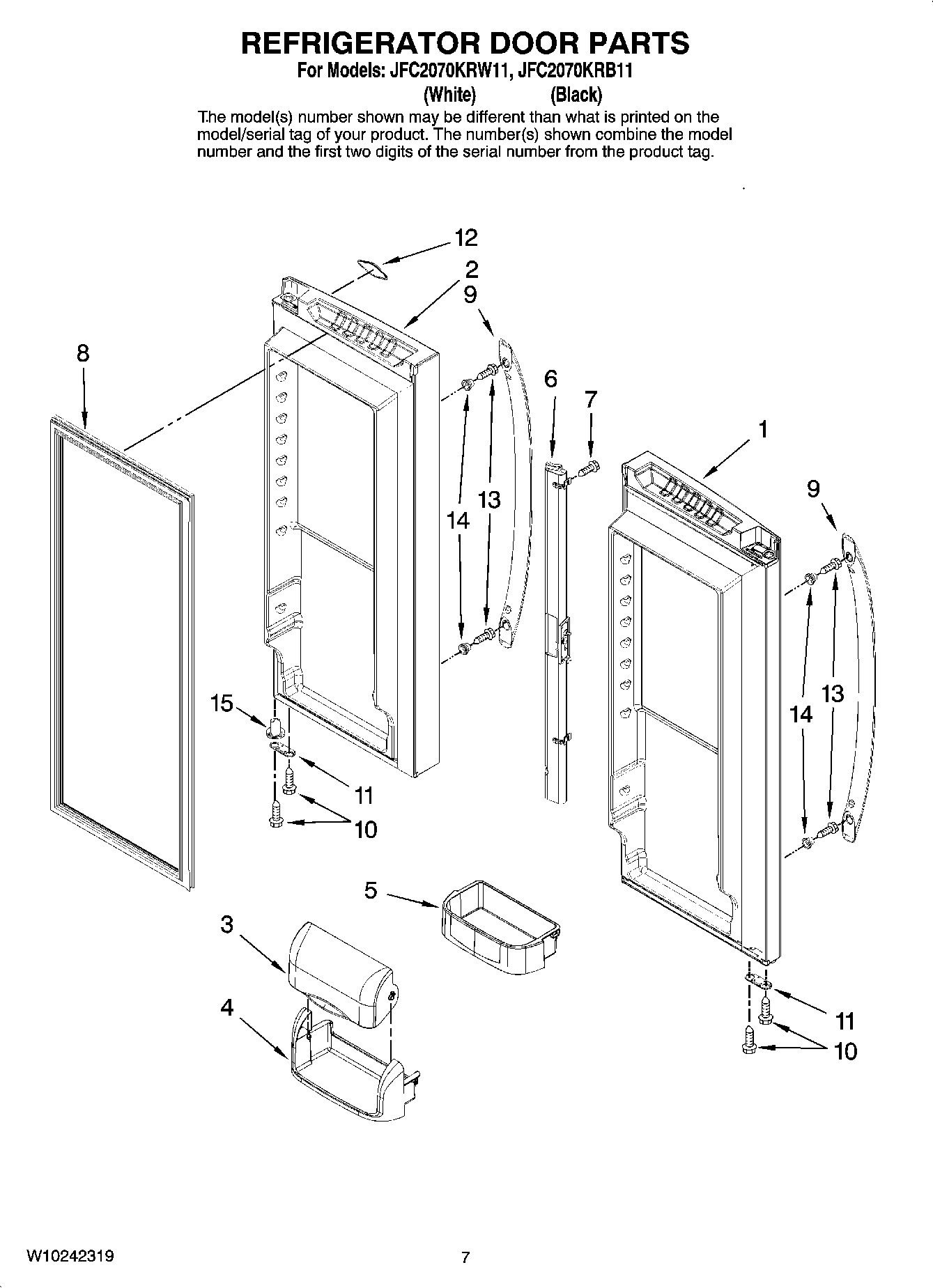

JFC2070KRB11 04 – REFRIGERATOR DOOR PARTS

JFC2070KRB11 04 – REFRIGERATOR DOOR PARTS

Written by

in

JFC2070KRB11 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR ASSY., LT REF. FOAM (WHT)
1MAY 67006591
2DOOR ASSY., RT REF. FOAM (WHT)
2MAY 67006595
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
567004749 Whirlpool Refrigerator Door Shelf Gallon Bin
567004748 Whirlpool Refrigerator Door Bucket
6RAIL-MULLN WHITE
6WP12722803B Whirlpool Door Guide
7MAY 67006786
8Gasket, Door (2) (White)
8MAY 12723206B
9Handle, Door (Stainless)
10WP98165 Whirlpool Screw
11W11708403 Whirlpool Door Stop
11MAY 12968202W
1212848704 Whirlpool Refrigerator Nameplate
13SCREW, HANDLE
14MAY 67006109
15WP67003638 Whirlpool Closing Cam
15WP67003639 Whirlpool Refrigerator Closer
