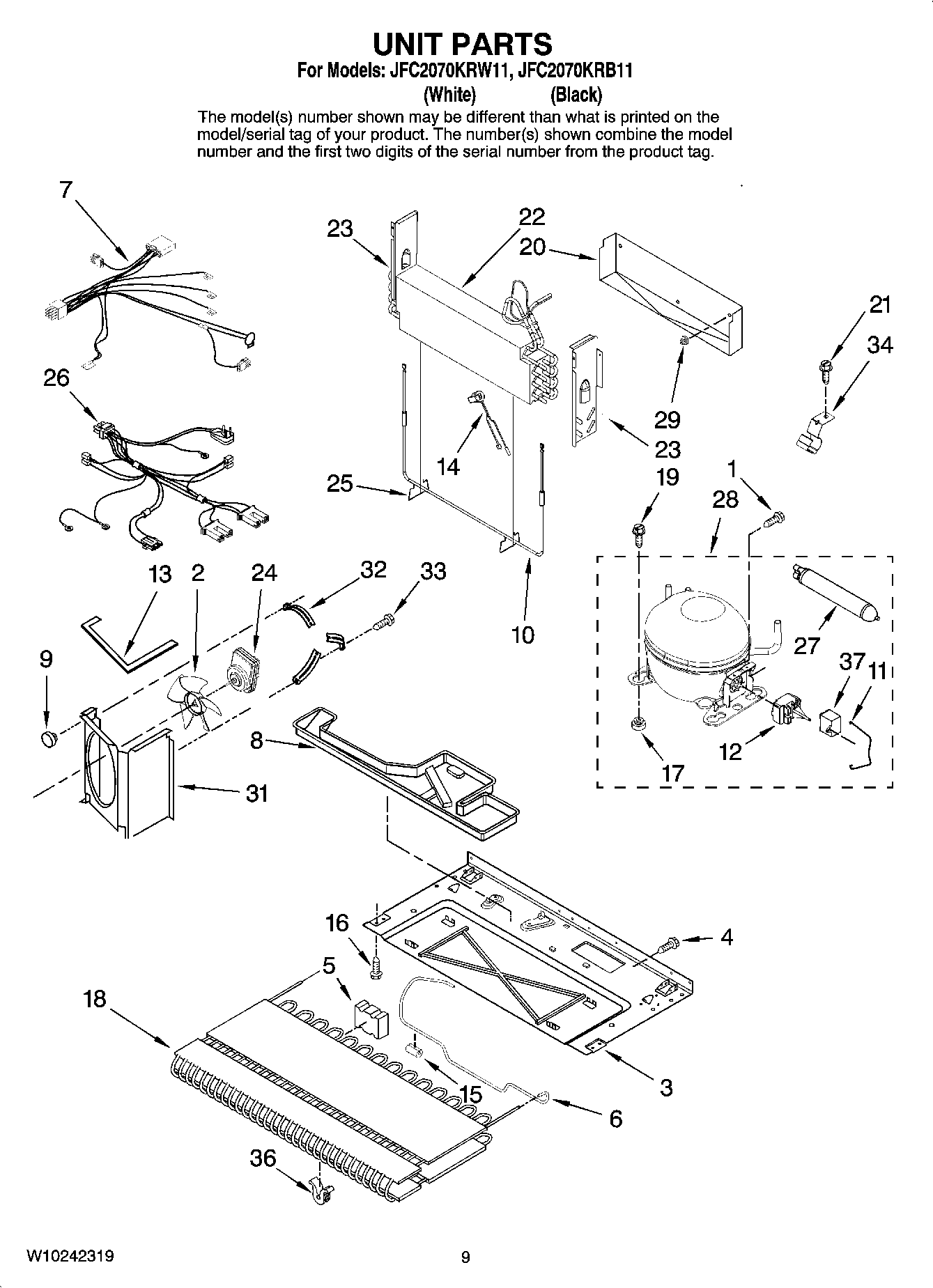

JFC2070KRB11 05 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	MAY 876764
1	MAY 67006433
2	MAY W10162928
3	MAY 67005889
4	Screw (10)
5	MAY 67005491
6	MAY 67004700
7	MAY W10119856
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	GROMMET, BRACKET
10	WP67002493 Whirlpool Refrigerator Defrost Heater
11	MAY 67007052
12	W10613606 Whirlpool Refrigerator Start Device Relay Overload
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Screw (4)
17	MAY W10169124
18	WP67006131 Whirlpool Refrigerator Condenser
19	MAY 67006432
20	MAY 67002490
21	SCREW
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	MAY 67001083
23	MAY 67001084
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	Harness, Unit with Power Cord
27	Drier
28	COMPRESSOR-TPG1370YXA(BM)
29	MAY 10623002
31	Shroud, Condenser
32	MAY 67004953
33	WP67004954 Whirlpool Refrigerator Screw
34	MAY 10547003
36	GROMMET, COND (4)
37	Capacitor
