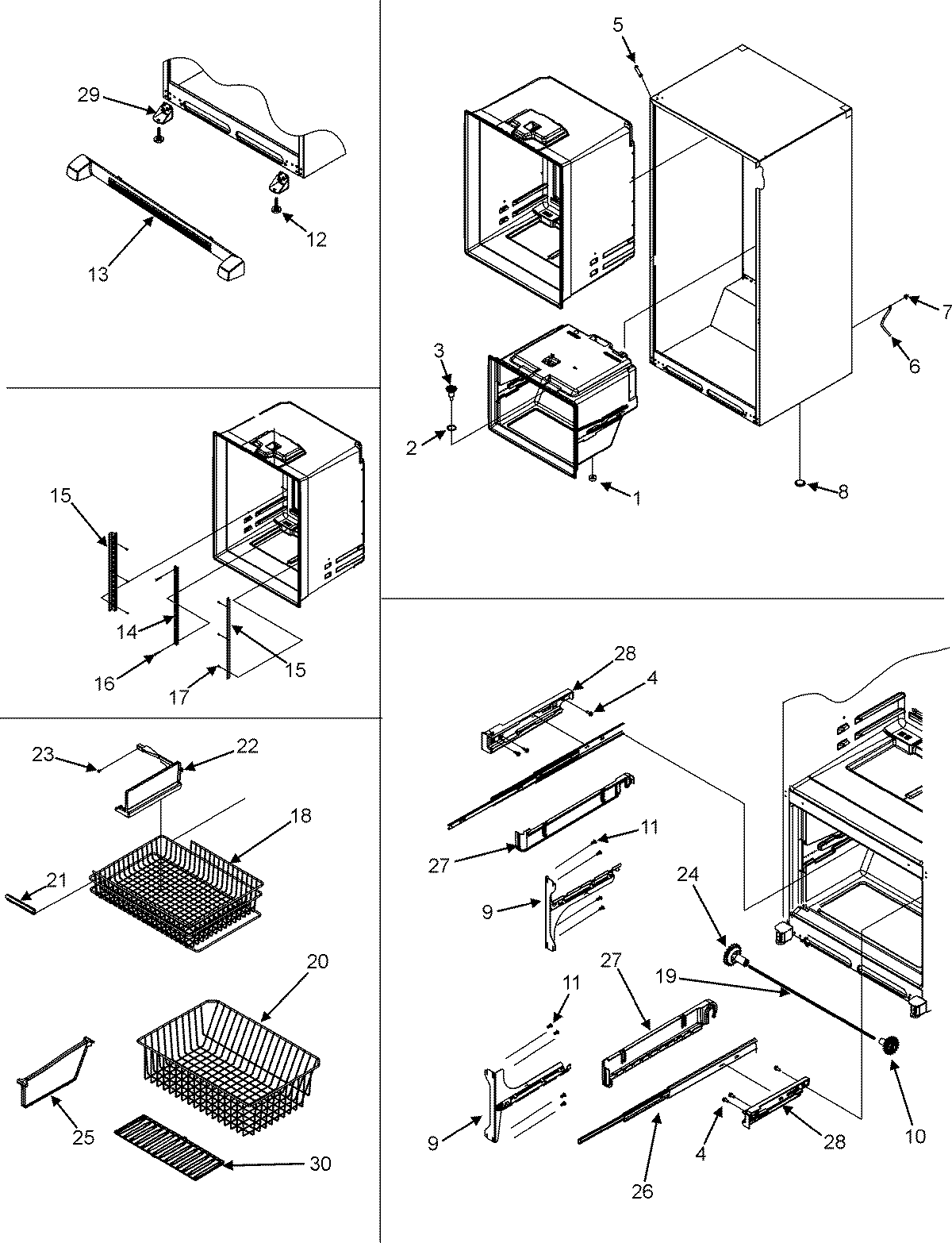

JFC2070KRW 09 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

JFC2070KRW 09 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

Written by

in

JFC2070KRW 09 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4Screw (6)
567003484 Whirlpool Refrigerator White Corner Cover
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9WPW10330993 Whirlpool Refrigerator Bracket
9WPW10330991 Whirlpool Refrigerator Bracket
10GEAR (RT)
11Screw (8)
12W11177593 Whirlpool Leveling Feet
13Clip, Grille
13WPW10534154 Whirlpool Refrigerator Front Grille
1467001073 Whirlpool Refrigerator Center Ladder
1567002489 Whirlpool Refrigerator Ladder L/R Side
16W10709795 Whirlpool Refrigerator Screw
17MAY 67006400
18MAY 67004989
19W11028221 Whirlpool Refrigerator Shaft
20MAY 67006027
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67006608
24GEAR (LT)
25MAY 67004727
26MAY 67006913
27MAY 67004728
27W10251557 Whirlpool Refrigerator Bracket
28W10284690 Whirlpool Refrigerator Bracket
28MAY 67004972
29MAY 67006491
2912906303WD Whirlpool Refrigerator Bracket
30W10332340 Whirlpool Refrigerator Mat
