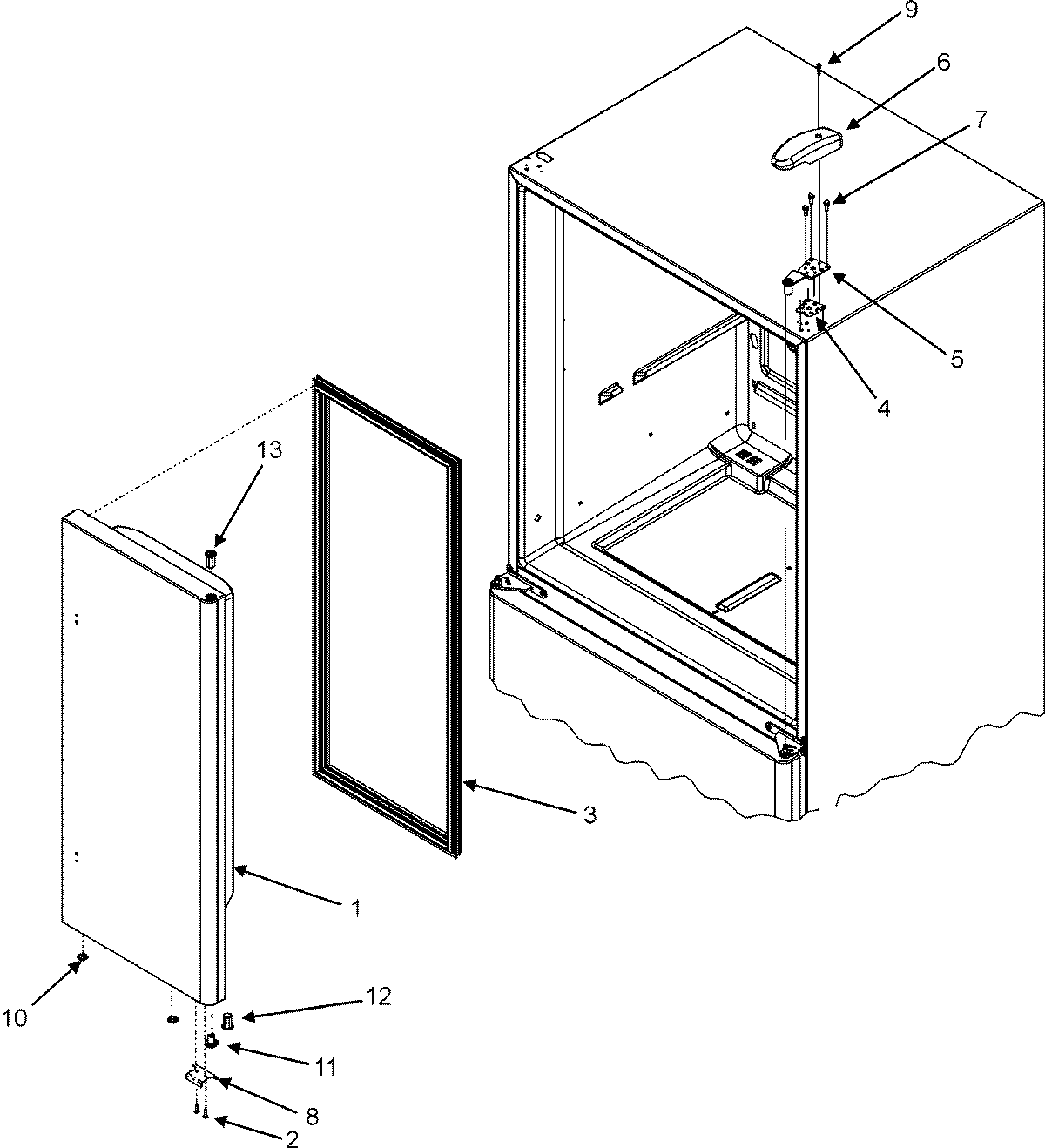

JFC2070KRW 14 – RIGHT REFRIGERATOR DOOR

JFC2070KRW 14 – RIGHT REFRIGERATOR DOOR

Written by

in

JFC2070KRW 14 – RIGHT REFRIGERATOR DOOR

Products

PositionProduct
1DOOR ASSY., RT REF. FOAM (WHT)
2WP98165 Whirlpool Screw
3W10830189 Whirlpool Refrigerator Door Gasket
4MAY 12579702
5WP12566606ED Whirlpool Refrigerator Door Hinge
6MAY 12684202W
7WP489349 Whirlpool Refrigerator Screw
8STOP, DOOR (WHT)
9WP8281196 Whirlpool Screw
1010712401 Whirlpool Refrigerator Vent Plug (White)
11WP67003638 Whirlpool Closing Cam
1212028601W Whirlpool Refrigerator Hinge Bushing
13WP67004977 Whirlpool Refrigerator Door Hinge Bushing
