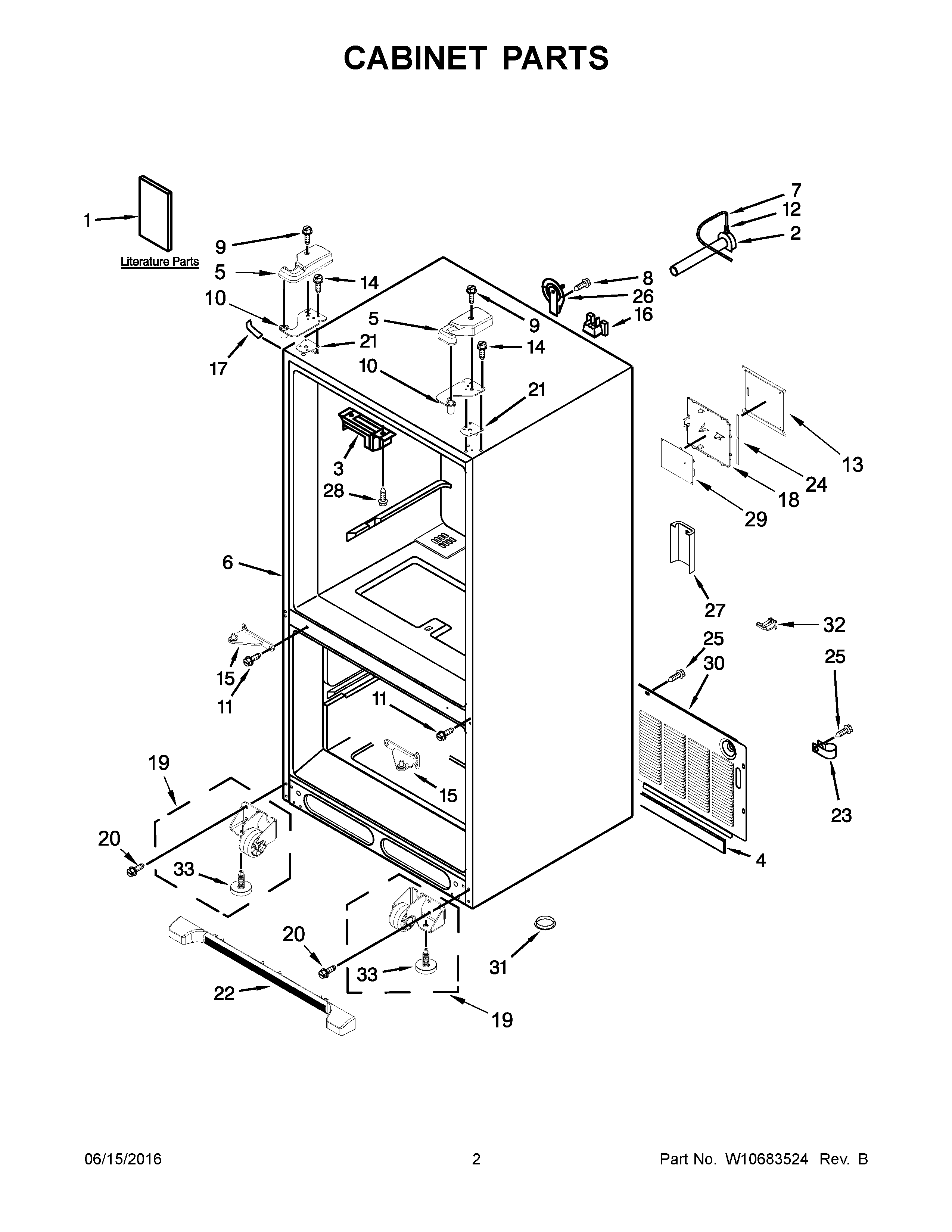

JFC2089BEM00 02 – CABINET PARTS

Products

Position	Product
1B	MAY W10648189
1A	MAY W10648046
1	MAY W10636717
2	MAY 10463203
3	Block, Pivot
4	MAY B5759655
5	COVER, TOP HINGE (LEFT) (GREY)
5A	MAY 12962302AP
6	LINER (NOT A SERVICEABLE PART)
7	MAY B5705333
8	MAY 12990504
9	MAY 12992602
10	MAY 12963204ED
10A	MAY 12963205ED
11	MAY W10673840
12	Clip
13	MAY 12961602
14	SCREW (6)
15A	HINGE, CENTER (RT) (GREY)
15	HINGE, CENTER (LT) (GREY)
16	MAY W10658542
17	COVER, CORNER (GREY)
18	MAY W10296541
19A	ROLLER ASSEMBLY (RIGHT HAND)
19	ROLLER ASSEMBLY (LEFT HAND)
20	MAY W10709365
21A	MAY 12999502
21	MAY 12999501
22	MAY W10534155
23	CLAMP, TUBE
24	GASKET-HV BOX
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	Screw (4)
29	BOARD, HV CONTROL
30	MAY W10211855
31	A3076901 Whirlpool Refrigerator Plug
32	MAY W10528513
33	Brake, Foot
