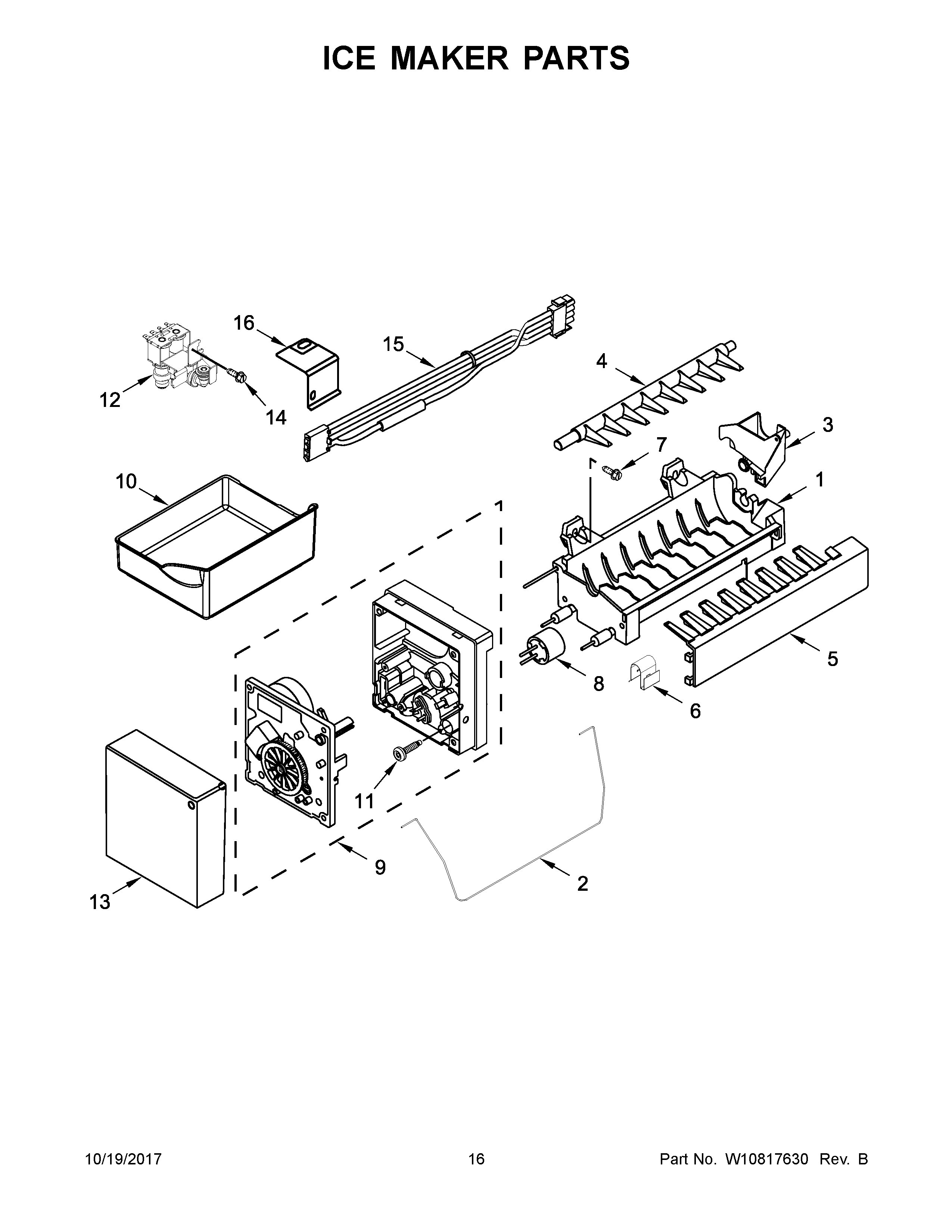

JFC2089BEM01 09 – ICE MAKER PARTS

Products

Position	Product
1	ASSEMBLY, MOLD AND HEATER
2	ARM, SHUT OFF
3	MAY W10410073
4	MAY W10318914
5	MAY W10699925
6	Clip
7	Screw (3)
8	Thermostat (Also Order 542369 Cement Alumilastic)
9	ASSEMBLY, MODULE AND MOTOR
10	MAY W10171529N
11	MAY 8533917
12	VALVE, WATER INLET
13	MAY W10377174
14	MAY 12991604
15	MAY W10458985
16	MAY 2256086
100	ASSEMBLY, ICEMAKER (COMPLETE)
