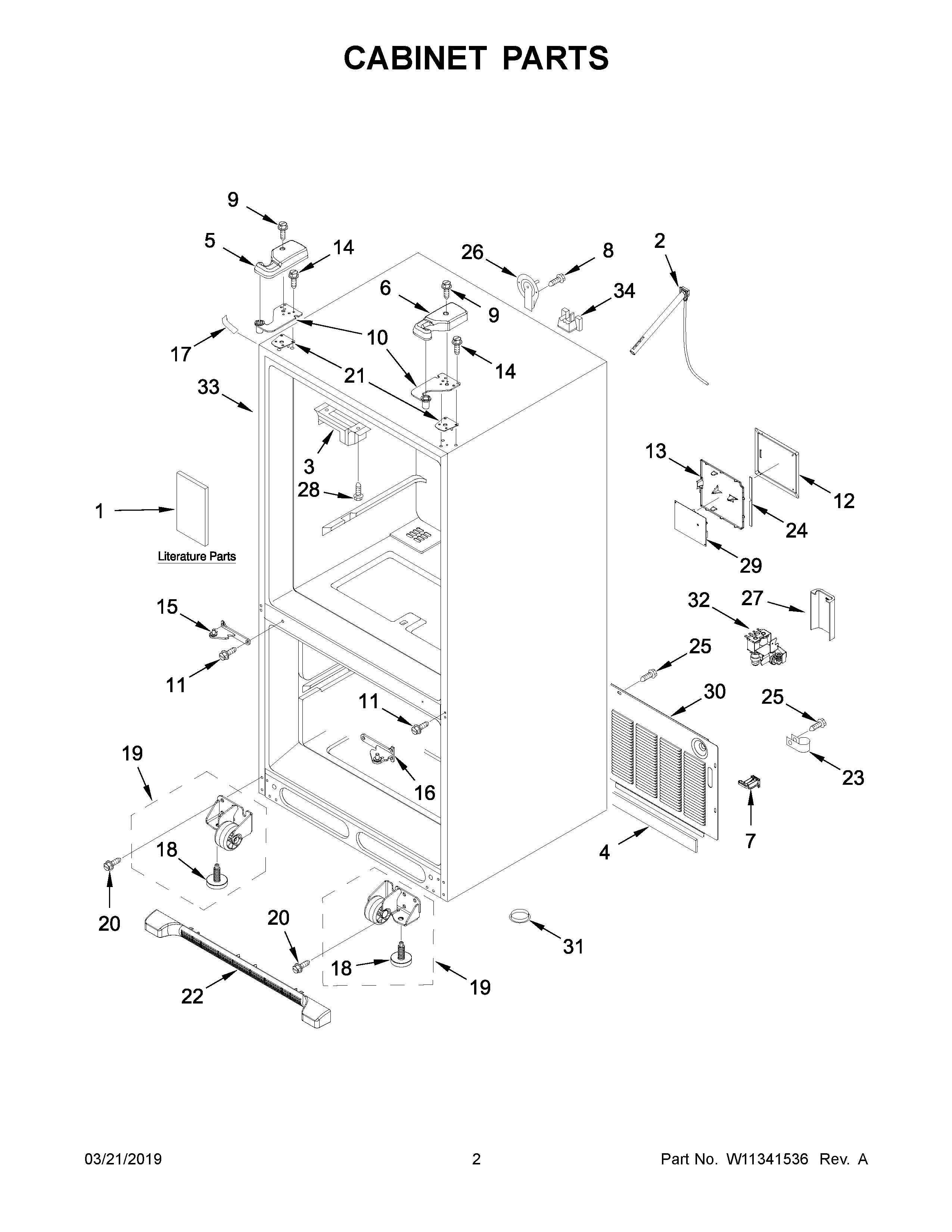

JFC2089BEM03 02 – CABINET PARTSadmin2025-04-26T09:27:05+00:00JFC2089BEM03 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1B | MAY W11308938 |
| 1A | MAY W11298862 |
| 1 | MAY W10787422 |
| 2 | ASSEMBLY, FILL TUBE (INCLUDES TUBING, FILL TUBE ELBOW, TUBE INSERT AND CLAMP) |
| 3 | Block, Pivot |
| 4 | MAY B5759655 |
| 5 | COVER, TOP HINGE (LEFT) (GREY) |
| 6 | MAY 12962302AP |
| 7 | MAY W10528513 |
| 8 | MAY 12990504 |
| 9 | MAY 12992602 |
| 10A | MAY 12963205ED |
| 10 | MAY 12963204ED |
| 11 | MAY W10673840 |
| 12 | MAY 12961602 |
| 13 | MAY 12957702SP |
| 14 | SCREW (6) |
| 15 | HINGE, CENTER LEFT HAND (GREY) |
| 16 | HINGE, CENTER RIGHT HAND (GREY) |
| 17 | COVER, CORNER (GREY) |
| 18 | Brake, Foot |
| 19 | ROLLER ASSEMBLY (LEFT HAND) |
| 19A | ROLLER ASSEMBLY (RIGHT HAND) |
| 20 | MAY W10709365 |
| 21A | MAY 12999502 |
| 21 | MAY 12999501 |
| 22 | MAY W10534155 |
| 23 | CLAMP, TUBE |
| 24 | GASKET-HV BOX |
| 25 | SCREW (10) |
| 26 | MAY 12726003 |
| 27 | GUARD-WATER VALVE |
| 28 | SCREW |
| 29 | BOARD, HV CONTROL |
| 30 | MAY W10211855 |
| 31 | A3076901 Whirlpool Refrigerator Plug |
| 32 | VALVE, WATER INLET |
| 33 | LINER (NOT A SERVICEABLE PART) |
| 34 | MAY W10658542 |
