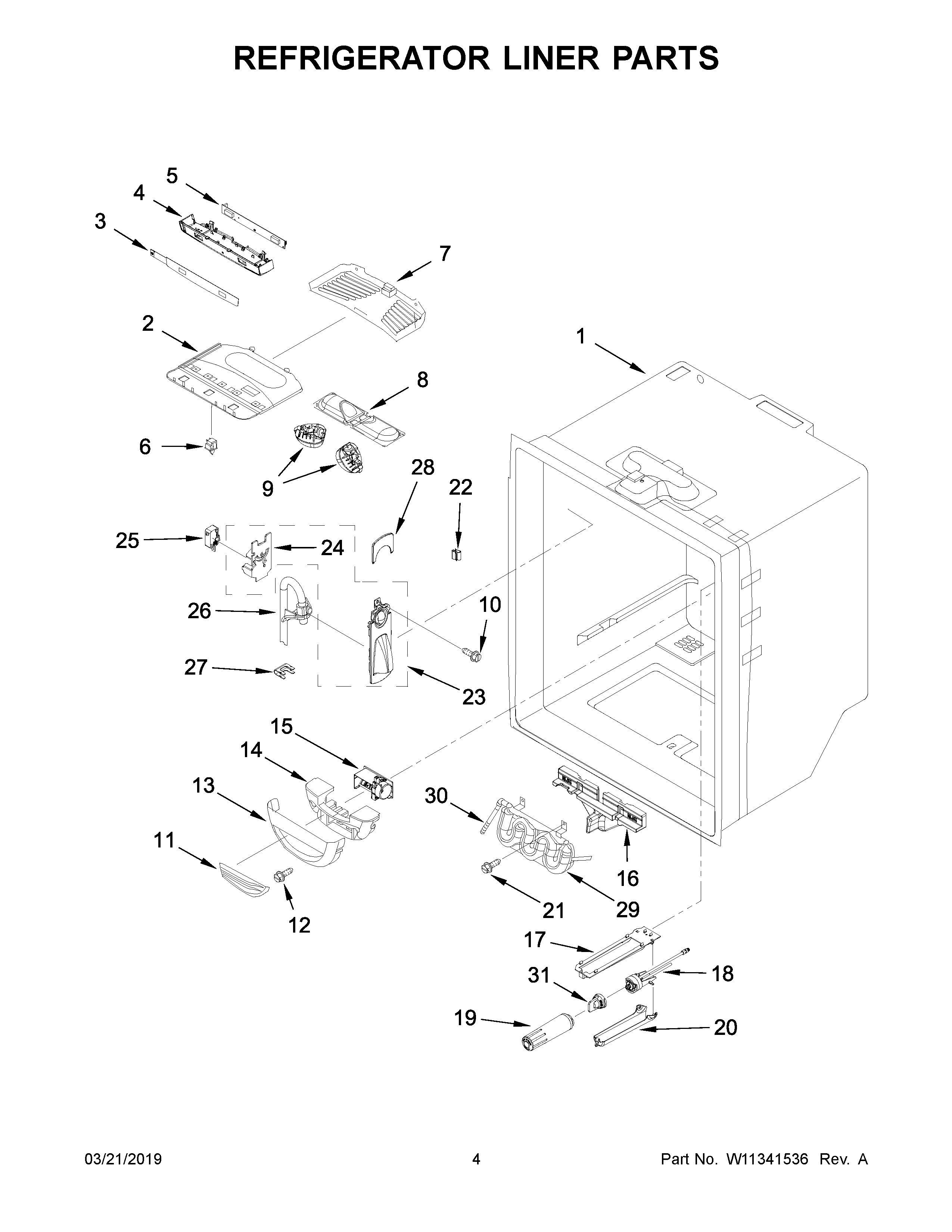

JFC2089BEM03 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10224292
2	MAY W10464764
3	OVERLAY
4	MAY W10464767
5	BOARD, CONTROL
6	SWITCH, LIGHT
7	COVER, LIGHT
8	MAY W10443023
9	MAY W11251749
10	MAY 12990513
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	MAY W10594329
16	Insulation, Tank
17	PLATE
18	MAY W11308018
19	MAY W11256384
20	WP12568001 Whirlpool Filter Cover
21	SCREW (2)
22	Clip, Facade (2)
23	MAY W10585703
24	MAY W10585699
25	WP12575501 Whirlpool Refrigerator Micro Switch
26	GUIDE, WATERLINE
27	MAY 12251001
28	FACADE, DISP (TOP)
29	TANK, WATER
30	WP2300868 Whirlpool Refrigerator Fitting
31	MAY 12664501SP
