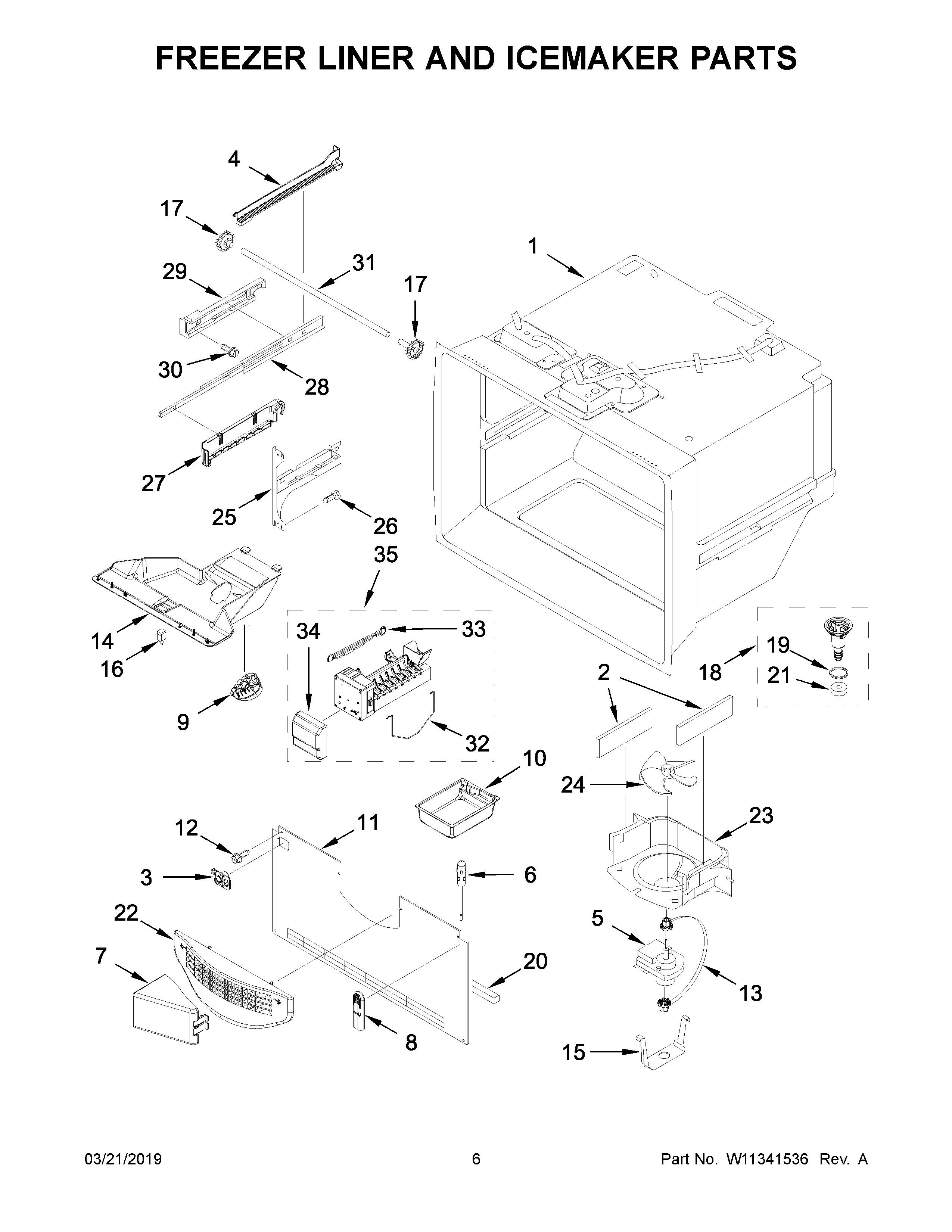

JFC2089BEM03 04 – FREEZER LINER AND ICEMAKER PARTS

JFC2089BEM03 04 – FREEZER LINER AND ICEMAKER PARTS

Written by

in

JFC2089BEM03 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY W11261524
4RACK, SIDE (LEFT HAND)
4ARACK, SIDE (RIGHT HAND)
5MAY 13062901
6MAY 12791419SP
7MAY W10157765
8MAY 12815301
9MAY W11251749
10MAY W10171529N
11MAY W10308416
12SCREW (10)
13MAY W10150583
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16SWITCH, LIGHT
1712002497 Whirlpool Refrigerator Drawer Gear Kit
18MAY W10662407
19MAY M0500703
20GASKET, BOTTOM
21Gasket
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25ABRACKET, DOOR (RIGHT)
25BRACKET, DOOR (LEFT)
26Screw (8)
27CRADLE, BASKET (LEFT)
27ACRADLE, BASKET (RIGHT)
28Slide, Drawer (2)
29BRACKET, SLIDE (LEFT)
29ABRACKET, SLIDE (RIGHT)
30Screw (6)
31MAY W10802332
32ARM, SHUT OFF
33MAY W10793621
34COVER
35ASSEMBLY, ICEMAKER (COMPLETE)
