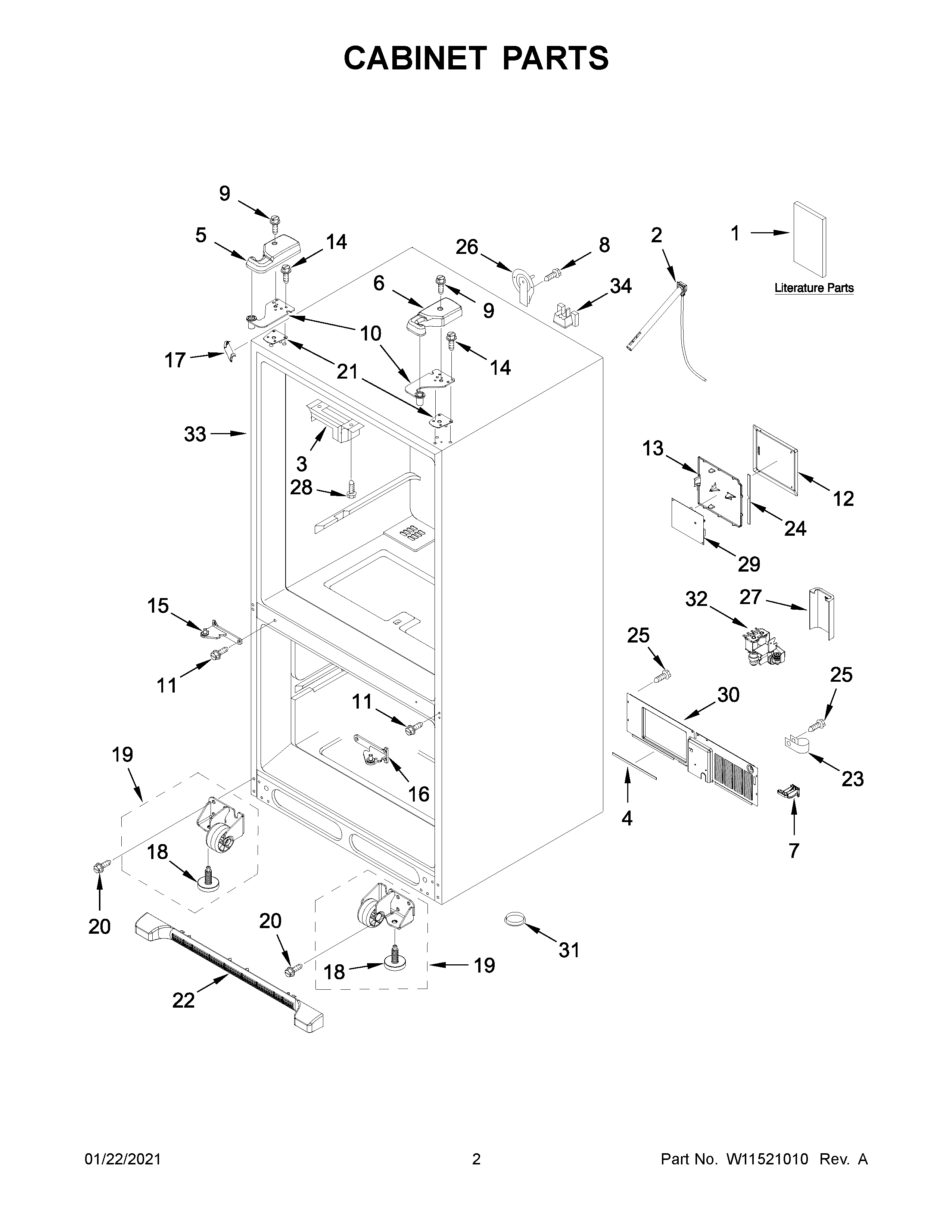

JFC2089BEM04 02 – CABINET PARTS

Products

Position	Product
1A	USE AND CARE GUIDE
1B	ENERGY GUIDE
1	TECH SHEET
2	W11181718 Whirlpool Refrigerator Water Tube
3	WP67003405 Whirlpool Pivot Block
4	GASKET
5	WPW10337648 Whirlpool Refrigerator Cover
6	WPW10191117 Whirlpool Refrigerator Cover
7	W10528513 Whirlpool Tube Clamp
8	WP98165 Whirlpool Screw
9	WP8281196 Whirlpool Screw
10A	W11592374 Whirlpool Refrigerator Top Door Hinge
10	W11592375 Whirlpool Door Hinge
11	W11573362 Whirlpool Screw Assembly
12	12961602 Whirlpool Refrigerator Wire Cover
13	W11226688 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15	W10917991 Whirlpool Refrigerator Door Hinge
16	HINGE-DOOR
17	WP12587703AP Whirlpool Refrigerator Filler
18	WPW10141622 Whirlpool Leveler
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21A	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23	W11456069 Whirlpool Refrigerator Clamp
24	GASKET, HV BOX
25	SCREW
26	12726003 Whirlpool Refrigerator Water Cover
27	W10208593 Whirlpool Refrigerator Valve Cover
28	W11693756 Whirlpool Screw Assembly
29	WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
30	WPW10211855 Whirlpool Refrigerator Back Cover
31	A3076901 Whirlpool Refrigerator Plug
32	VALVE-WATER INLET REFR
33	CABINET (NOT A SERVICEABLE PART)
34	W11686793 Whirlpool Block
