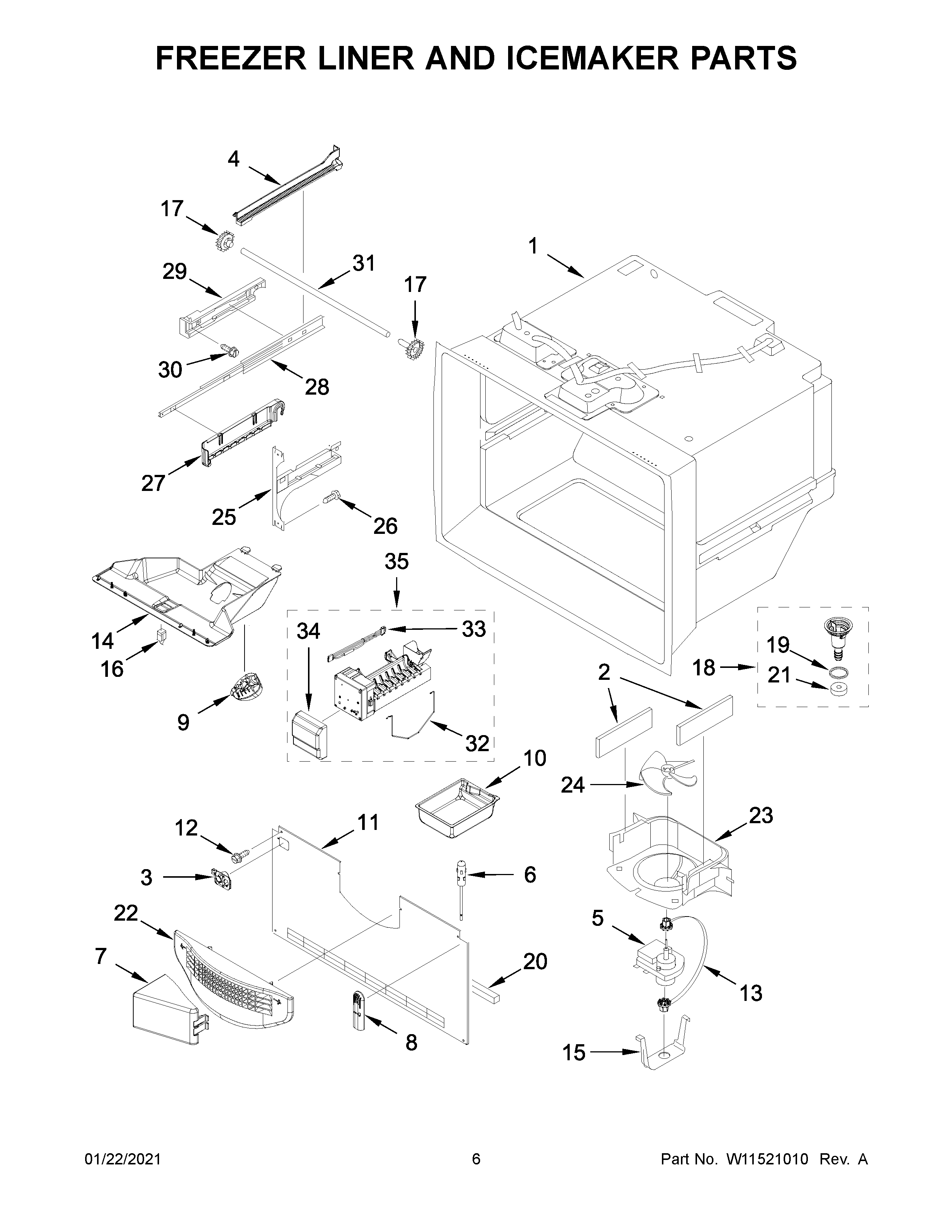

JFC2089BEM04 04 – FREEZER LINER AND ICEMAKER PARTS

JFC2089BEM04 04 – FREEZER LINER AND ICEMAKER PARTS

Written by

in

JFC2089BEM04 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
3W11448709 Whirlpool Refrigerator Bracket
4AW10516604 Whirlpool Refrigerator Rail
4W10516605 Whirlpool Refrigerator Rail
5MOTOR-EVAP
6W10316760 Whirlpool Thermistor Kit
7W10157765 Whirlpool Refrigerator Deflector
8WP67003924 Whirlpool Refrigerator Cover
9MODULE
10WPW10171529 Whirlpool Refrigerator Ice Pan
11W11727809 Whirlpool Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13W11690160 Whirlpool Grommet
14WPW10277025 Whirlpool Refrigerator Housing
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
1712002497 Whirlpool Refrigerator Drawer Gear Kit
18W10815413 Whirlpool Refrigerator Funnel
19WPM0500703 Whirlpool Refrigerator O-Ring Seal
20W11159728 Whirlpool Refrigerator Gasket
21WPB8381501 Whirlpool Refrigerator Door Gasket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25AWPW10330995 Whirlpool Refrigerator Bracket
25WPW10330994 Whirlpool Refrigerator Bracket
26WP98165 Whirlpool Screw
27AWPW10281116 Whirlpool Bracket
27WPW10281115 Whirlpool Refrigerator Bracket
28W11658403 Whirlpool Slide
29WPW10284692 Whirlpool Refrigerator Bracket
29AWPW10284693 Whirlpool Mounting Bracket
30WP489474 Whirlpool Refrigerator Screw
31W11028221 Whirlpool Refrigerator Shaft
32W11285509 Whirlpool Refrigerator Shut-Off Arm
33W10886932 Whirlpool Refrigerator Wire Harness
34WPW10289690 Whirlpool Ice Maker Cover
35W10884390 Whirlpool Refrigerator Ice Maker Assembly
