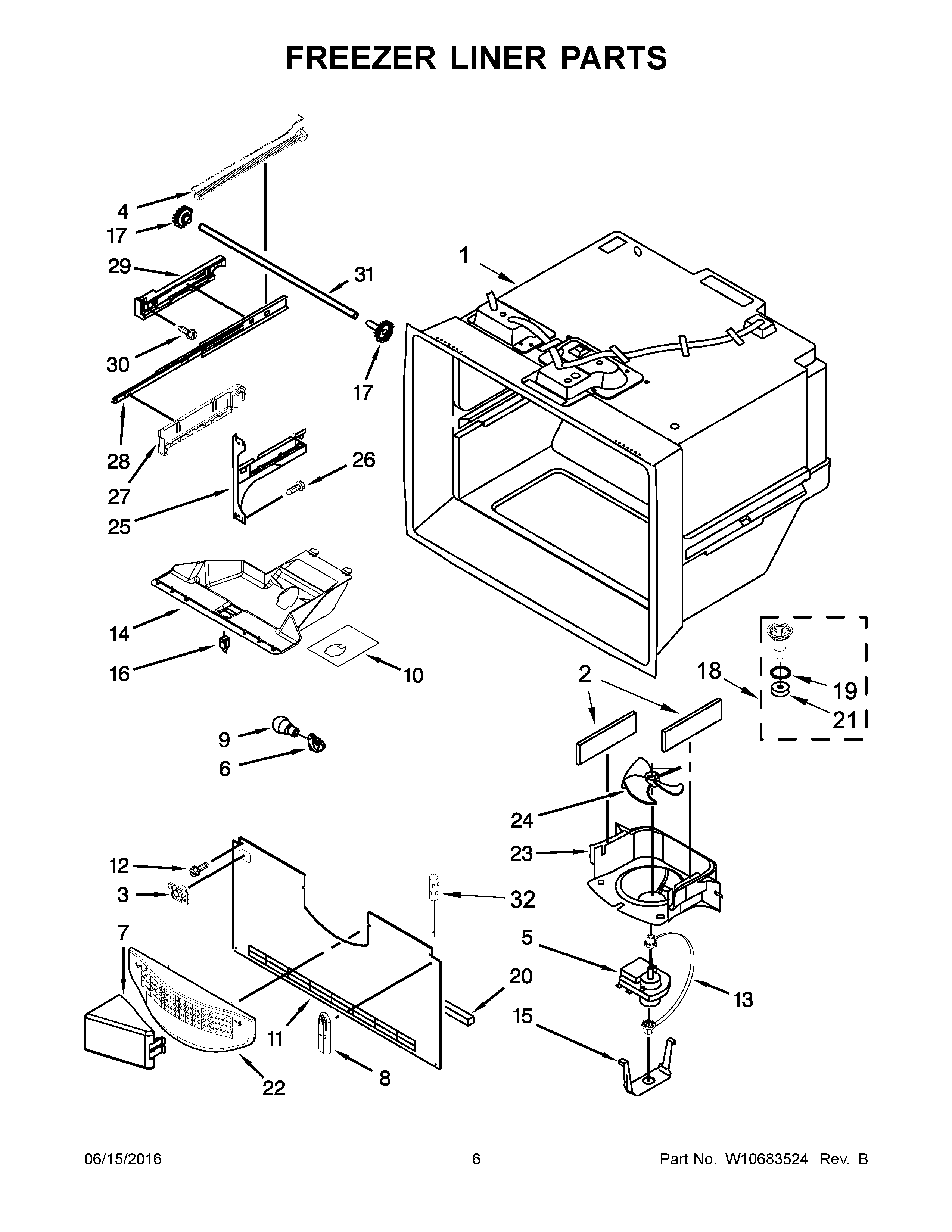

JFC2089BEP00 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12932103
4A	RACK, SIDE (RIGHT HAND)
4	RACK, SIDE (LEFT HAND)
5	MAY 13062901
6	W11447232 Whirlpool Refrigerator Socket
7	MAY W10157765
8	MAY 12815301
9	MAY W10820003
10	FOIL-FZ LIGHT
11	MAY W10308416
12	SCREW (10)
13	MAY W10150583
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	12002497 Whirlpool Refrigerator Drawer Gear Kit
18	MAY W10662407
19	MAY M0500703
20	GASKET, BOTTOM
21	Gasket
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25A	BRACKET, DOOR (RIGHT)
25	BRACKET, DOOR (LEFT)
26	Screw (8)
27	CRADLE, BASKET (LEFT)
27A	CRADLE, BASKET (RIGHT)
28	Slide, Drawer (2)
29A	BRACKET, SLIDE (RIGHT)
29	BRACKET, SLIDE (LEFT)
30	Screw (6)
31	MAY W10802332
32	MAY 12791419SP
