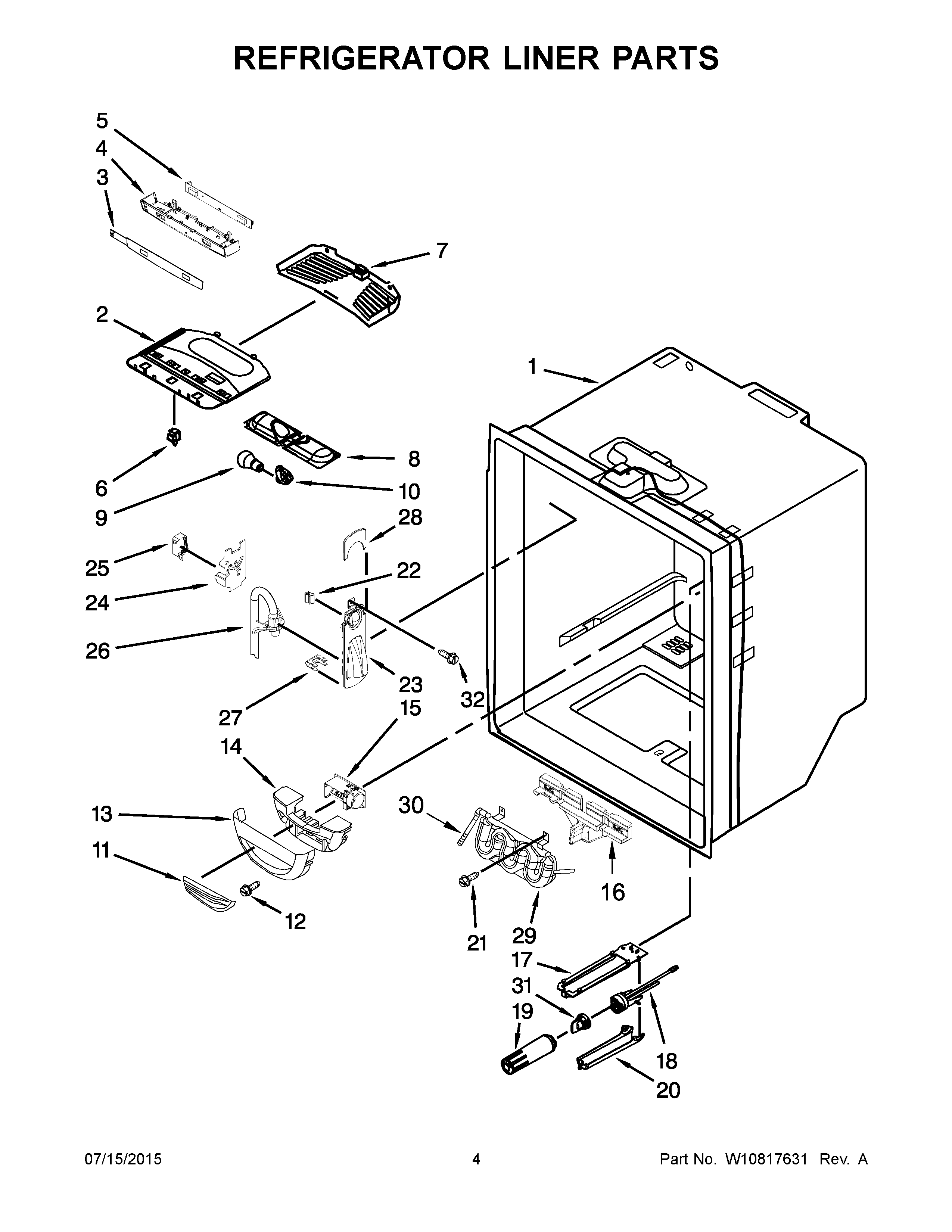

JFC2089BEP01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	MAY W10224292
NI	LINER (NOT A SERVICEABLE PART)
2	MAY W10464764
3	OVERLAY
4	MAY W10464767
5	MAY W10677146
6	SWITCH, LIGHT (2)
7	MAY 12806501
8	MAY W10443023
9	MAY W10745744
10	Socket, Light
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	MAY W10594329
16	Insulation, Tank
17	PLATE
18	MAY W10605367
19	MAY W10735404
20	WP12568001 Whirlpool Filter Cover
21	SCREW (2)
22	Clip, Facade (2)
23	MAY W10585703
24	MAY W10585699
25	WP12575501 Whirlpool Refrigerator Micro Switch
26	MAY 12707206
27	MAY 12251001
28	FACADE, DISP (TOP)
29	MAY 12706112
30	WP2300868 Whirlpool Refrigerator Fitting
31	MAY 12664501SP
32	MAY 12990513
