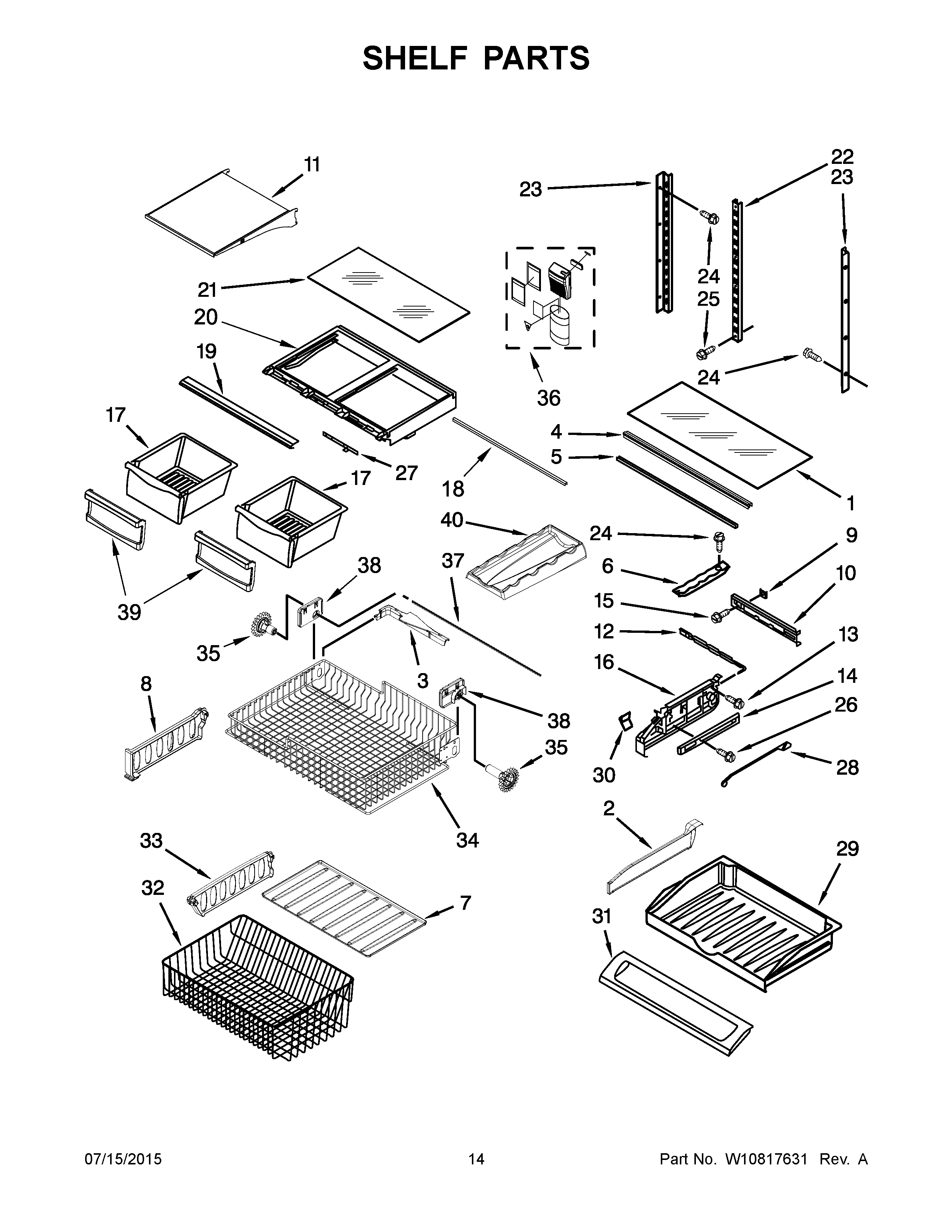

JFC2089BEP01 08 – SHELF PARTS

JFC2089BEP01 08 – SHELF PARTS

Written by

in

JFC2089BEP01 08 – SHELF PARTS

Products

Position	Product
1	MAY 12204829
2	DIVIDER, PANTRY DRAWER
3	MAY W10149389N
4	SUPPORT, GLASS
5	MAY 12227305WH
6	TRACK, PANTRY
7	TRAY-LOWER BSKT.
8	Divider, Upper Basket
9	MAY 12656901
10	MAY 12656202
11	MAY W10743555
12	SLIDE, TEMPERATURE
13	SCREW (2)
14	MAY W10235370
16	Endcap, Pantry (Left)
16A	ENDCAP, PANTRY (RIGHT)
17	Pan, Crisper (2)
18	Brace, Crisper
19	MAY W10231485N
20	MAY 12531202SP
21	Glass, Crisper Cover
22	MAY W10273463
23	MAY W10569182
24	MAY 12990513
25	MAY W10215666
26	MAY 12990504
27	MAY 12530805SP
28	ROD, TEMPERATURE CONTROL
29	MAY 12655702
30	KNOB, TEMP CONTROL
31	DOOR, PANTRY DRAWER
32	MAY W10503185
33	DIVIDER, LOWER BASKET
34	MAY W10348245
35	MAY W10474716
35A	MAY W10474715
36	MAY W10596756
37	MAY 12812904WD
38	MOUNT-GEAR (LEFT HAND)
38A	MOUNT-GEAR (RIGHT HAND)
39	HANDLE, CRISPER PAN (2)
40	TRIVET-WINE
