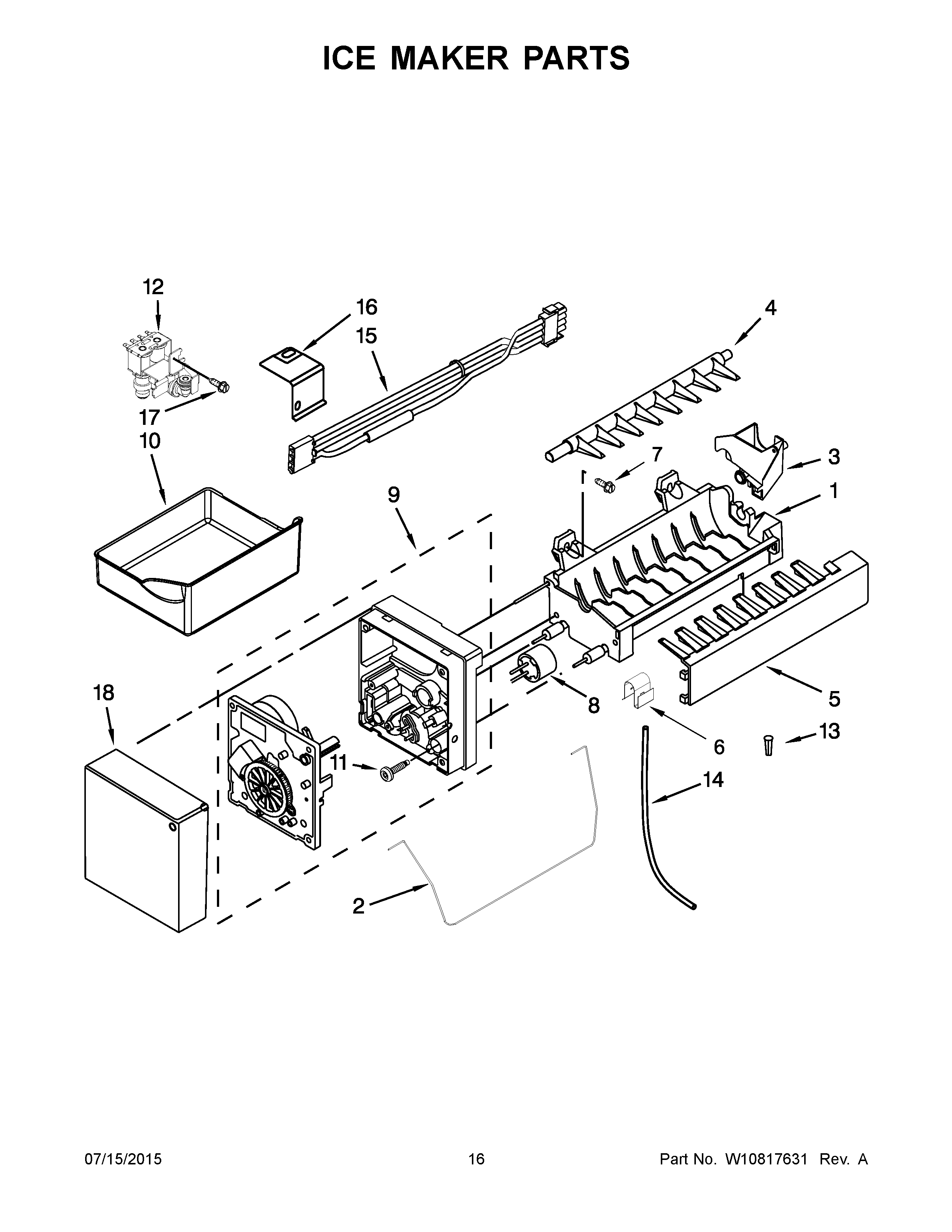

JFC2089BEP01 09 – ICE MAKER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	Icemaker Install Kit
1	ASSEMBLY, MOLD AND HEATER
2	ARM, SHUT OFF
3	MAY W10410073
4	MAY W10318914
5	MAY W10699925
6	Clip
7	Screw (3)
8	Thermostat (Also Order 542369 Cement Alumilastic)
9	ASSEMBLY, MODULE AND MOTOR
10	MAY W10171529N
11	MAY 8533917
12	VALVE, WATER INLET
13	MAY A3223101
14	MAY B5705333
15	MAY W10458985
16	MAY 2256086
17	MAY 12991604
18	MAY W10377174
100	ASSEMBLY, ICEMAKER (COMPLETE)
