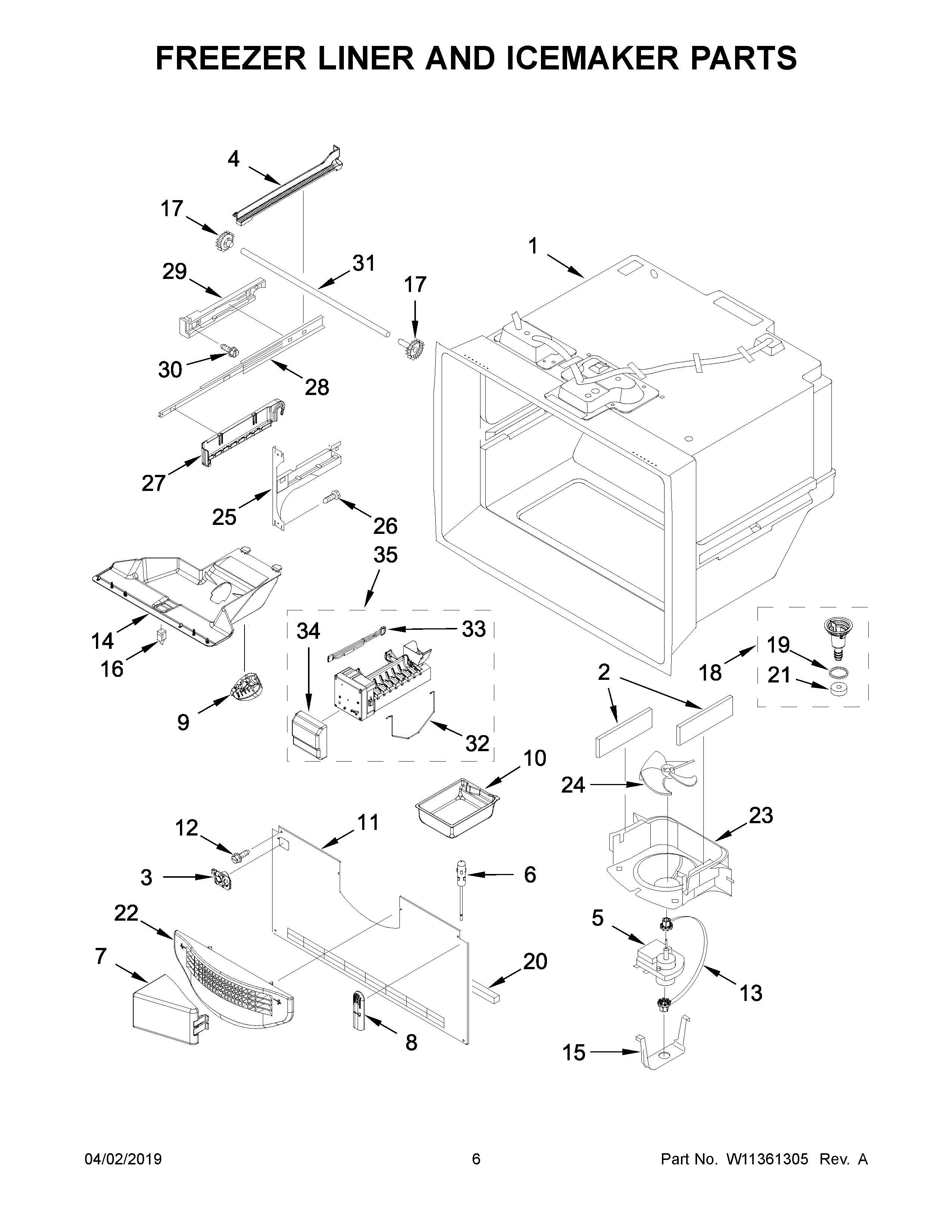

JFC2089BEP03 04 – FREEZER LINER AND ICEMAKER PARTSadmin2025-04-26T09:25:13+00:00JFC2089BEP03 04 – FREEZER LINER AND ICEMAKER PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2 | Gasket, Bottom |
| 3 | MAY W11261524 |
| 4 | RACK, SIDE (LEFT HAND) |
| 4A | RACK, SIDE (RIGHT HAND) |
| 5 | MAY 13062901 |
| 6 | MAY 12791419SP |
| 7 | MAY W10157765 |
| 8 | MAY 12815301 |
| 9 | MAY W11251749 |
| 10 | MAY W10171529N |
| 11 | MAY W10308416 |
| 12 | SCREW (10) |
| 13 | MAY W10150583 |
| 14 | MODULE-FZ LIGHT |
| 15 | CLIP, EVAP. MOTOR |
| 16 | SWITCH, LIGHT |
| 17 | 12002497 Whirlpool Refrigerator Drawer Gear Kit |
| 18 | MAY W10662407 |
| 19 | MAY M0500703 |
| 20 | GASKET, BOTTOM |
| 21 | Gasket |
| 22 | Grille, Fz Air |
| 23 | SHROUD, EVAP.FAN |
| 24 | Blade, Fan (Evaporator) |
| 25A | BRACKET, DOOR (RIGHT) |
| 25 | BRACKET, DOOR (LEFT) |
| 26 | Screw (8) |
| 27 | CRADLE, BASKET (LEFT) |
| 27A | CRADLE, BASKET (RIGHT) |
| 28 | Slide, Drawer (2) |
| 29 | BRACKET, SLIDE (LEFT) |
| 29A | BRACKET, SLIDE (RIGHT) |
| 30 | Screw (6) |
| 31 | MAY W10802332 |
| 32 | ARM, SHUT OFF |
| 33 | MAY W10793621 |
| 34 | COVER |
| 35 | ASSEMBLY, ICEMAKER (COMPLETE) |
