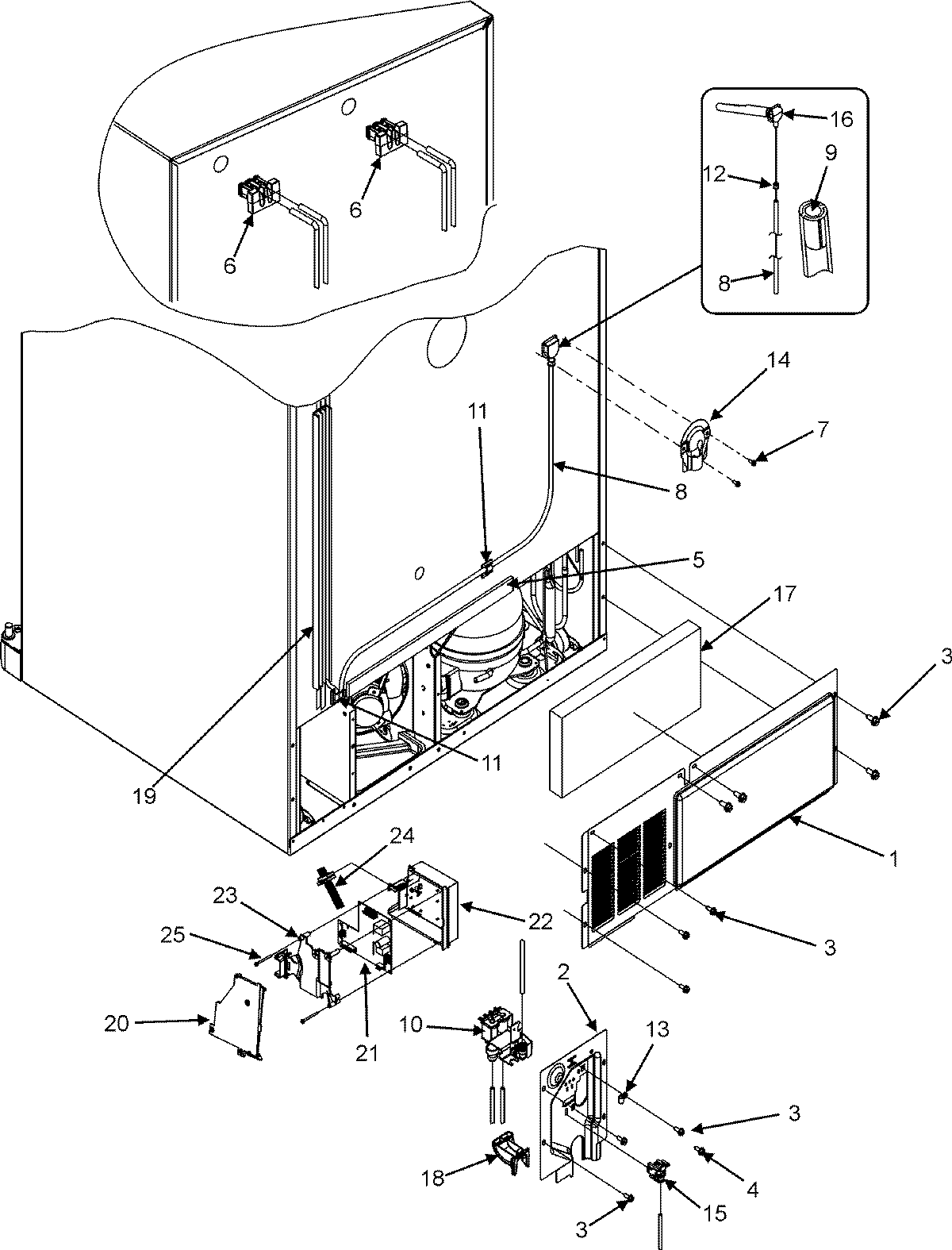

JFC2089HEP 01 – CABINET BACK

Products

Position	Product
1	MAY 67006101
1	BACK, MACH COMP
2	MAY 67004098
3	MAY M0238616
4	681390 Whirlpool Refrigerator Screw
5	Gasket
6	WP12777701 Whirlpool Refrigerator Filler Block
7	MAY M0211018
8	Tubing, Plastic
9	MAY A3223101
10	WP67006531 Whirlpool Water Inlet Valve
10	WP67005154 Whirlpool Water Valve
11	WPM0104106 Whirlpool Refrigerator Clip
12	Clip
13	W10833902 Whirlpool Refrigerator Clamp
14	COVER, WATER LINE
15	MAY 67004701
16	ELBOW, FILL TUBE
17	67003796 Whirlpool Refrigerator Fiber Acoustic
18	12831101 Whirlpool Refrigerator Tube Clamp
19	TRACK, WATERLINE
20	MAY 67005332
20	MAY 67005421
21	MAY 12002610
21	MAY 12782025
22	MAY 67004969
23	MAY 67005418
24	67005419 Whirlpool Refrigerator HV Board Harness
25	MAY 67005420
26	WP67006506 Whirlpool Refrigerator Power Cord
