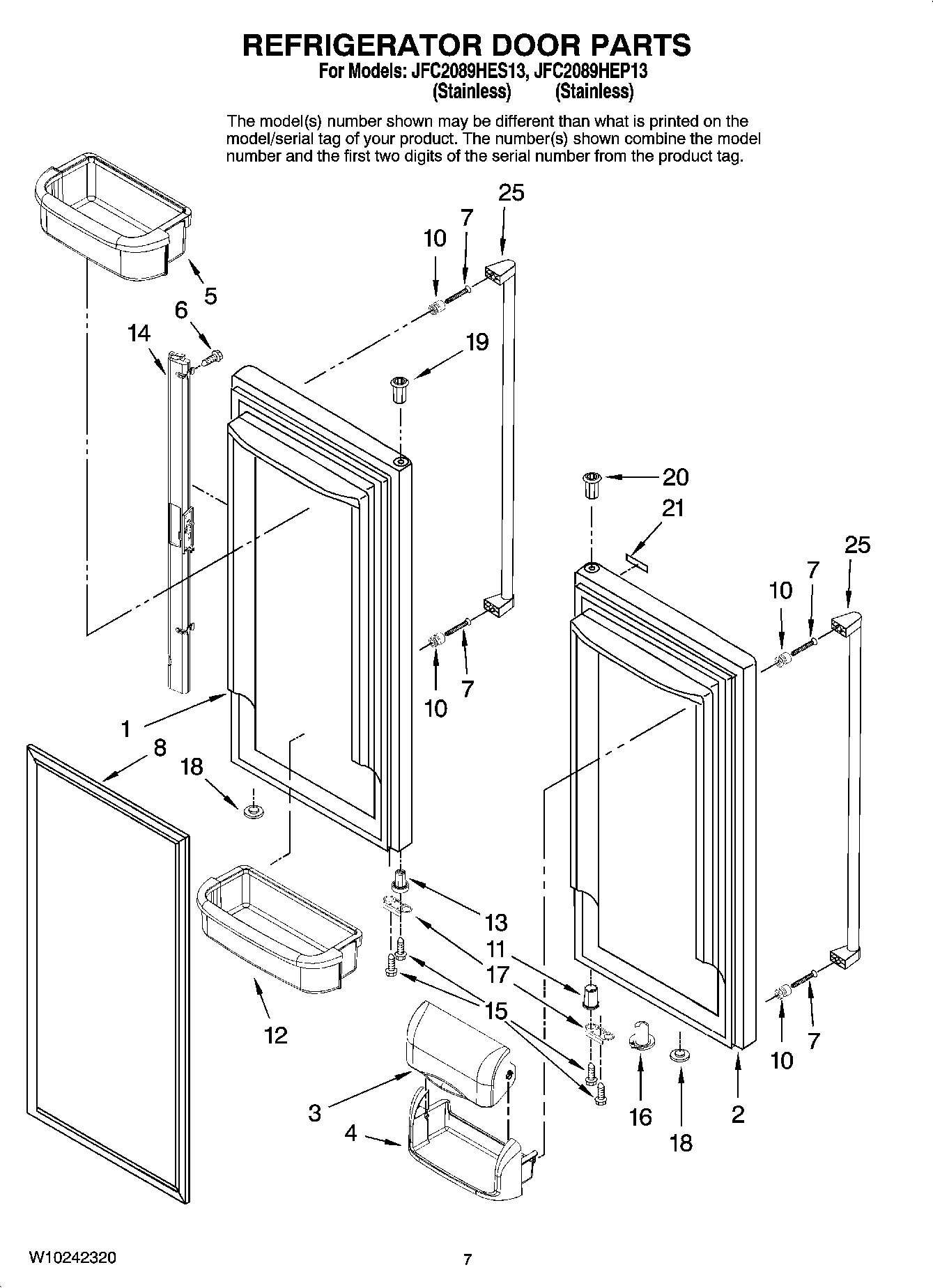

JFC2089HEP13 04 – REFRIGERATOR DOOR PARTS

JFC2089HEP13 04 – REFRIGERATOR DOOR PARTS

Written by

in

JFC2089HEP13 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 13024033SQ
2MAY 13024031SQ
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
567004748 Whirlpool Refrigerator Door Bucket
6MAY 67006786
7SCREW, HANDLE
8MAY 12723206B
10MAY 67006109
11WP67002731 Whirlpool Refrigerator Door Bushing
1267004749 Whirlpool Refrigerator Door Shelf Gallon Bin
13WP67002721 Whirlpool Refrigerator Door Bushing
14WP12722803B Whirlpool Door Guide
15WP98165 Whirlpool Screw
16WP67003639 Whirlpool Refrigerator Closer
17W11708403 Whirlpool Door Stop
1867004838 Whirlpool Refrigerator Button Vent Plug
19BUSHING, DOOR (BLK)
2067004978 Whirlpool Refrigerator Black Door Bushing
2112848704 Whirlpool Refrigerator Nameplate
25Handle, Door (Stainless)
25WP12859109 Whirlpool Door Handle
