JFC2089HES 02 – COMPRESSOR

JFC2089HES 02 – COMPRESSOR

Written by

in

JFC2089HES 02 – COMPRESSOR

Products

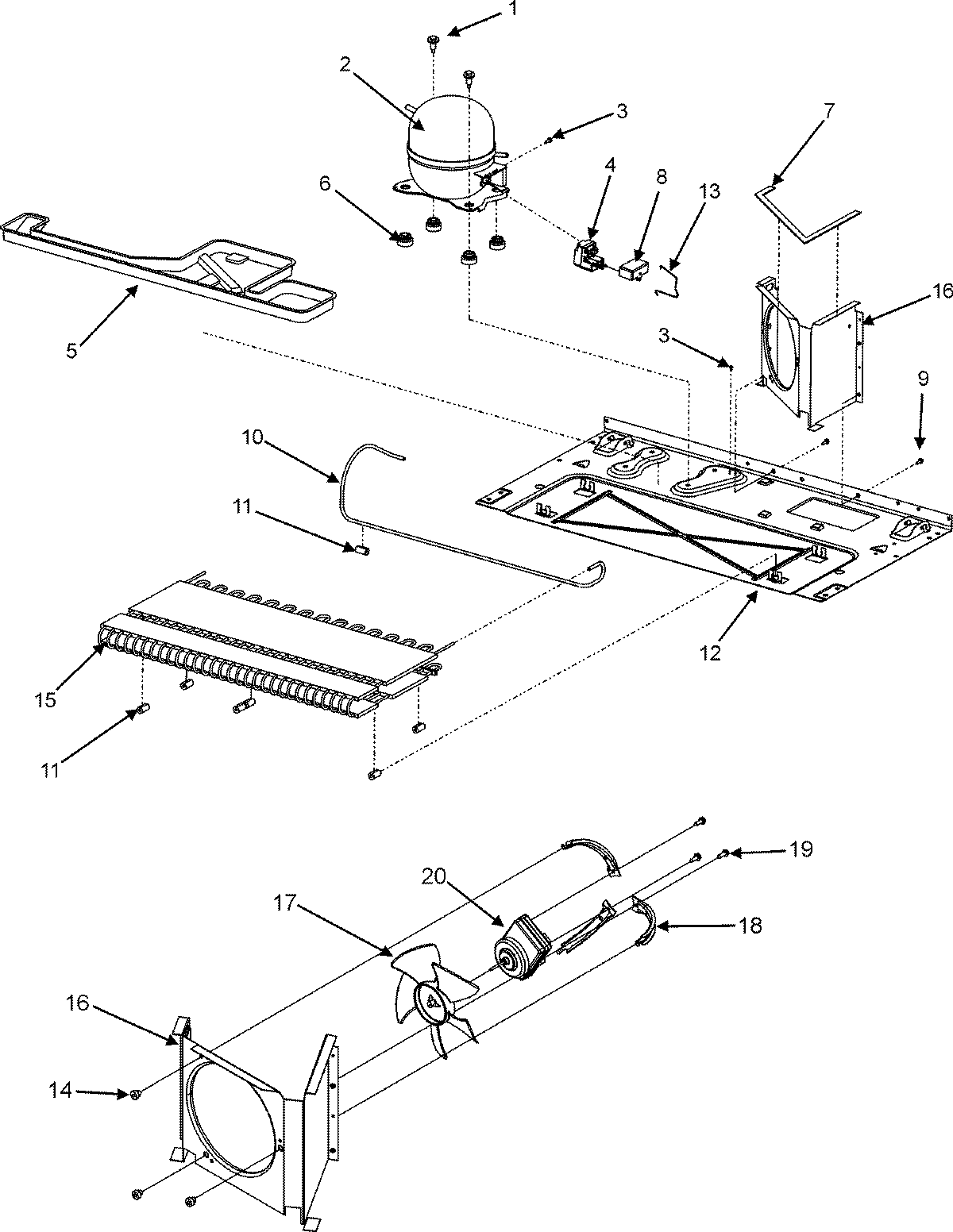

PositionProduct
1MAY M0221523
2Compressor (Includes Items 11, 12, 17, 19, 27 & 35)
2W10160407 Whirlpool Refrigerator Compressor
3MAY M0231604
4W10613606 Whirlpool Refrigerator Start Device Relay Overload
5WP12579803 Whirlpool Refrigerator Drain Pan
667003493 Whirlpool Refrigerator Compressor Grommet
7WP854334 Whirlpool Air Conditioner Sealing Strip
8CAPACITOR
9MAY M0238616
10MAY 67004700
1167005680 Whirlpool Refrigerator Condenser Grommet
12MAY 67001512
13MAY 12576801
14GROMMET, BRACKET
15WP67006131 Whirlpool Refrigerator Condenser
16SHROUD, CONDENSER FAN
17W10156818 Whirlpool Refrigerator Fan Blade
18MAY 67004953
19WP67004954 Whirlpool Refrigerator Screw
20MAY 67004432
21HARNESS, MC
