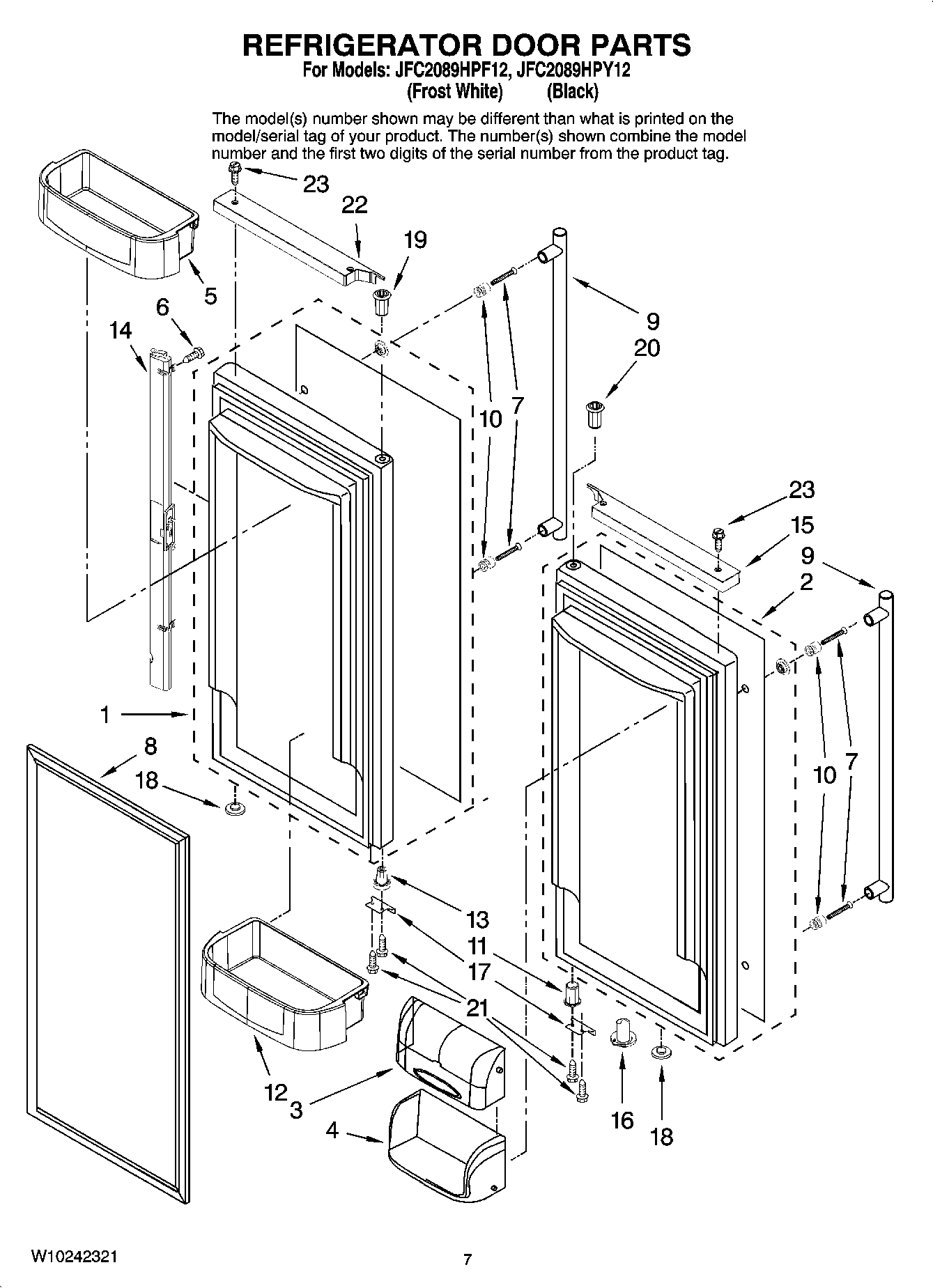

JFC2089HPF12 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY W10133892
1	Door, Left (White)
2	MAY W10133895
2	Door, Right (White)
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	67004748 Whirlpool Refrigerator Door Bucket
6	MAY 67006786
7	SCREW, HANDLE
8	MAY 12723206B
8	Gasket, Door (2) (White)
9	Handle, Door (Stainless)
10	MAY 67006109
11	WP67002731 Whirlpool Refrigerator Door Bushing
11	12028601W Whirlpool Refrigerator Hinge Bushing
12	67004749 Whirlpool Refrigerator Door Shelf Gallon Bin
13	WP67002721 Whirlpool Refrigerator Door Bushing
13	67002722 Whirlpool Refrigerator White Door Bushing
14	RAIL-MULLN WHITE
14	WP12722803B Whirlpool Door Guide
15	Extension, Door (Right) (White)
15	MAY 67005569
16	WP67003638 Whirlpool Closing Cam
16	WP67003639 Whirlpool Refrigerator Closer
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
18	67004838 Whirlpool Refrigerator Button Vent Plug
18	10712401 Whirlpool Refrigerator Vent Plug (White)
19	BUSHING, DOOR (BLK)
19	MAY 8208313
20	67004978 Whirlpool Refrigerator Black Door Bushing
20	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
21	WP98165 Whirlpool Screw
22	Extension, Door (Left-Black) (Black)
22	Extension, Door (Left-Black) (White)
23	SCREW
