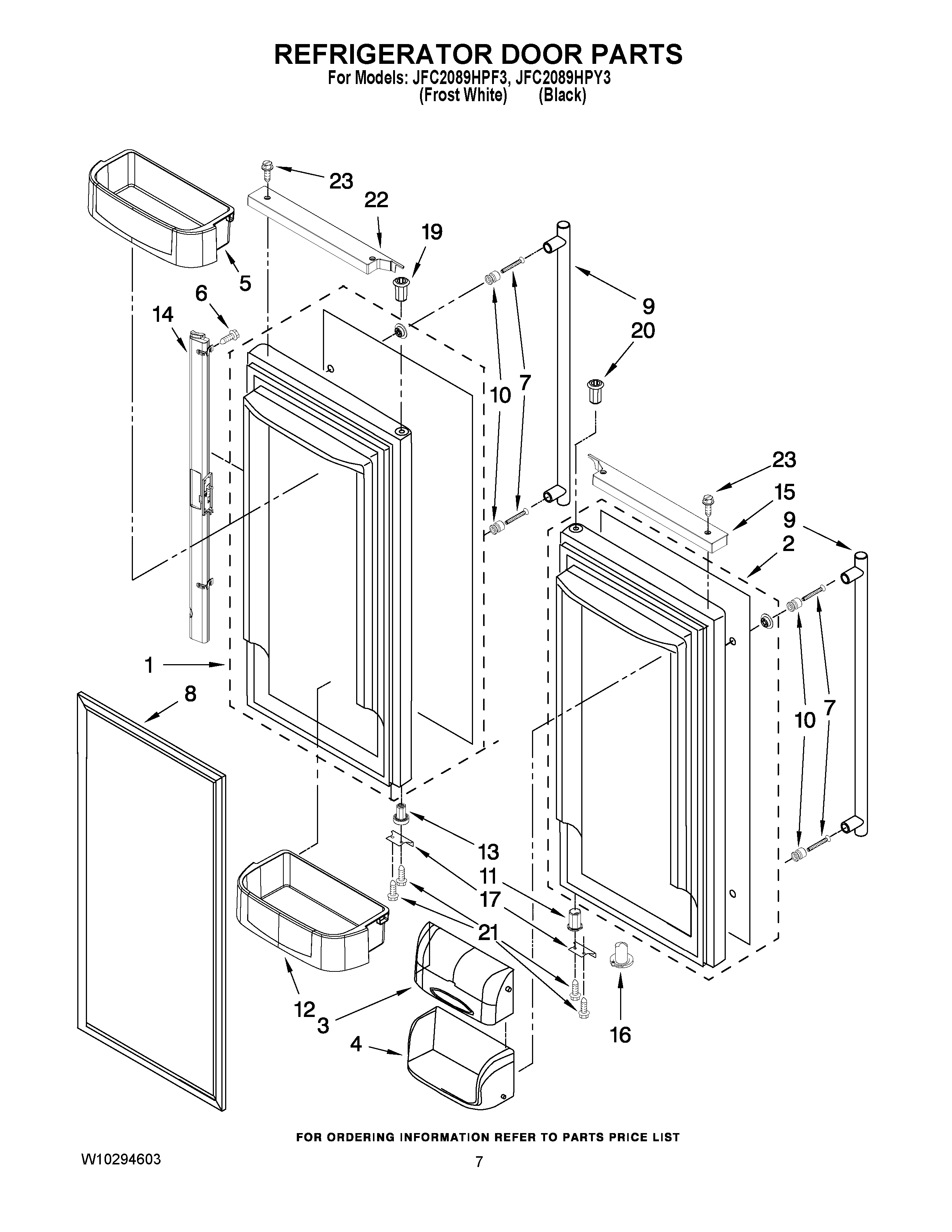

JFC2089HPF3 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 12894208YQ
1	MAY 12894208F
2	MAY 12894207YQ
2	MAY 12894207F
3	MAY 12804701SP
4	MAY 12369502SP
5	BIN, SHELF (3)
6	MAY 12990204
7	Screw, Handle
8	Gasket, Door (2) (White)
8	MAY W10163895
9	HANDLE (STAINLESS STEEL)
10	MAY 12945201
11	BUSHING, DOOR (BOTTOM RIGHT) (BLACK)
11	BUSHING, DOOR (BOTTOM RIGHT)
12	MAY 12840002
13	BUSHING, DOOR (BOTTOM LEFT)
13	BUSHING, DOOR (BOTTOM LEFT) (BLACK)
14	MAY 12722803B
14	MAY 12722803W
15	MAY 12881001W
15	MAY 12881001B
16	MAY 12028505W
16	MAY 12028505B
17	Stop, Door (Black)
17	MAY 10447111
19	BUSHING, DOOR UPPER LEFT (WHITE)
19	BUSHING, DOOR (BLK)
20	BUSHING, DOOR UPPER RIGHT (WHITE)
20	Bushing (Black)
21	MAY 12990504
22	MAY 12881002B
22	MAY 12881002W
23	MAY 12990509
