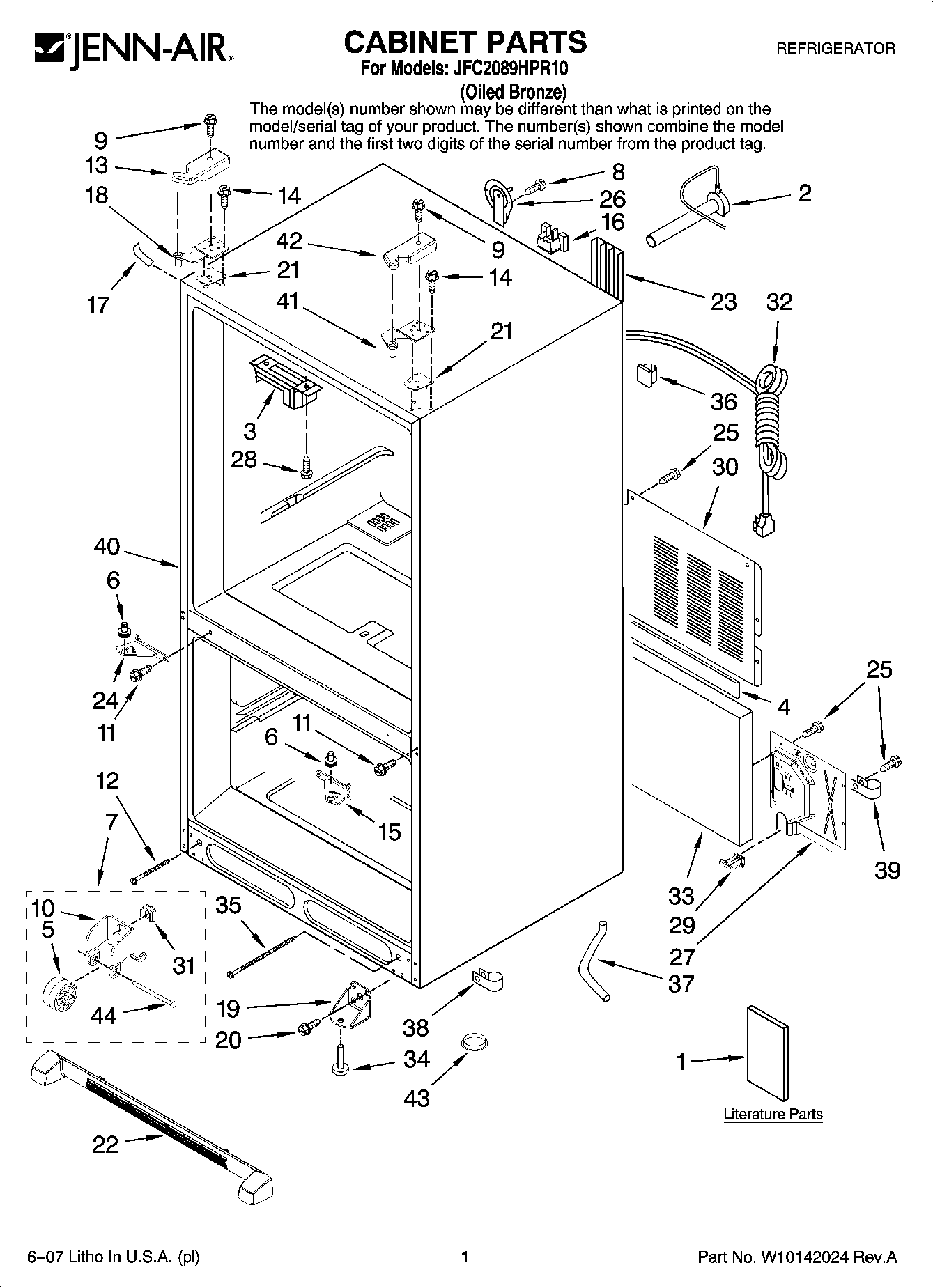

JFC2089HPR10 01 – CABINET PARTS

Products

PositionProduct
1MAY 67005575
1MAY 67006616
1MANUAL, USE & CARE
2MAY W10137519
3WP67003405 Whirlpool Pivot Block
4Gasket
5WP10450603 Whirlpool Refrigerator Roller
6WP67006642 Whirlpool Refrigerator Pin
7Roller Assy.(Rear)
8WP98165 Whirlpool Screw
9WP8281196 Whirlpool Screw
1012456801V Whirlpool Refrigerator Bracket
11WP67006380 Whirlpool Screw
1271003131 Whirlpool Oven Screw
13COVER, TOP HINGE (LT-BLK)
14WP489349 Whirlpool Refrigerator Screw
16WP12777701 Whirlpool Refrigerator Filler Block
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18Hinge, Top Left
1912906303WD Whirlpool Refrigerator Bracket
20MAY 67006564
21MAY 12579702
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23TRACK, WATERLINE
24HINGE, CENTER (BLK)
25Screw (10)
26COVER, WATER LINE
27MAY 67004098
28WP7101P126-60 Whirlpool Screw
2912831101 Whirlpool Refrigerator Tube Clamp
30MAY 67006101
31MAY M0286708
32WP67006506 Whirlpool Refrigerator Power Cord
3367003796 Whirlpool Refrigerator Fiber Acoustic
34W11177593 Whirlpool Leveling Feet
35MAY 67006697
36WPM0104106 Whirlpool Refrigerator Clip
37MAY 67001066
3867001067 Whirlpool Refrigerator Drain Tube Clip
39W10833902 Whirlpool Refrigerator Clamp
40CABLE STRAP-HARNESS TO BASE
41Hinge, Top Right
42MAY 12629801B
43A3076901 Whirlpool Refrigerator Plug
44MAY M1205302
