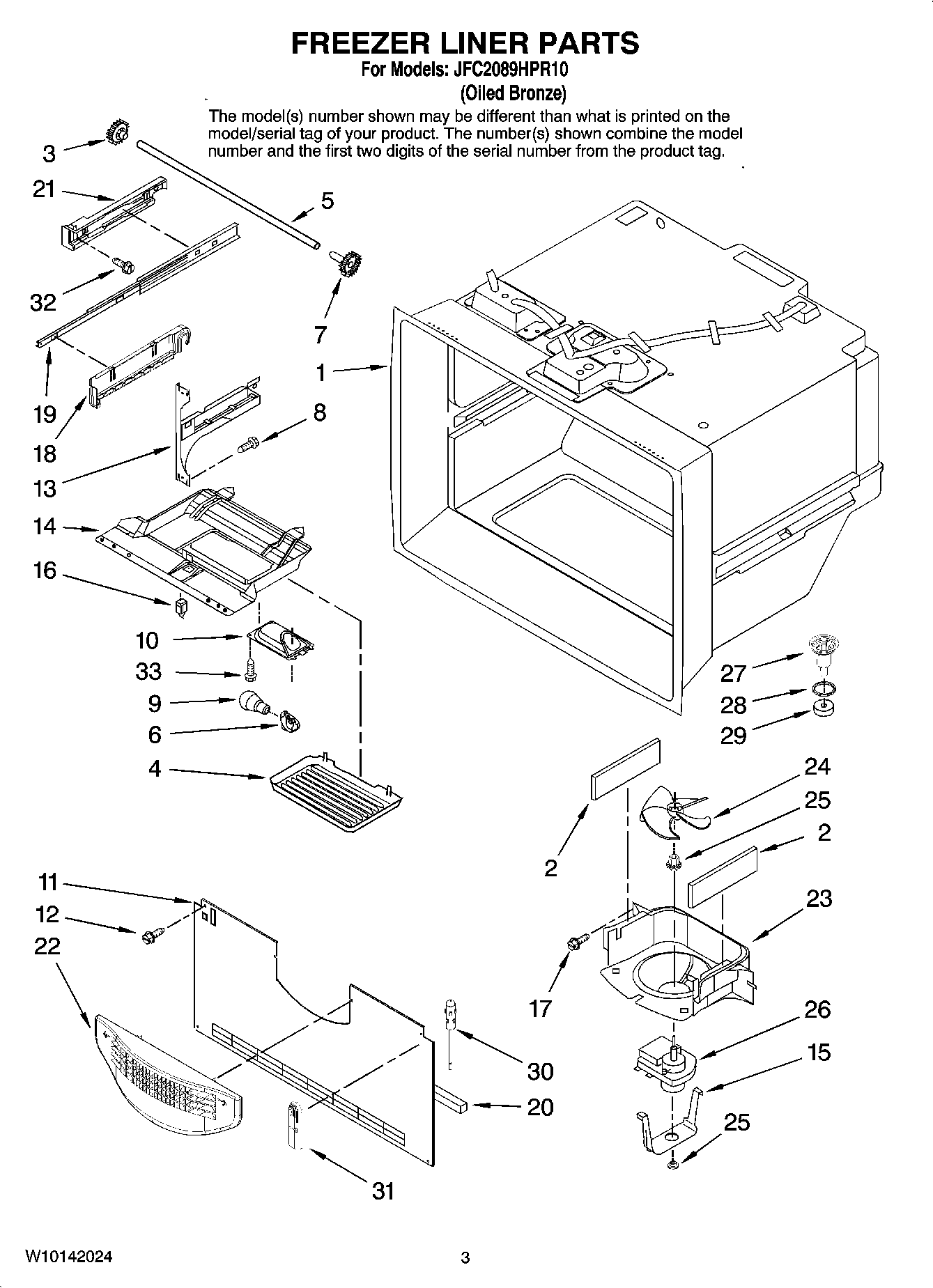

JFC2089HPR10 02 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY 67006094
2	W10856123 Whirlpool Refrigerator Gasket
4	MAY 67003905
5	W11028221 Whirlpool Refrigerator Shaft
6	W11447232 Whirlpool Refrigerator Socket
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	Screw (8)
9	RANGE ONLY 40W 120V APPL BULB
10	MAY 67001035
11	MAY 67005873
12	Screw (10)
13	WPW10330993 Whirlpool Refrigerator Bracket
13	WPW10330991 Whirlpool Refrigerator Bracket
14	67003906 Whirlpool Refrigerator Control Module
15	MAY 67005633
16	MAY 67005653
17	WP98165 Whirlpool Screw
18	W10251557 Whirlpool Refrigerator Bracket
18	MAY 67004728
19	MAY 13031602
20	W11159728 Whirlpool Refrigerator Gasket
21	W10284690 Whirlpool Refrigerator Bracket
21	MAY 67004972
22	MAY 13024802
24	MAY 12217201
25	WP67002780 Whirlpool Refrigerator Grommet
26	WPW10128551 Whirlpool Evaporator Fan Motor
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	12002355 Whirlpool Refrigerator Thermistor Kit
31	WP67003924 Whirlpool Refrigerator Cover
32	Screw (6)
33	MAY 67006530
