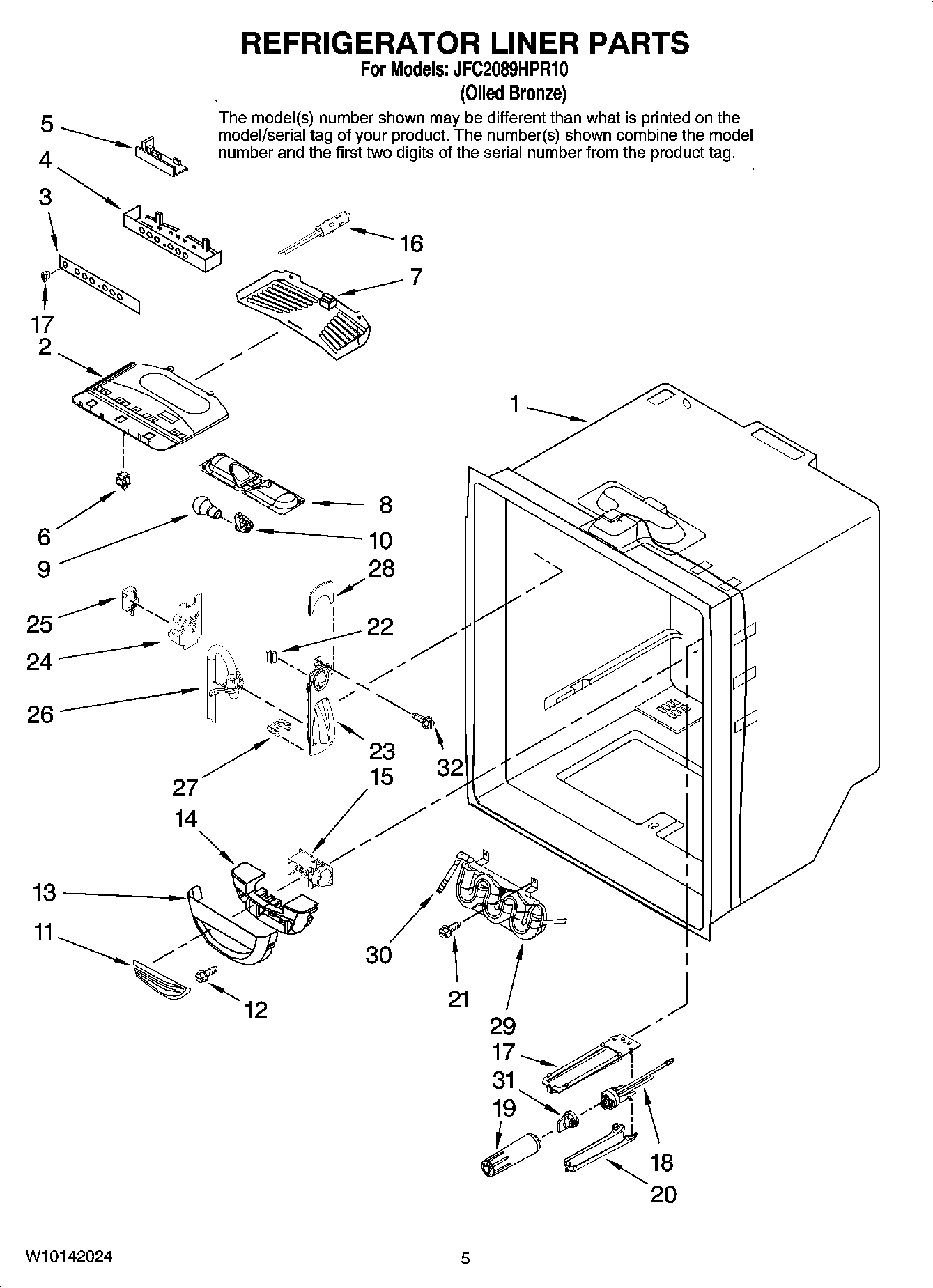

JFC2089HPR10 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	MAY 67005417
2	MAY 67004078
3	KEYBOARD
4	W11416469 Whirlpool Refrigerator Housing
5	WPW10207861-includeCORE Whirlpool WPW10207861 Refrigerator Electronic Control Board + Core
6	Switch, Light (2)
7	W11284721 Whirlpool Refrigerator Cover
8	12806601 Whirlpool Refrigerator Light Housing
9	RANGE ONLY 40W 120V APPL BULB
10	W11447232 Whirlpool Refrigerator Socket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	MAY 67006602
13	WP12806701 Whirlpool Refrigerator Box Cover
14	MAY 67006604
15	WPW10196393 Whirlpool Control Damper
16	12002355 Whirlpool Refrigerator Thermistor Kit
17	PLATE-FIL
18	WP67006524 Whirlpool Refrigerator Housing
19	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
20	WP12568001 Whirlpool Filter Cover
21	WP98165 Whirlpool Screw
22	Clip, Facade (2)
23	FACADE, DISPENSER
24	12707303SP Whirlpool Refrigerator Plate
25	WP12575501 Whirlpool Refrigerator Micro Switch
26	MAY 67003728
27	67002816 Whirlpool Refrigerator Waterline Clip
28	W11519867 Whirlpool Refrigerator Cover
29	W11361728 Whirlpool Reservoir Assembly
30	WP2300868 Whirlpool Refrigerator Fitting
31	TUNNEL, CONTROL HOUSING
32	MAY 67006400
