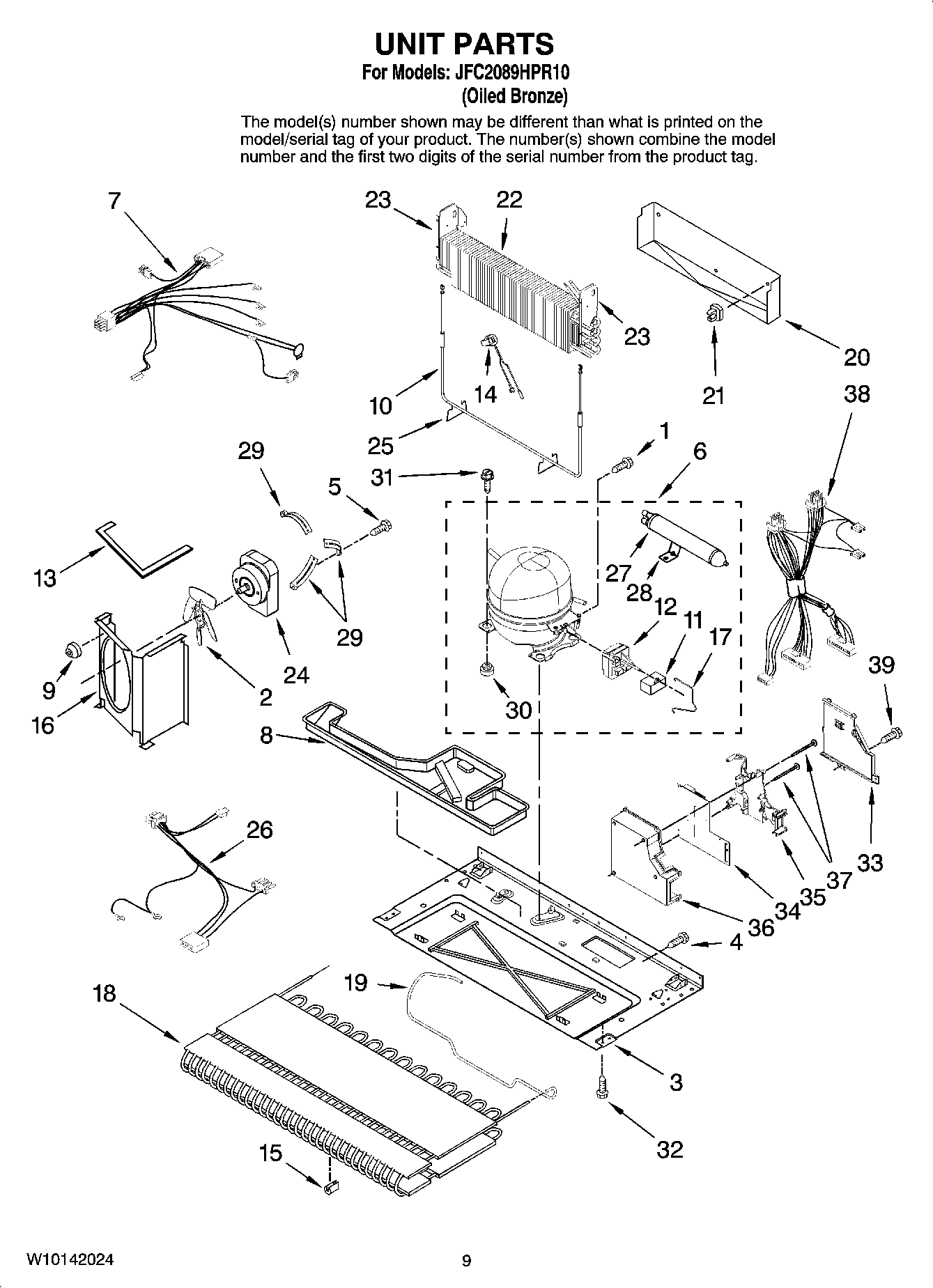

JFC2089HPR10 05 – UNIT PARTS

JFC2089HPR10 05 – UNIT PARTS

Written by

in

JFC2089HPR10 05 – UNIT PARTS

Products

PositionProduct
NIMAY 876764
NIValve, Access (3/4“)
NIValve, Access (5/8“)
NIValve, Access (1/2“)
NIVALVE, ACCESS (3/8“)
NIValve, Access (5/16“)
NIVALVE, ACCESS (1/4“)
NI12658531CQ Whirlpool Refrigerator DOR-FIP Board
1MAY 67006433
2W10156818 Whirlpool Refrigerator Fan Blade
3MAY 67005889
4Screw (10)
5WP67004954 Whirlpool Refrigerator Screw
6W10160407 Whirlpool Refrigerator Compressor
7MAY 67005574
8WP12579803 Whirlpool Refrigerator Drain Pan
9GROMMET, BRACKET
10WP67002493 Whirlpool Refrigerator Defrost Heater
11Capacitor
12W10613606 Whirlpool Refrigerator Start Device Relay Overload
13WP854334 Whirlpool Air Conditioner Sealing Strip
14WP67003426 Whirlpool Refrigerator Thermostat
1567005680 Whirlpool Refrigerator Condenser Grommet
16SHROUD, COND FAN
17MAY 67007052
18WP67006131 Whirlpool Refrigerator Condenser
19MAY 67004700
20MAY 67002490
21MAY 10623002
2212002041 Whirlpool Refrigerator Evaporator Replacement Kit
23MAY 67001084
23MAY 67001083
24MAY 67004432
25W11673433 Whirlpool Clip
26HARNESS, MC
27DRIER
28MAY 10547003
29MAY 67004953
3067003493 Whirlpool Refrigerator Compressor Grommet
31MAY 67006432
32Screw (4)
33MAY 67005421
34MAY 12782025
35MAY 67005418
36MAY 67004969
37MAY 67006550
3867005419 Whirlpool Refrigerator HV Board Harness
39MAY 67006615
