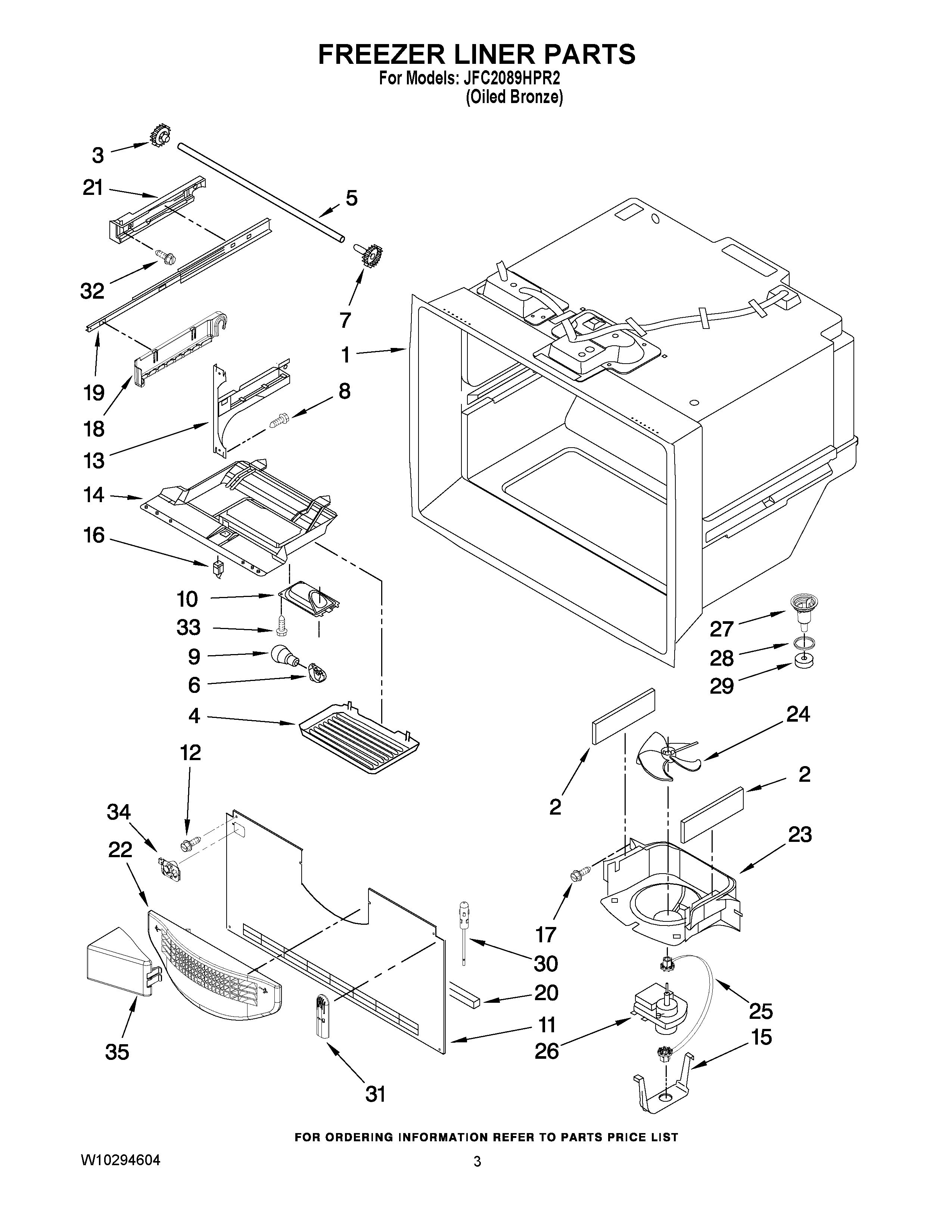

JFC2089HPR2 02 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY W10235312
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
4	MAY 12804901
5	SHAFT
6	Socket, Light
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	Screw (8)
9	Bulb, Light (2)
10	MAY 12476401V
11	MAY 12226112
12	SCREW (10)
13	MAY W10119295
13	MAY W10119064
14	MODULE, FZ CONTROL
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12990504
18	CRADLE, BASKET (RIGHT)
18	CRADLE, BASKET (LEFT)
19	Slide, Drawer (2)
20	GASKET, BOTTOM
21	BRACKET, SLIDE (RIGHT)
21	BRACKET, SLIDE (LEFT)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	12002355 Whirlpool Refrigerator Thermistor Kit
31	MAY 12815301
32	Screw (6)
33	MAY 12991603V
34	MAY 12932103
35	MAY W10157765
