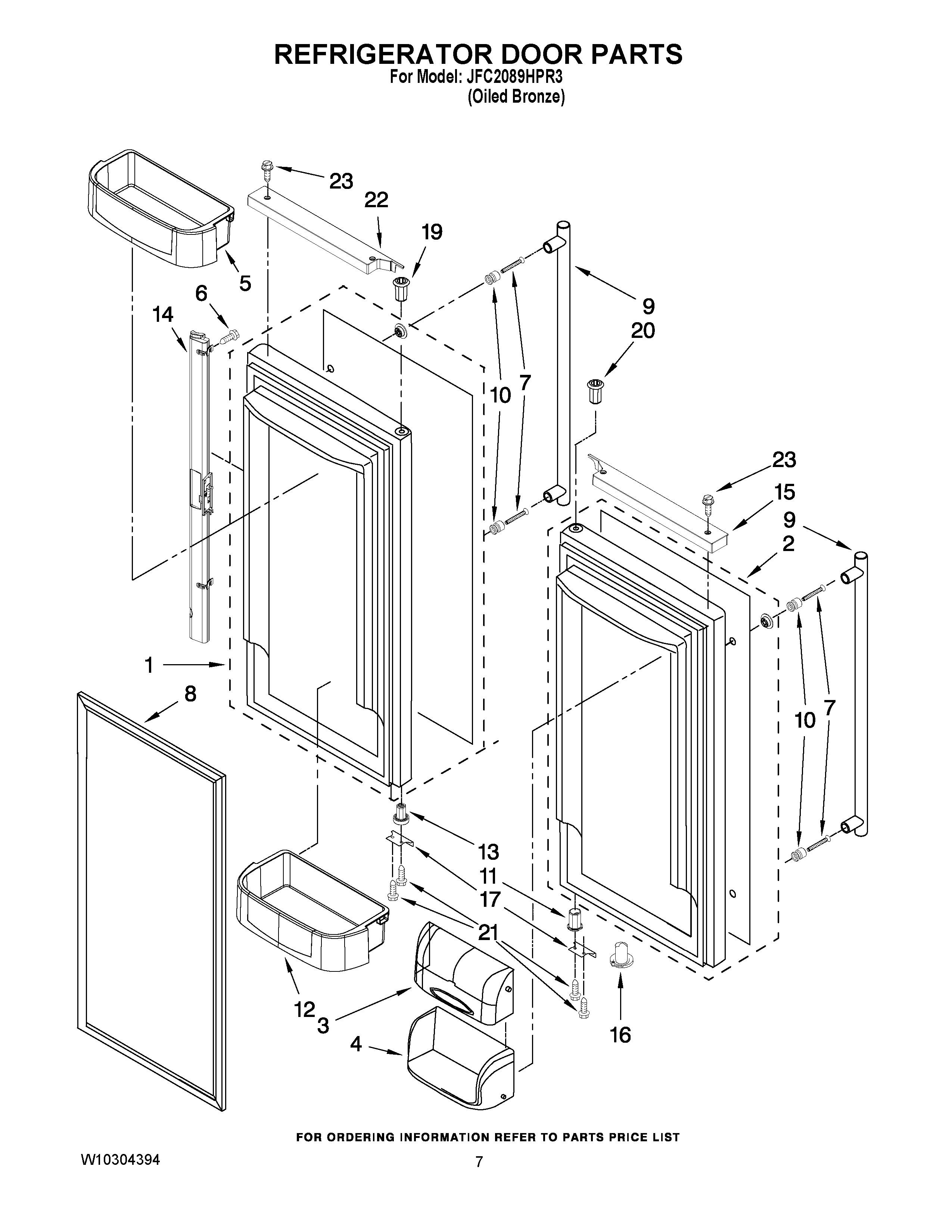

JFC2089HPR3 04 – REFRIGERATOR DOOR PARTS

JFC2089HPR3 04 – REFRIGERATOR DOOR PARTS

Written by

in

JFC2089HPR3 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 12894211RQ
2MAY 12894210RQ
3MAY 12804701SP
4MAY 12369502SP
5BIN, SHELF (3)
6MAY 12990204
7Screw, Handle
8MAY 12723206B
9HANDLE (STAINLESS STEEL)
10MAY 12945201
11BUSHING, DOOR (BOTTOM RIGHT) (BLACK)
12MAY 12840002
13BUSHING, DOOR (BOTTOM LEFT) (BLACK)
14MAY 12722803B
15MAY 12881001B
16MAY 12028505B
17Stop, Door (Black)
19BUSHING, DOOR (BLK)
20Bushing (Black)
21MAY 12990504
22MAY 12881002B
23MAY 12990509
