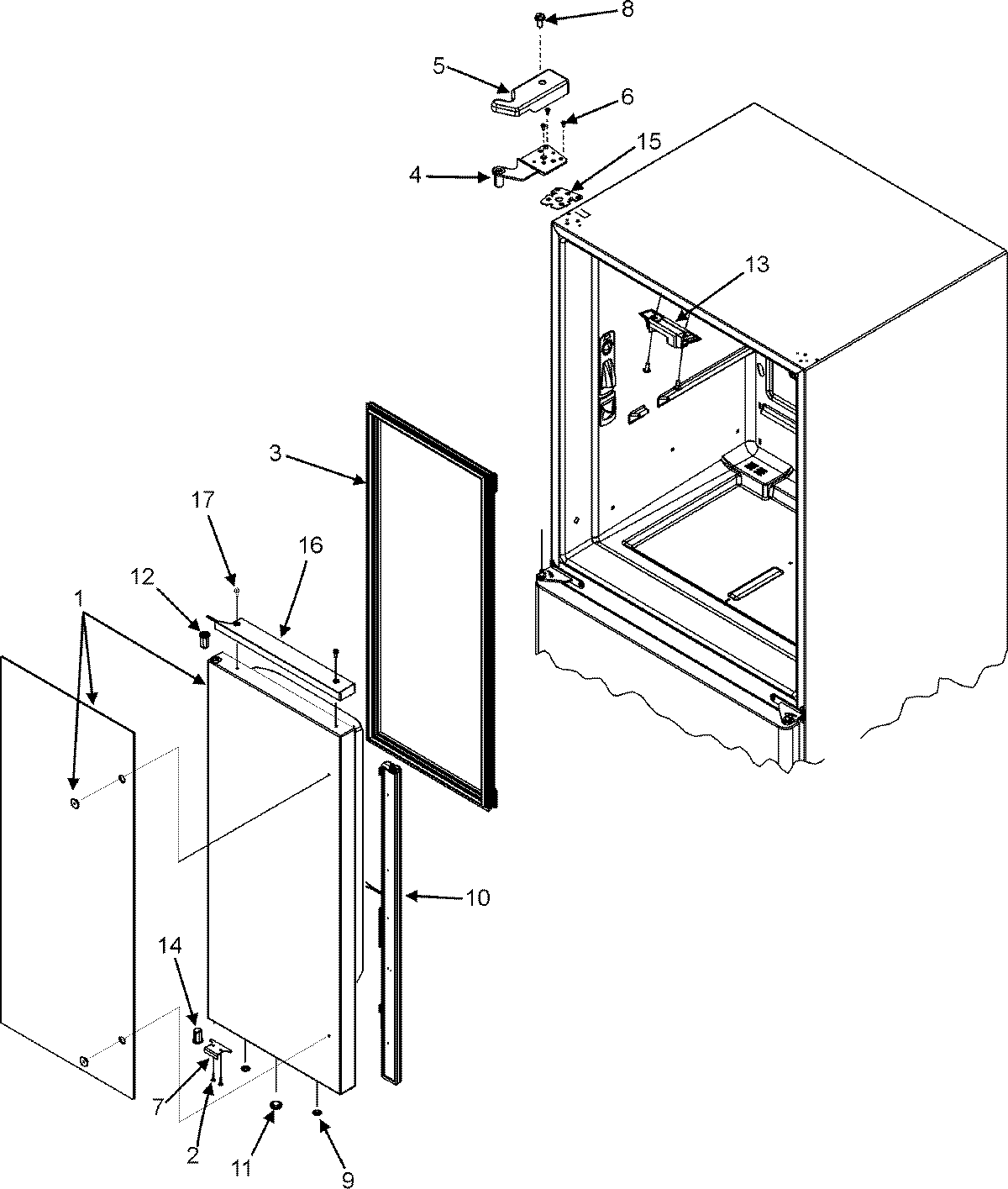

JFC2089HPY 10 – LEFT REFRIGERATOR DOOR

JFC2089HPY 10 – LEFT REFRIGERATOR DOOR

Written by

in

JFC2089HPY 10 – LEFT REFRIGERATOR DOOR

Products

PositionProduct
1MAY W10133892
1MAY 67005083
2MAY 67004822
3GASKET-FIP
412626911ED Whirlpool Refrigerator Door Hinge
5W10217485 Whirlpool Refrigerator Cover
6MAY M0238731
7W11708403 Whirlpool Door Stop
8WP8281196 Whirlpool Screw
967004838 Whirlpool Refrigerator Button Vent Plug
10MAY 67004639
10WP12722803B Whirlpool Door Guide
11MAY A3080001
12BUSHING, DOOR (BLK)
13WP67003405 Whirlpool Pivot Block
13MAY M0214931
14WP67002721 Whirlpool Refrigerator Door Bushing
15MAY 12579702
16Extension, Door (Left-Black) (Black)
17340184 Whirlpool Screw
