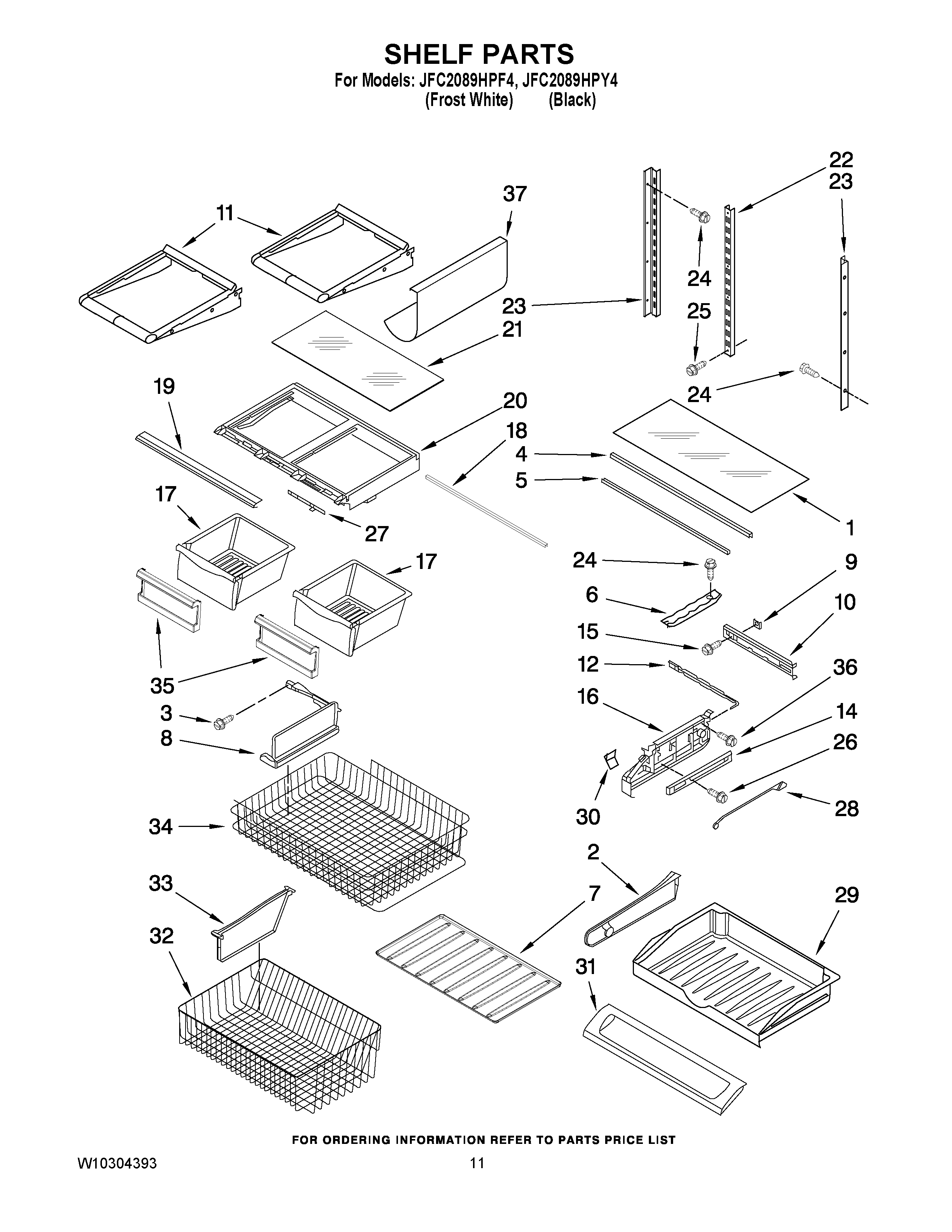

JFC2089HPY4 06 – SHELF PARTS
Written by
in
JFC2089HPY4 06 – SHELF PARTS
Products
Position
Product
2
DIVIDER, PANTRY DRAWER
3
MAY 12990601
4
MAY 12655902SP
5
MAY 12227305WD
6
TRACK, PANTRY
7
MAY 12727303
8
Divider, Upper Basket
9
MAY 12656901
10
MAY 12656202
11
SHELF, GLIDE (4)
12
SLIDE, TEMPERATURE
14
MAY 13058101V
16
Endcap, Pantry (Left)
16
Endcap, Pantry (Right)
17
Pan, Crisper (2)
18
Brace, Crisper
19
MAY W10231478
20
MAY 12531202SP
21
Glass, Crisper Cover
22
MAY W10273463
23
MAY W10251971
24
MAY 12990513
25
MAY 12990515
26
MAY 12990504
27
MAY 12530805SP
28
ROD, TEMPERATURE CONTROL
29
MAY 12655702
30
MAY 12655204V
31
DOOR, PANTRY DRAWER
32
MAY W10143564
33
MAY 12727202
34
MAY W10143526
35
HANDLE, CRISPER PAN
36
SCREW (2)
37
MAY 10448905
←
