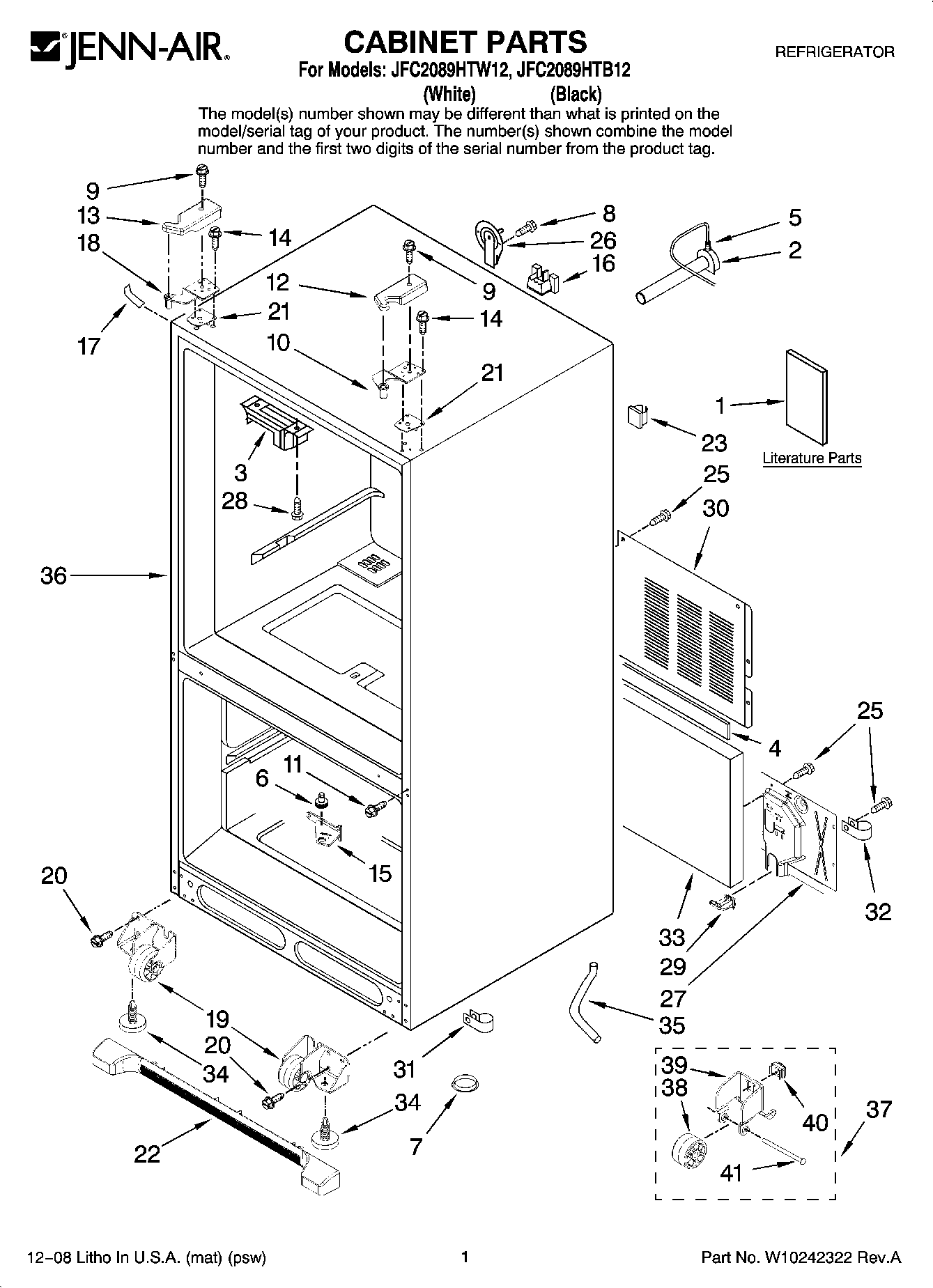

JFC2089HTB12 01 – CABINET PARTS

Products

Position	Product
1	MAY 67005707
1	MAY 67006616
1	Owners Manual
2	MAY W10137519
3	WP67003405 Whirlpool Pivot Block
4	Gasket
5	Clip
6	WP67006642 Whirlpool Refrigerator Pin
7	A3076901 Whirlpool Refrigerator Plug
8	WP98165 Whirlpool Screw
9	WP8281196 Whirlpool Screw
10	Hinge, Top Right
11	WP67006380 Whirlpool Screw
12	Cover, Right Hinge (White)
12	MAY 12629801B
13	MAY 67007156
13	COVER, TOP HINGE (LT-BLK)
14	WP489349 Whirlpool Refrigerator Screw
15	HINGE, CENTER (BLK)
15	MAY 67002959
16	WP12777701 Whirlpool Refrigerator Filler Block
17	67003484 Whirlpool Refrigerator White Corner Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	Hinge, Top Left
19	ROLLER ASSY.(FRONT) (LEFT)
19	ROLLER ASSY.(FRONT) (RIGHT)
20	MAY 67006564
21	MAY 12579702
22	MAY W10131133
22	Grille Assembly (Includes Clips) (Black)
23	WPM0104106 Whirlpool Refrigerator Clip
25	Screw (10)
26	COVER, WATER LINE
27	MAY 67004098
28	WP7101P126-60 Whirlpool Screw
29	12831101 Whirlpool Refrigerator Tube Clamp
30	MAY 67006101
31	67001067 Whirlpool Refrigerator Drain Tube Clip
32	W10833902 Whirlpool Refrigerator Clamp
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	Brake, Foot
35	MAY 67001066
37	Roller Assy.(Rear)
38	WP10450603 Whirlpool Refrigerator Roller
39	12456801V Whirlpool Refrigerator Bracket
40	MAY M0286708
41	MAY M1205302
