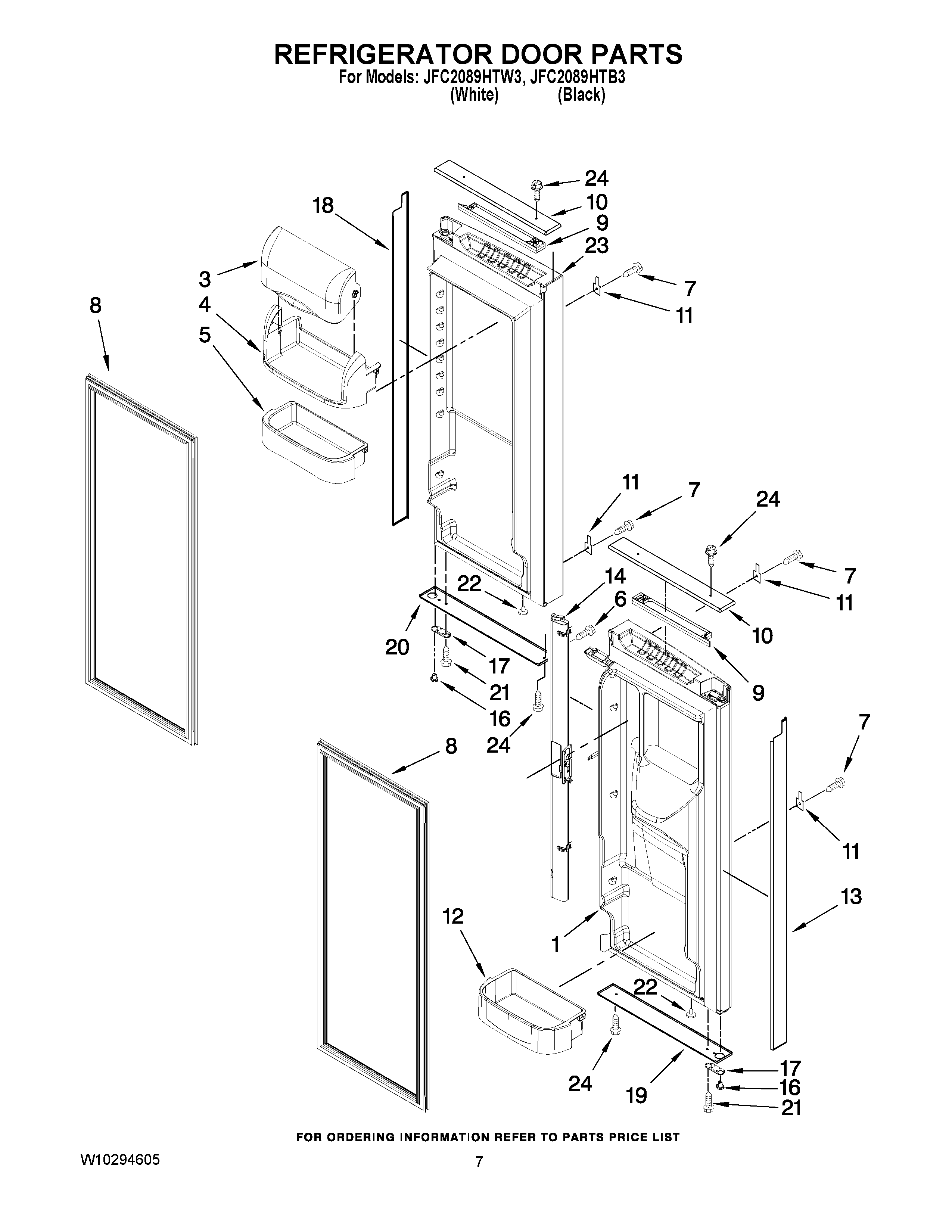

JFC2089HTB3 04 – REFRIGERATOR DOOR PARTS
Written by
in
JFC2089HTB3 04 – REFRIGERATOR DOOR PARTS
Products
Position
Product
1
MAY 13024012WQ
1
MAY 13024012B
3
MAY 12804701SP
4
MAY 12369502SP
5
BIN, SHELF (3)
6
MAY 12990204
7
MAY 12992701
8
MAY W10163895
8
Gasket, Door (2) (White)
9
MAY 12752801B
9
MAY 12752801W
10
MAY 12752907S1
10
MAY 12752908S1
11
MAY 12315104
12
MAY 12840002
13
MAY 12694502S1
14
MAY 12722803B
14
MAY 12722803W
16
MAY 12028505W
16
MAY 12028505B
17
Stop, Door (Black)
17
MAY 10447111
18
MAY 12694501S1
19
MAY 12752909S1
20
MAY 12752910S1
21
Screw (8)
22
BUSHING, DOOR (BOTTOM LEFT) (BLACK)
22
BUSHING, DOOR (BOTTOM LEFT)
23
MAY 13024011B
23
MAY 13024011W
24
MAY 12990504
←
