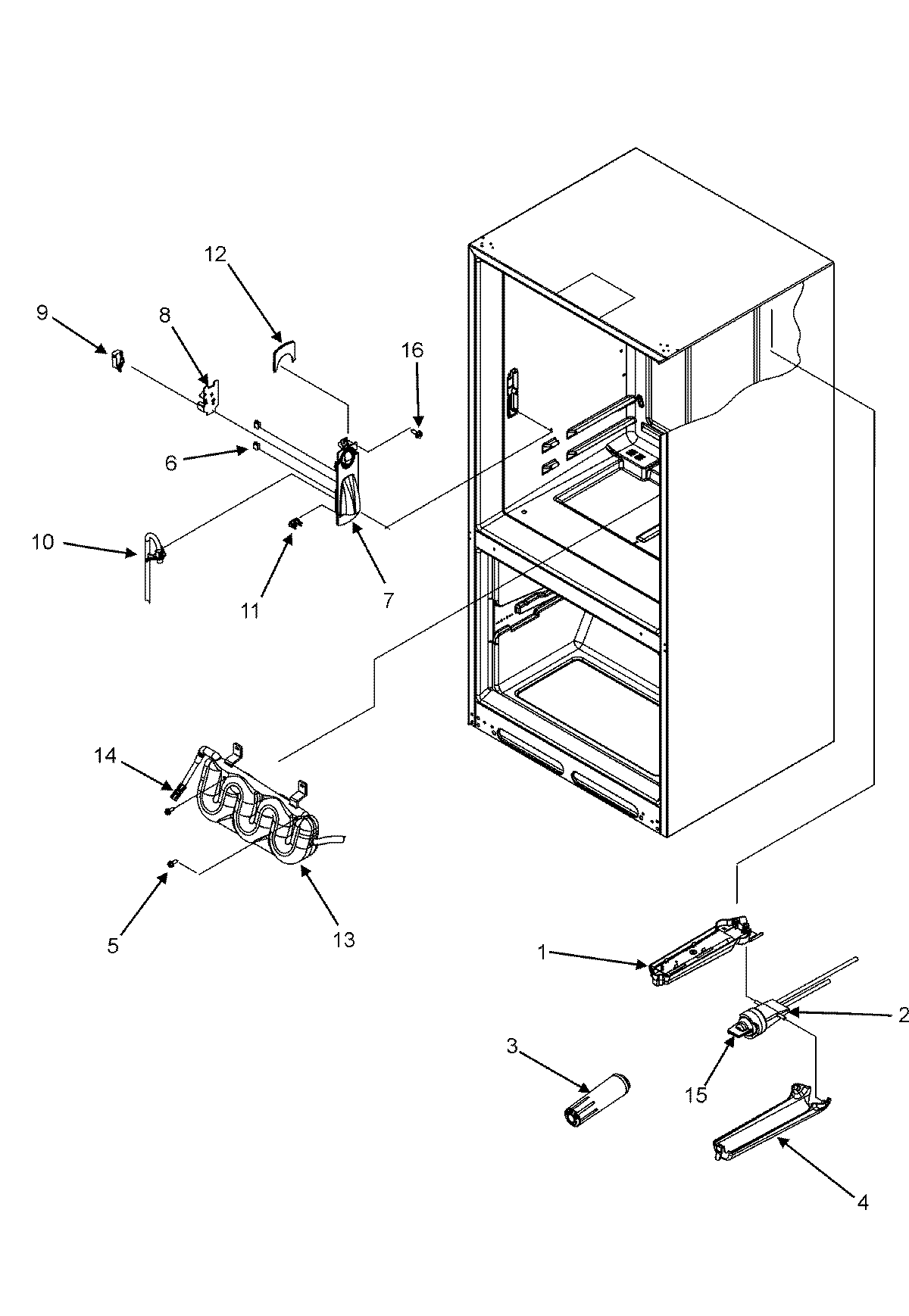

JFC2089HTW 16 – WATER DISPENSER/WATER TANK/WATER FILTER

Products

Position	Product
1	PLATE-FIL
2	WP67004106 Whirlpool Water Filter Housing
2	WP67006524 Whirlpool Refrigerator Housing
3	FILTER, WATER SINGLE
4	WP12568001 Whirlpool Filter Cover
5	MAY M0211018
6	Clip, Facade (2)
7	FACADE, DISPENSER
8	12707303SP Whirlpool Refrigerator Plate
9	WP12575501 Whirlpool Refrigerator Micro Switch
10	MAY 67003728
11	67002816 Whirlpool Refrigerator Waterline Clip
12	W11519867 Whirlpool Refrigerator Cover
13	W11361728 Whirlpool Reservoir Assembly
14	WP2300868 Whirlpool Refrigerator Fitting
15	MAY 12664501
16	SCREW, SM
