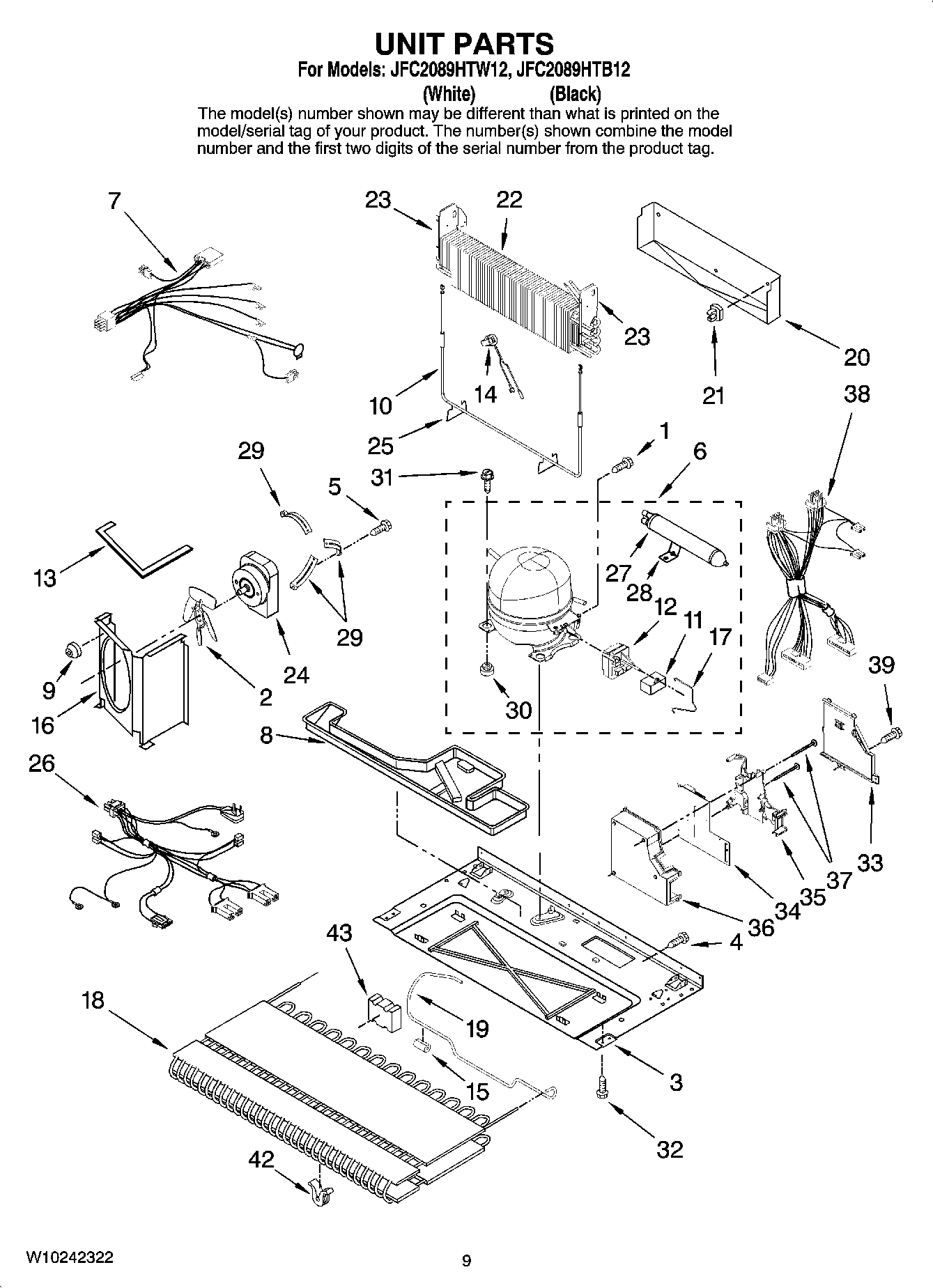

JFC2089HTW12 05 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY 67006433
2	MAY W10162928
3	MAY 67005889
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	COMPRESSOR-TPG1370YXA(BM)
7	HARNESS, EVAP HEATER
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	GROMMET, BRACKET
10	WP67002493 Whirlpool Refrigerator Defrost Heater
11	Capacitor
12	W10613606 Whirlpool Refrigerator Start Device Relay Overload
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Shroud, Condenser
17	MAY 67007052
18	WP67006131 Whirlpool Refrigerator Condenser
19	MAY 67004700
20	MAY 67002490
21	MAY 10623002
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	MAY 67001084
23	MAY 67001083
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	Harness, Unit with Power Cord
27	Drier
28	MAY 10547003
29	MAY 67004953
30	MAY W10169124
31	MAY 67006432
32	Screw (4)
33	MAY 67005421
34	MAY W10173398
35	MAY 67005418
36	MAY 67004969
37	MAY 67006550
38	67005419 Whirlpool Refrigerator HV Board Harness
39	MAY 67006615
42	GROMMET, COND (4)
43	MAY 67005491
