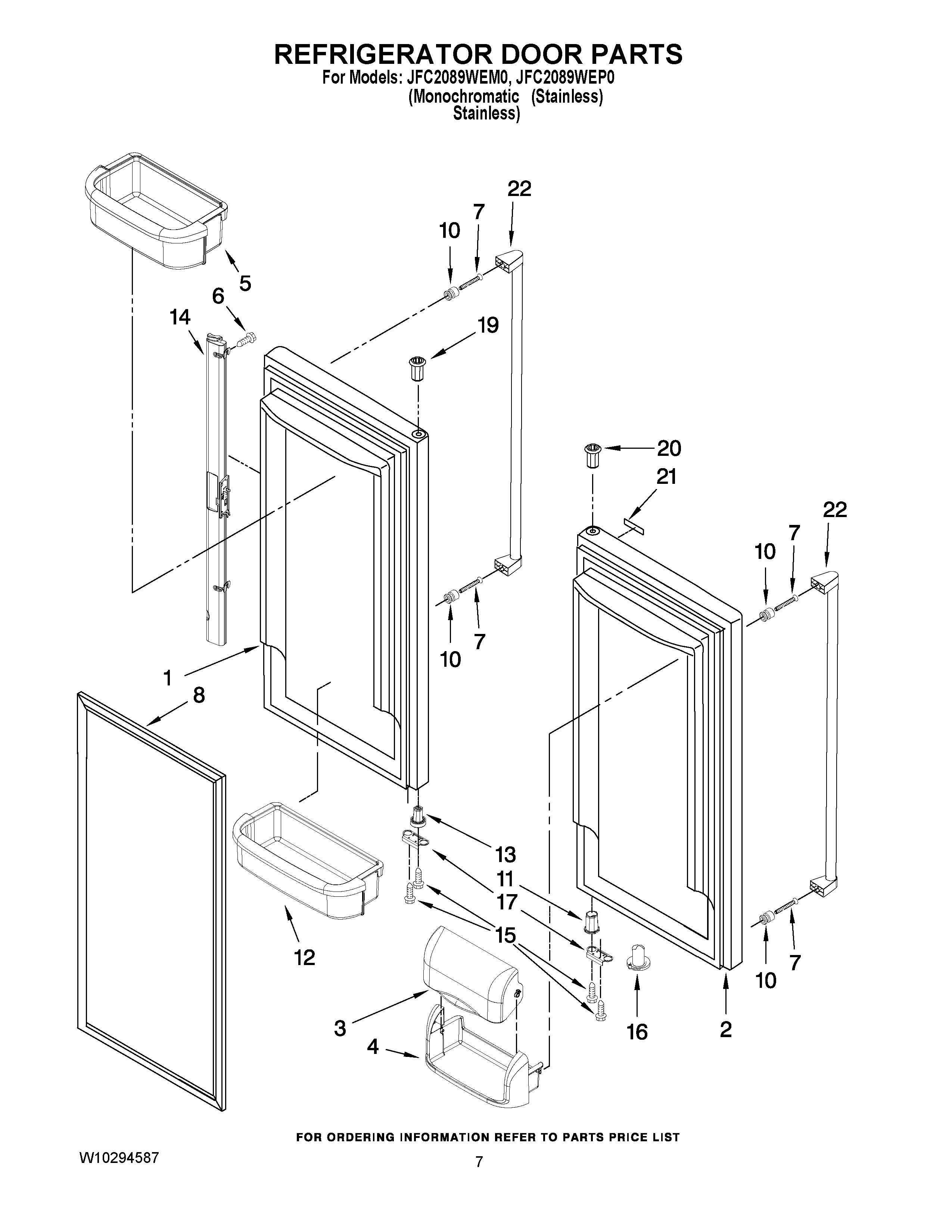

JFC2089WEM0 04 – REFRIGERATOR DOOR PARTS

JFC2089WEM0 04 – REFRIGERATOR DOOR PARTS

Written by

in

JFC2089WEM0 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 13024084SQ
2	MAY 13024085SQ
3	MAY 12804701SP
4	MAY 12369502SP
5	BIN, SHELF (3)
6	MAY 12990204
7	SCREW
8	Gasket, Door (2) (Apollo Grey)
10	MAY 13001201
11	BUSHING (RIGHT)
12	MAY 12840002
13	BUSHING (LEFT)
14	MAY 12722803AP
15	MAY 12990504
16	MAY 12028505AP
17	MAY 10447114
19	BUSHING, DOOR (BLK)
20	BUSHING (GREY)
21	W11636815 Whirlpool Nameplate
21	ASSEMBLY, BADGE (STAINLESS)
22	HANDLE, DOOR (STAINLESS)
22	Handle, Door (Stainless)
