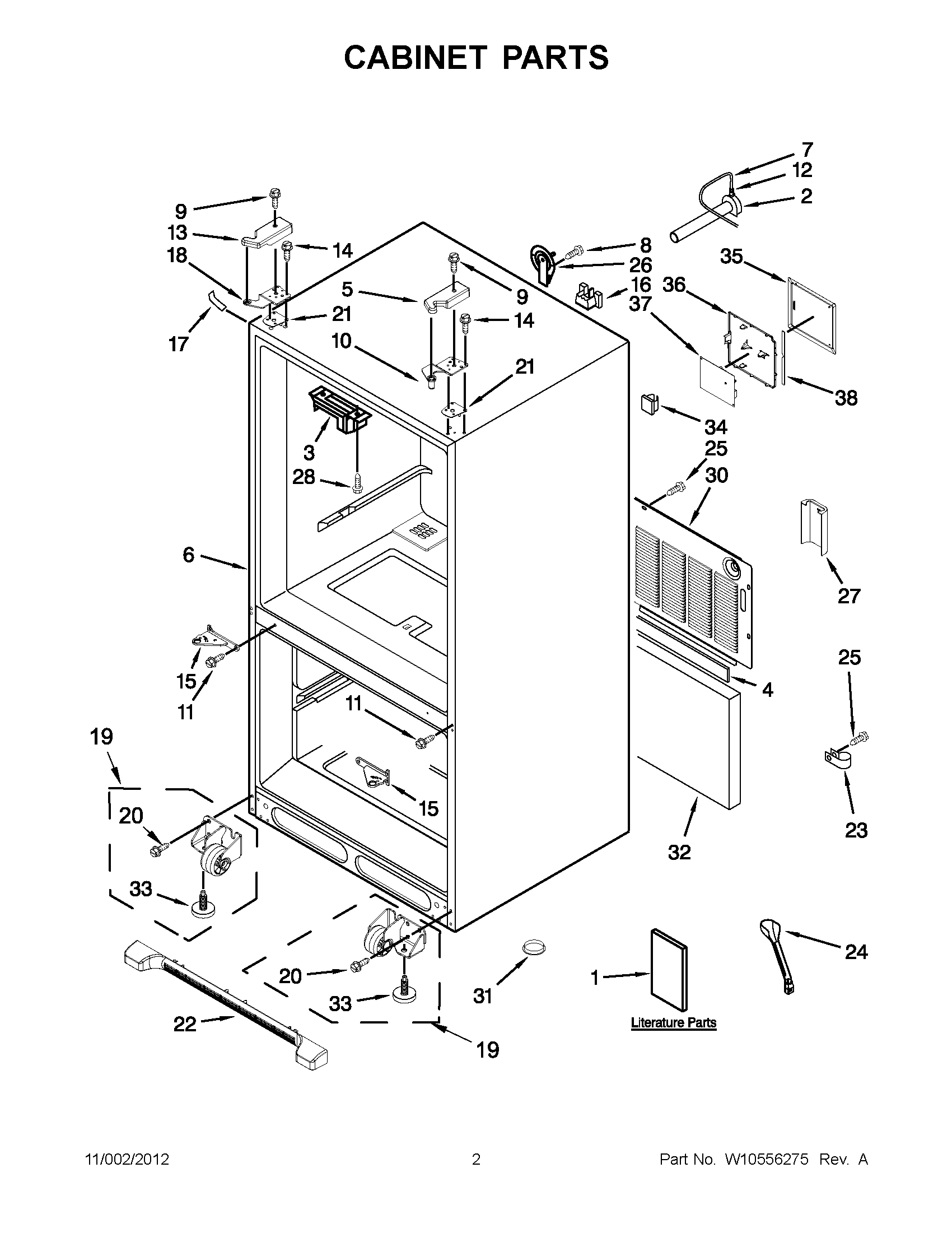

JFC2089WEM11 01 – CABINET PARTS

Products

Position	Product
1	MAY W10280181
1	MAY W10544193
1	MAY W10277506
2	FUNNEL, FILL TUBE
3	Block, Pivot
4	MAY B5759655
5	COVER, RIGHT HINGE (BLACK)
6	LINER (NOT A SERVICEABLE PART)
7	MAY B5705333
8	MAY 12990504
9	MAY 12992602
10	Hinge, Top Right
11	MAY W10339086
12	Clip
13	COVER, LEFT HINGE (BLACK)
14	SCREW (6)
15	HINGE, CENTER (APOLLO GREY)
16	MAY 12777701
17	COVER, CORNER (GREY)
18	Hinge, Top Left
19	ROLLER ASSEMBLY (LEFT HAND)
19	ROLLER ASSEMBLY (RIGHT HAND)
20	Screw (8)
21	MAY 12579702
22	GRILLE, TOE (GREY)
23	CLAMP, TUBE
24	TUBE-DRAIN
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	Screw (4)
30	MAY W10211855
31	A3076901 Whirlpool Refrigerator Plug
32	Insulation, Sound
33	Brake, Foot
34	WPM0104106 Whirlpool Refrigerator Clip
35	MAY 12961602
36	MAY 12957702SP
37	BOARD, HV CONTROL
38	MAY 12957801SP
