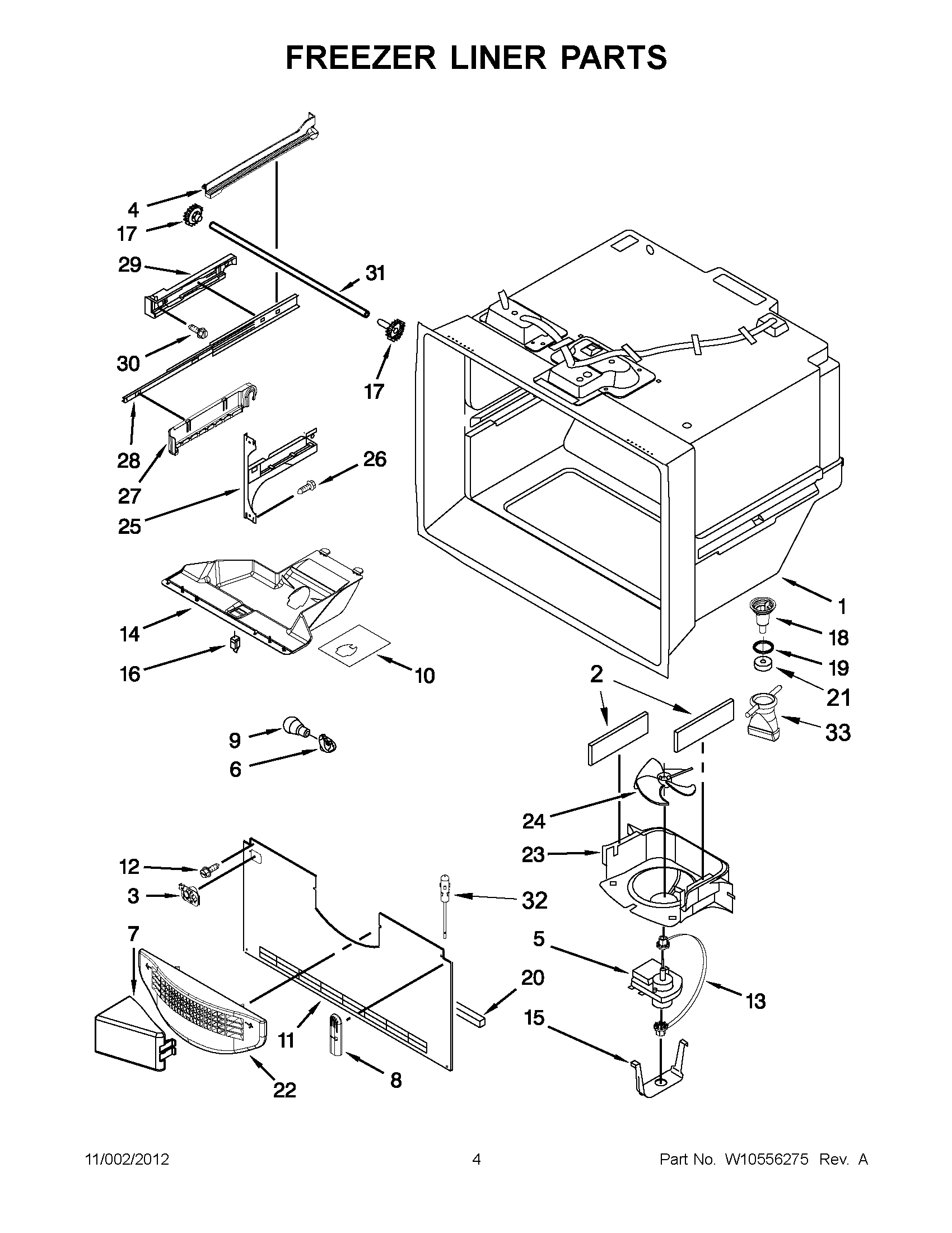

JFC2089WEM11 02 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12932103
4	RACK, SIDE (LEFT HAND)
4	RACK, SIDE (RIGHT HAND)
5	MAY W10128551
6	W11447232 Whirlpool Refrigerator Socket
7	MAY W10157765
8	MAY 12815301
9	MAY W10311505
10	FOIL-FZ LIGHT
11	MAY W10308416
12	SCREW (10)
13	MAY W10121318
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	12002497 Whirlpool Refrigerator Drawer Gear Kit
18	MAY D7753903
19	MAY M0500703
20	GASKET, BOTTOM
21	Gasket
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	BRACKET, DOOR (RIGHT)
25	BRACKET, DOOR (LEFT)
26	Screw (8)
27	CRADLE, BASKET (LEFT)
27	CRADLE, BASKET (RIGHT)
28	MAY W10488001N
29	BRACKET, SLIDE (LEFT)
29	BRACKET, SLIDE (RIGHT)
30	Screw (6)
31	SHAFT
32	MAY 12791419SP
33	MAY W10309238
