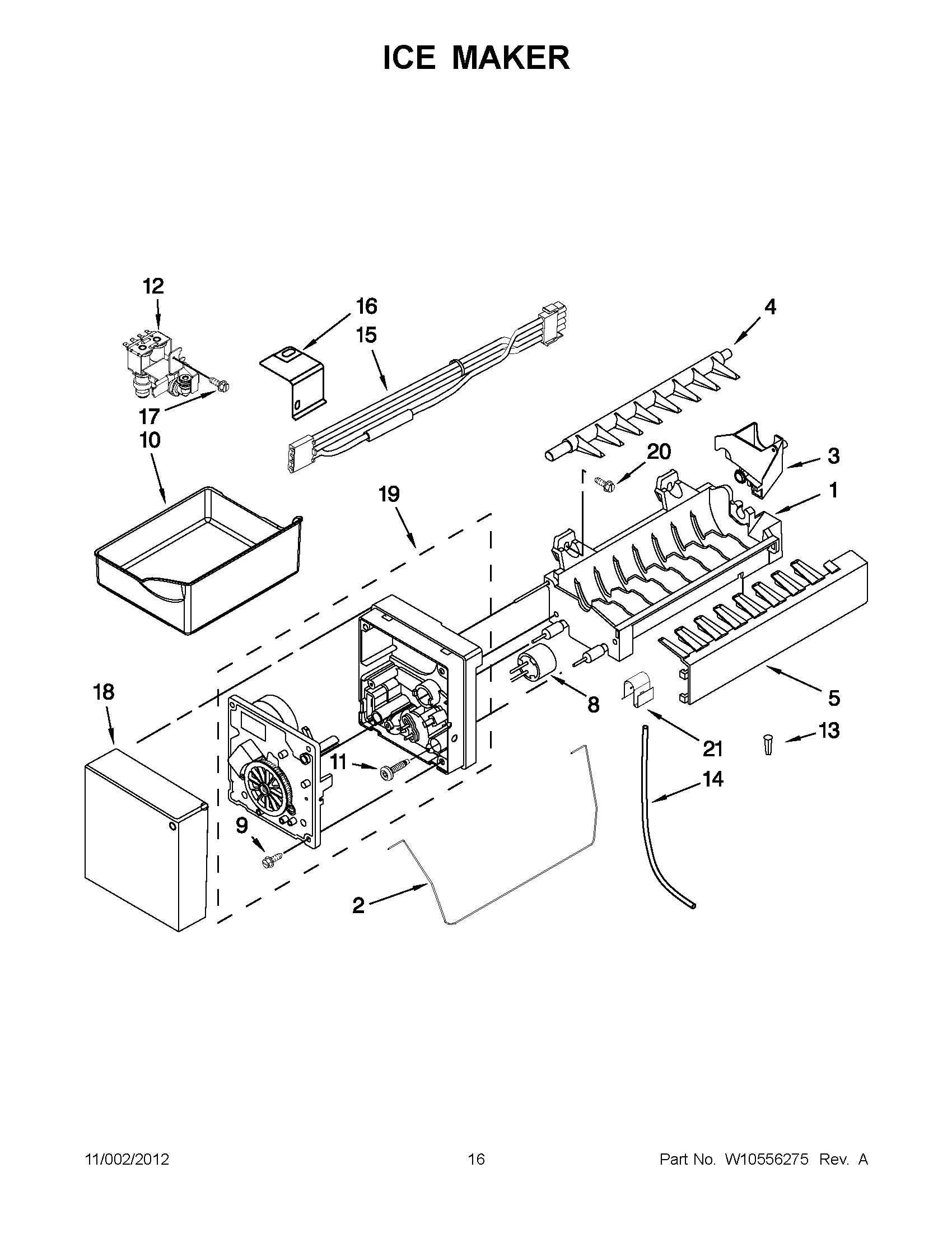

JFC2089WEM11 08 – ICE MAKER

Products

PositionProduct
1ASSEMBLY, MOLD AND HEATER
2ARM, SHUT OFF
3MAY W10410073
4MAY W10318914
5ICE STRIPPER
8MAY W10290336
9Screw (3)
10MAY W10171529N
11MAY 8533917
12VALVE, WATER INLET
13MAY A3223101
14MAY B5705333
15MAY W10458985
16MAY 2256086
17MAY 12991604
18MAY W10377174
19ASSEMBLY, MODULE AND MOTOR
20Screw (3)
21Clip
100ASSEMBLY, ICEMAKER (COMPLETE)
