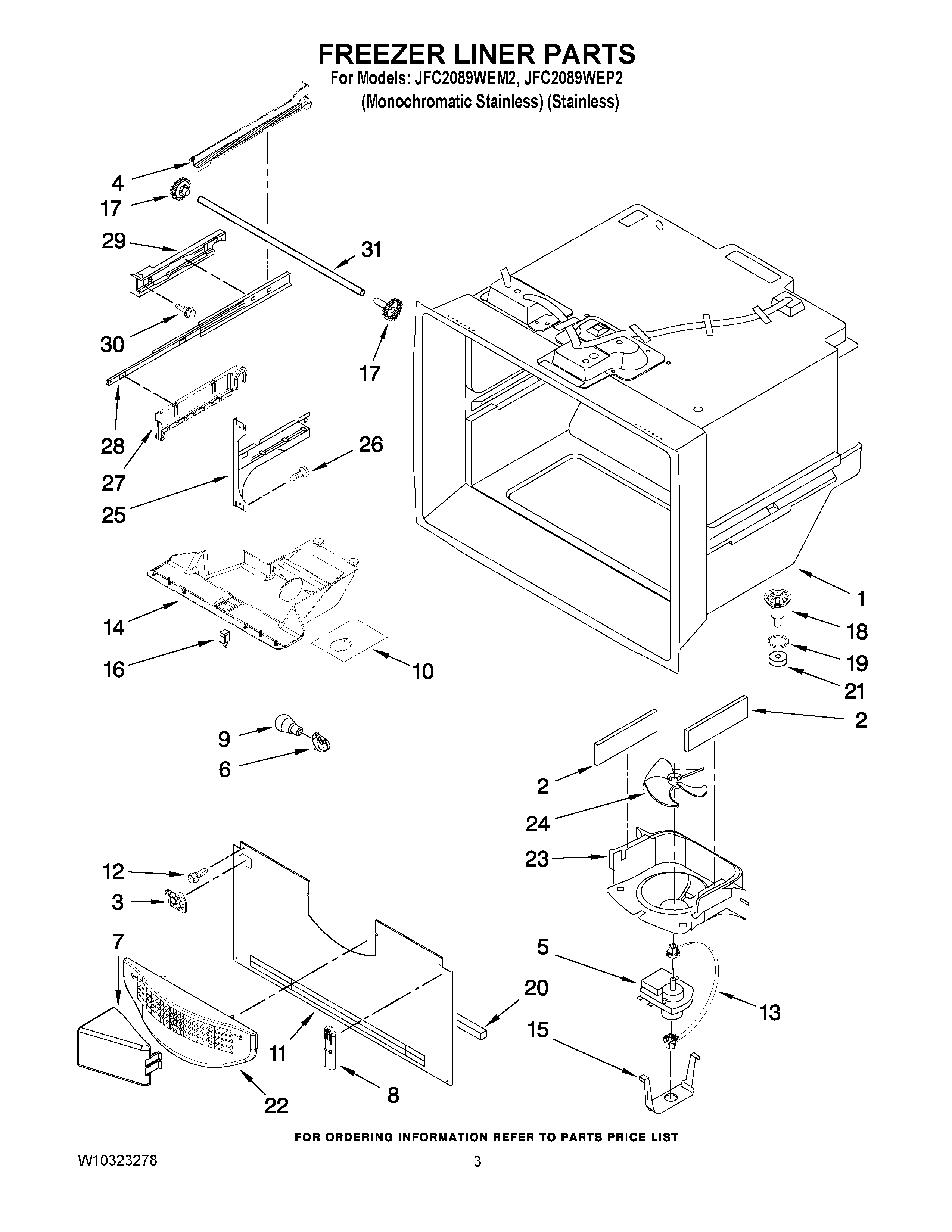

JFC2089WEM2 02 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12932103
4	MAY W10284697
4	MAY W10284696
5	MAY 13062901
6	Socket, Light
7	MAY W10157765
8	MAY 12815301
9	BULB, LIGHT (2)
10	FOIL-FZ LIGHT
11	MAY W10308416
12	SCREW (10)
13	MAY W10150583
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	12002497 Whirlpool Refrigerator Drawer Gear Kit
18	MAY D7753903
19	MAY M0500703
20	GASKET, BOTTOM
21	Gasket
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10119064
25	MAY W10119295
26	Screw (8)
27	CRADLE, BASKET (RIGHT)
27	CRADLE, BASKET (LEFT)
28	Slide, Drawer (2)
29	BRACKET, SLIDE (LEFT)
29	BRACKET, SLIDE (RIGHT)
30	Screw (6)
31	SHAFT
