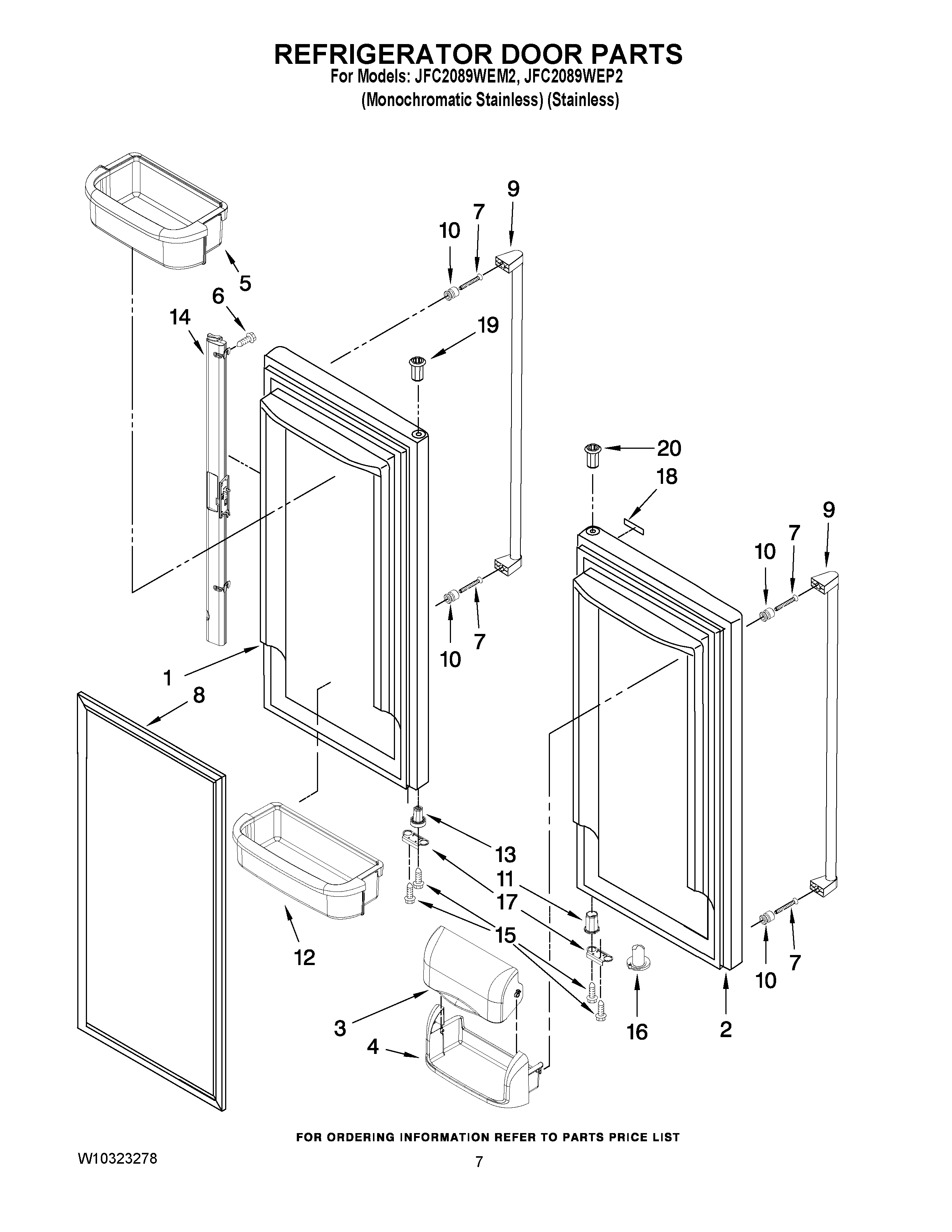

JFC2089WEM2 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 13107711SQ
2	MAY 13107712SQ
3	MAY 12804701SP
4	MAY 12369502SP
5	BIN, SHELF (3)
6	MAY 12990204
7	SCREW
8	Gasket, Door (2) (Apollo Grey)
9	HANDLE, DOOR (STAINLESS)
9	Handle, Door (Stainless)
10	MAY 13001201
11	BUSHING (RIGHT)
12	MAY 12840002
13	BUSHING (LEFT)
14	MAY 12722803AP
15	MAY 12990504
16	MAY 12028505AP
17	MAY 10447114
18	W11636815 Whirlpool Nameplate
18	ASSEMBLY, BADGE (STAINLESS)
19	BUSHING, DOOR (UPPER LEFT) (BLACK)
20	BUSHING (GREY)
