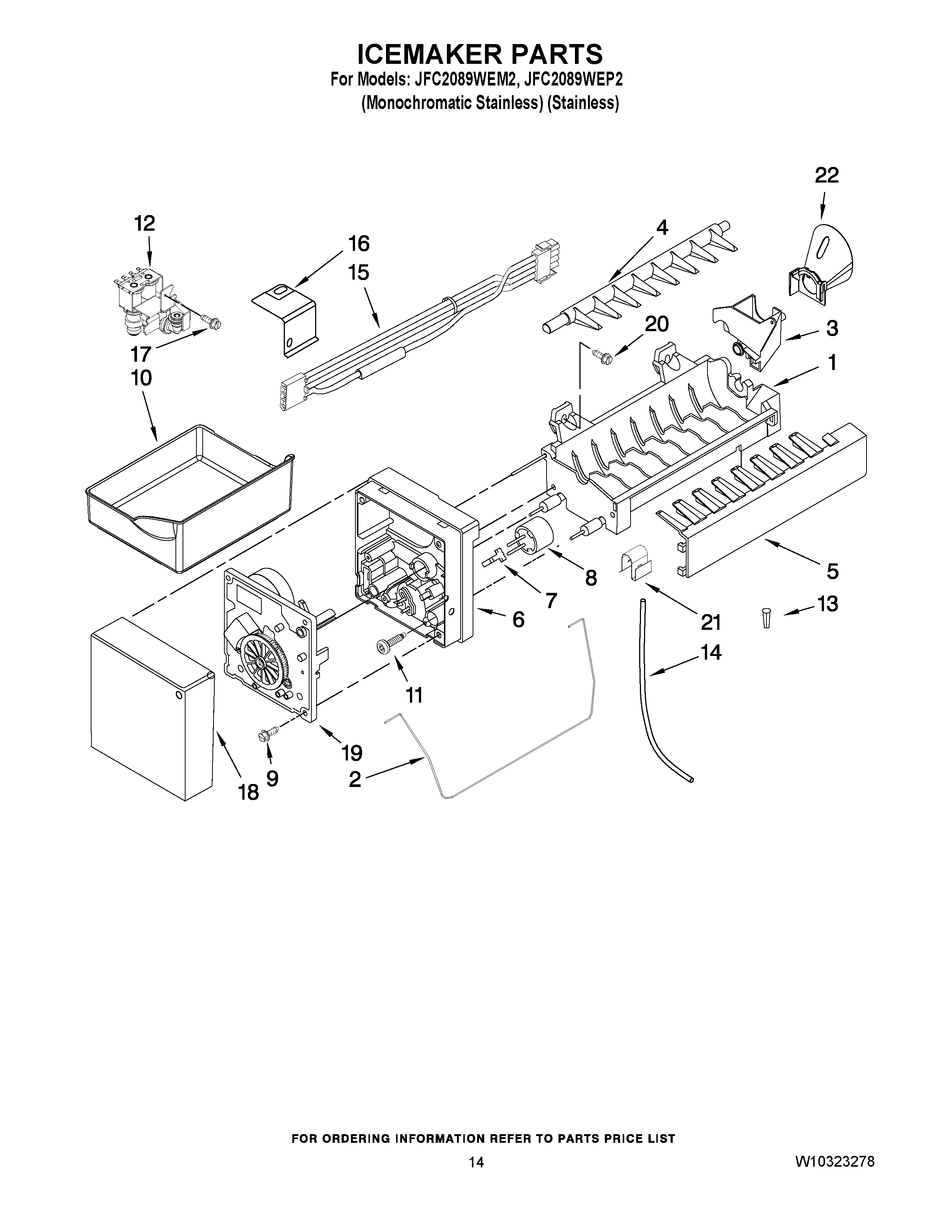

JFC2089WEM2 08 – ICEMAKER PARTS

Products

Position	Product
NI	W11033771 Whirlpool Refrigerator Coupling
1	MAY W10122527
2	ARM-SHUT OFF
3	Cup, Fill
4	MAY 627843
5	MAY 2182124
6	MAY 2194712
7	MAY 2315522
8	Thermostat (Also Order 542369 Cement Alumilastic)
9	Screw (3)
10	MAY W10171529
11	MAY 8533917
12	VALVE, WATER
13	MAY A3223101SP
14	TUBING, PLASTIC
15	MAY D7813011
16	MAY 2256086
17	MAY 12991604
18	Cover
19	MODULE ASSEMBLY (INCLUDES ITEM 24)
20	MAY 489276
21	Clip
22	MAY 12918001
100	ICEMAKER ASSEMBLY (COMPLETE)
