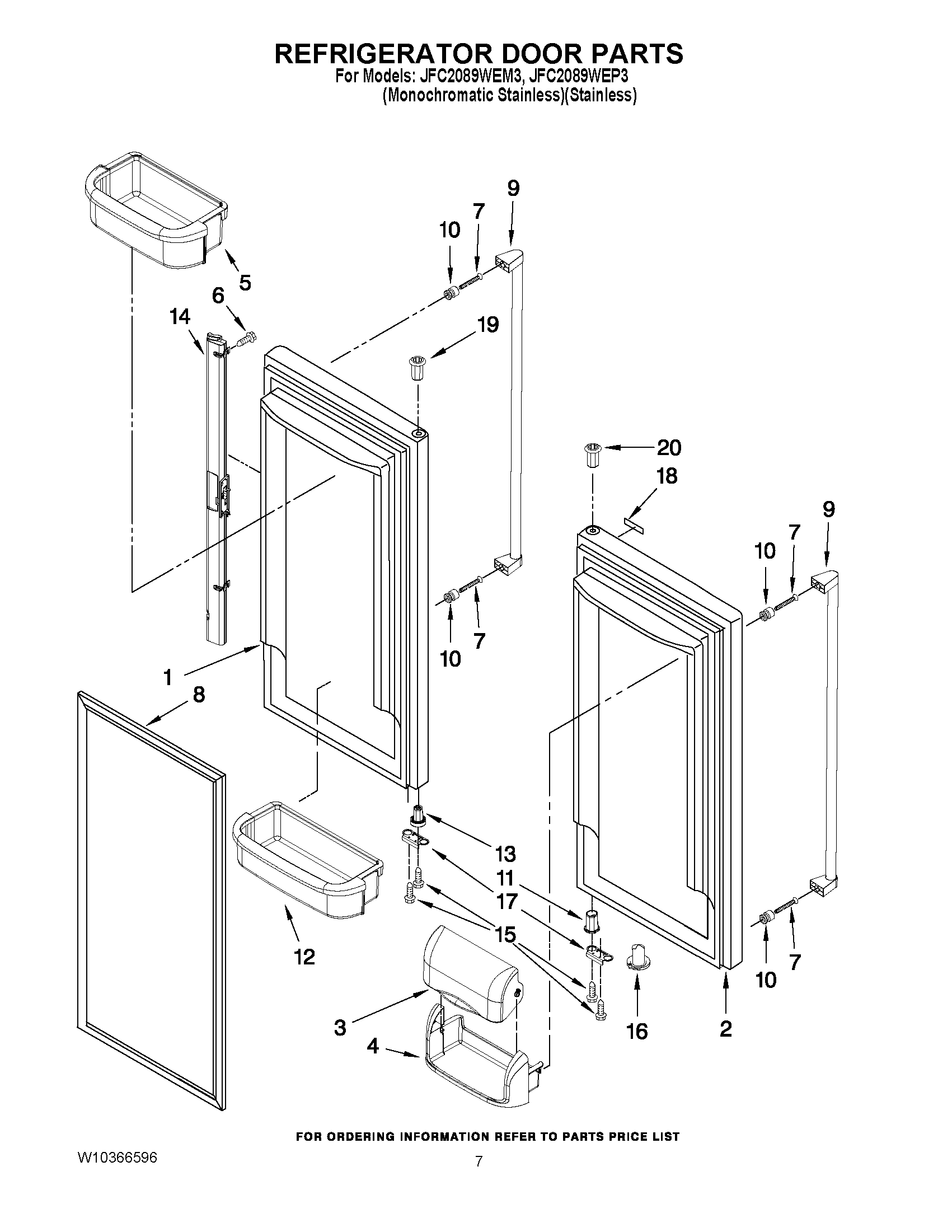

JFC2089WEM3 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 13107711S
2MAY 13107712S
3MAY 12804701SP
4MAY 12369502SP
5BIN, SHELF (3)
6MAY 12990204
7SCREW
8Gasket, Door (2) (Apollo Grey)
9HANDLE, DOOR (STAINLESS)
9Handle, Door (Stainless)
10MAY 13001201
11BUSHING (RIGHT)
12MAY 12840002
13BUSHING (LEFT)
14MAY 12732501AP
15MAY 12990504
16MAY 12028505AP
17MAY 10447114
18W11636815 Whirlpool Nameplate
18ASSEMBLY, BADGE (STAINLESS)
19BUSHING, DOOR (UPPER LEFT) (BLACK)
20BUSHING (GREY)
