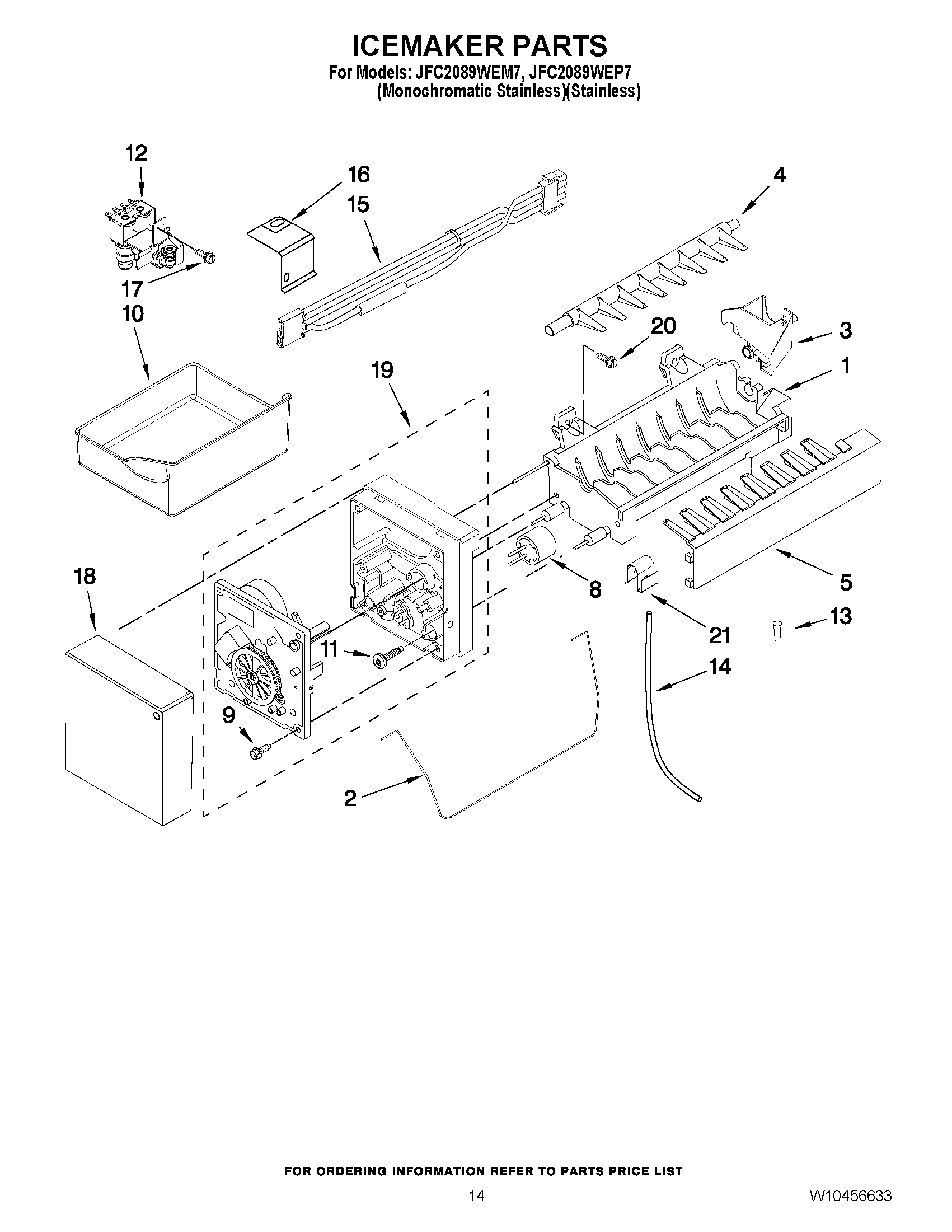

JFC2089WEM7 08 – ICEMAKER PARTS

Products

Position	Product
NI	W11033771 Whirlpool Refrigerator Coupling
1	ASSEMBLY, MOLD AND HEATER
2	ARM-SHUT OFF
3	CUP, FILL
4	MAY W10318914
5	ICE STRIPPER
8	MAY W10290336
9	Screw (3)
10	MAY W10171529
11	MAY 8533917
12	VALVE, WATER INLET
13	MAY A3223101
14	TUBING, PLASTIC
15	MAY W10404661
16	MAY 2256086
17	MAY 12991604
18	MAY W10377174
19	ASSEMBLY, MODULE AND MOTOR
20	Screw (3)
21	Clip
100	ICEMAKER ASSEMBLY (COMPLETE)
