JFC2089WEP11 08 – ICE MAKER – Aparts

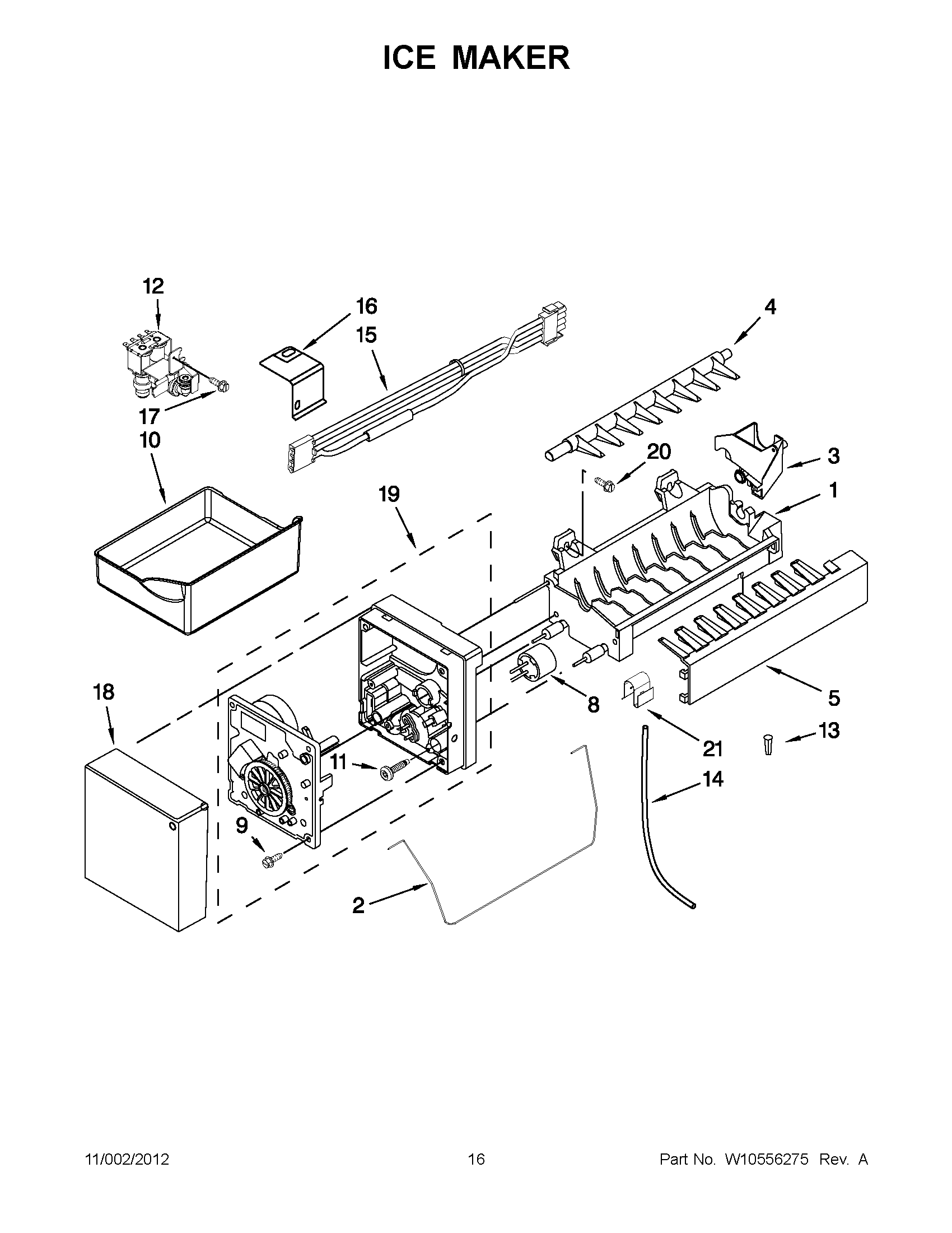

JFC2089WEP11 08 – ICE MAKER

Products

Position	Product
1	ASSEMBLY, MOLD AND HEATER
2	ARM, SHUT OFF
3	MAY W10410073
4	MAY W10318914
5	ICE STRIPPER
8	MAY W10290336
9	Screw (3)
10	MAY W10171529N
11	MAY 8533917
12	VALVE, WATER INLET
13	MAY A3223101
14	MAY B5705333
15	MAY W10458985
16	MAY 2256086
17	MAY 12991604
18	MAY W10377174
19	ASSEMBLY, MODULE AND MOTOR
20	Screw (3)
21	Clip
100	ASSEMBLY, ICEMAKER (COMPLETE)
