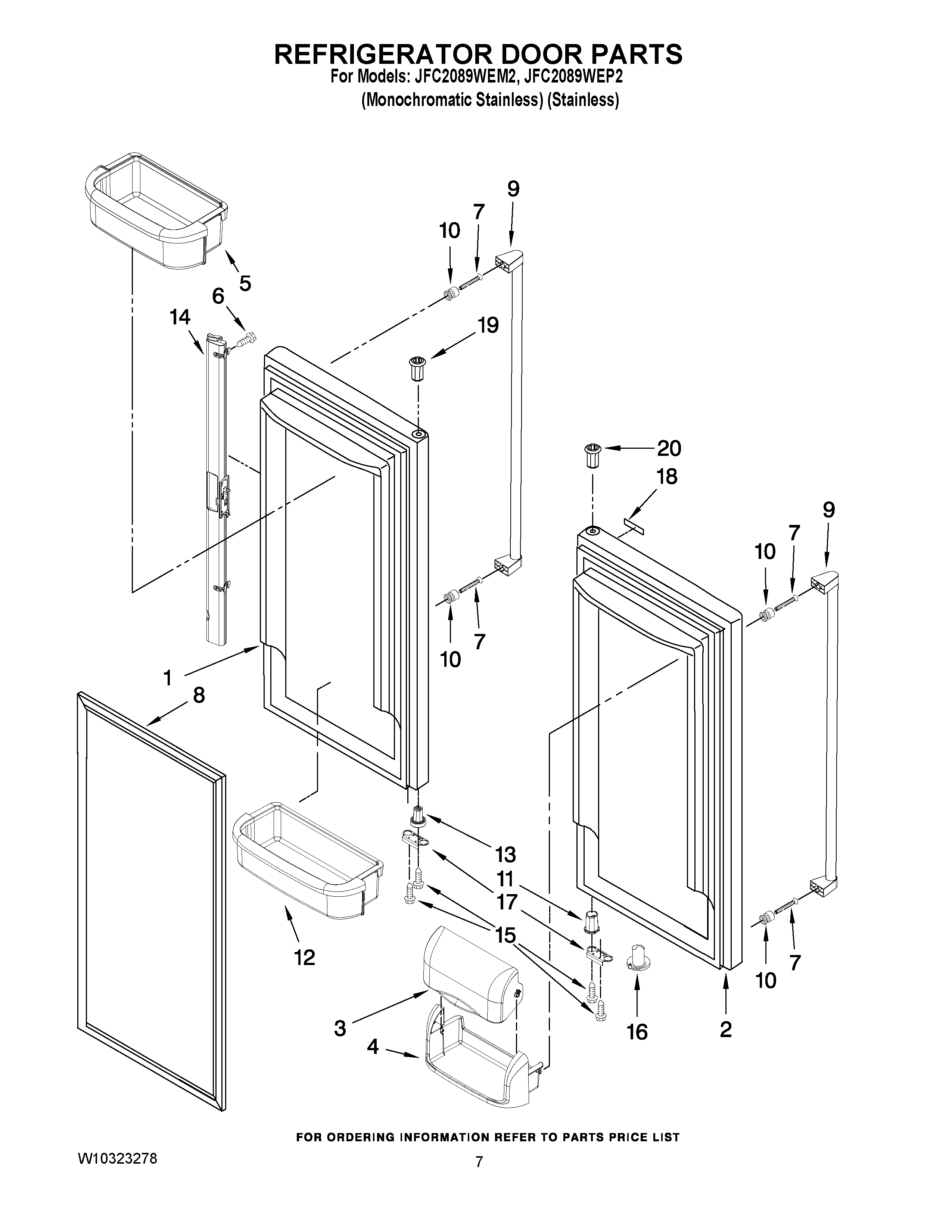

JFC2089WEP2 04 – REFRIGERATOR DOOR PARTS

JFC2089WEP2 04 – REFRIGERATOR DOOR PARTS

Written by

in

JFC2089WEP2 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 13107711SQ
2MAY 13107712SQ
3MAY 12804701SP
4MAY 12369502SP
5BIN, SHELF (3)
6MAY 12990204
7SCREW
8Gasket, Door (2) (Apollo Grey)
9HANDLE, DOOR (STAINLESS)
9Handle, Door (Stainless)
10MAY 13001201
11BUSHING (RIGHT)
12MAY 12840002
13BUSHING (LEFT)
14MAY 12722803AP
15MAY 12990504
16MAY 12028505AP
17MAY 10447114
18W11636815 Whirlpool Nameplate
18ASSEMBLY, BADGE (STAINLESS)
19BUSHING, DOOR (UPPER LEFT) (BLACK)
20BUSHING (GREY)
