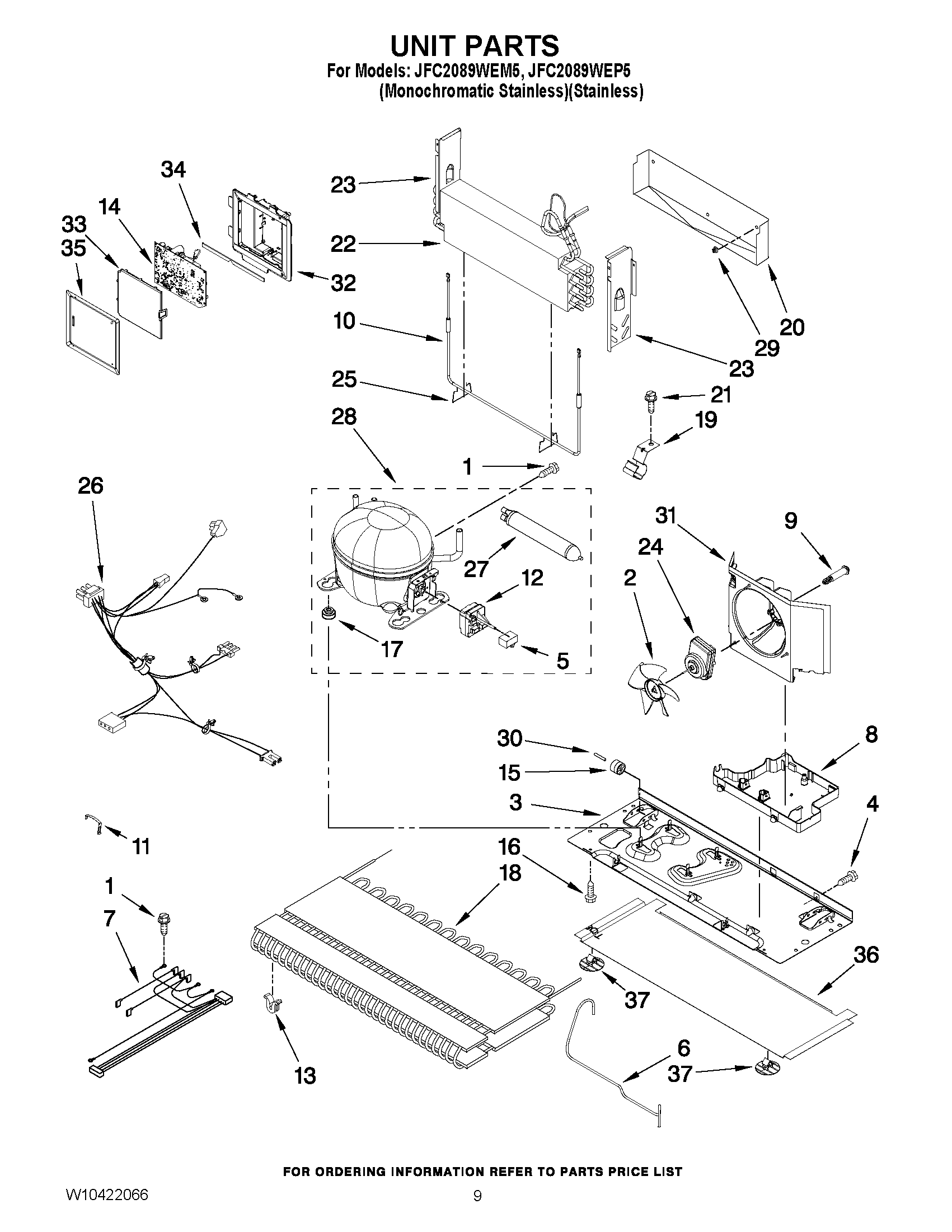

JFC2089WEP5 05 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	MAY 876764
1	MAY 12992301
2	MAY 12825803
3	MAY W10210985
4	SCREW (10)
5	Capacitator (Production)
6	MAY W10233569
7	HARNESS, EVAP. (HEATER)
8	MAY W10296785
9	MAY W10216919
10	EVAPORATOR HEATER
11	MAY W10174384
12	START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY)
13	GROMMET, COND (4)
14	BOARD, HV CONTROL
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10346415
19	MAY W10281329
20	MAY W10292803
21	MAY 12990701
22	MAY W10317014
23	DAM (LEFT SIDE)
23	Dam (Right Side)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	MAY W10234025
27	Drier
28	MAY W10187125
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	MAY W10257665
33	MAY W10296541
34	GASKET-HV BOX
35	MAY 12961602
36	EXTENSION, BASEPAN
37	MAY W10206339
