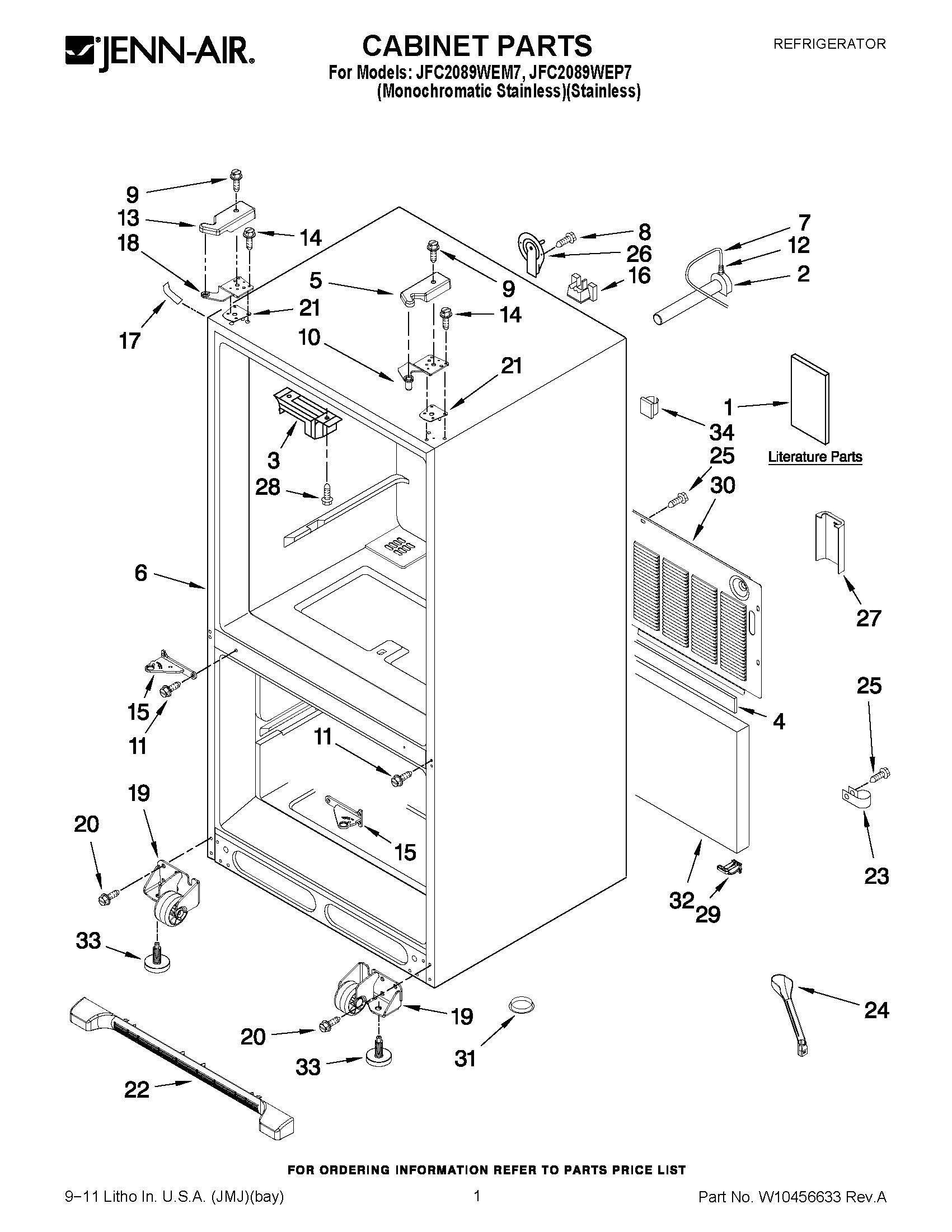

JFC2089WEP7 01 – CABINET PARTSadmin2025-04-26T09:25:49+00:00JFC2089WEP7 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10432494 |
| 1 | MAY W10277506 |
| 1 | MAY W10280181 |
| 2 | FUNNEL, FILL TUBE |
| 3 | Block, Pivot |
| 4 | MAY B5759655 |
| 5 | COVER, RIGHT HINGE (BLACK) |
| 6 | LINER (NOT A SERVICEABLE PART) |
| 7 | MAY B5705333 |
| 8 | MAY 12990504 |
| 9 | MAY 12992602 |
| 10 | Hinge, Top Right |
| 11 | SCREW (6) |
| 12 | Clip |
| 13 | COVER, LEFT HINGE (BLACK) |
| 14 | SCREW (6) |
| 15 | HINGE, CENTER (APOLLO GREY) |
| 16 | MAY 12777701 |
| 17 | COVER, CORNER (GREY) |
| 18 | Hinge, Top Left |
| 19 | ROLLER ASSY. (FRONT) (LEFT) |
| 19 | ROLLER ASSY. (FRONT) (RIGHT) |
| 20 | Screw (8) |
| 21 | MAY 12579702 |
| 22 | GRILLE, TOE (GREY) |
| 23 | CLAMP, TUBE |
| 24 | MAY W10210988 |
| 25 | SCREW (10) |
| 26 | MAY 12726003 |
| 27 | GUARD-WATER VALVE |
| 28 | SCREW (2) |
| 29 | MAY 12831101 |
| 30 | MAY W10211855 |
| 31 | A3076901 Whirlpool Refrigerator Plug |
| 32 | Insulation, Sound |
| 33 | Brake, Foot |
| 34 | WPM0104106 Whirlpool Refrigerator Clip |
