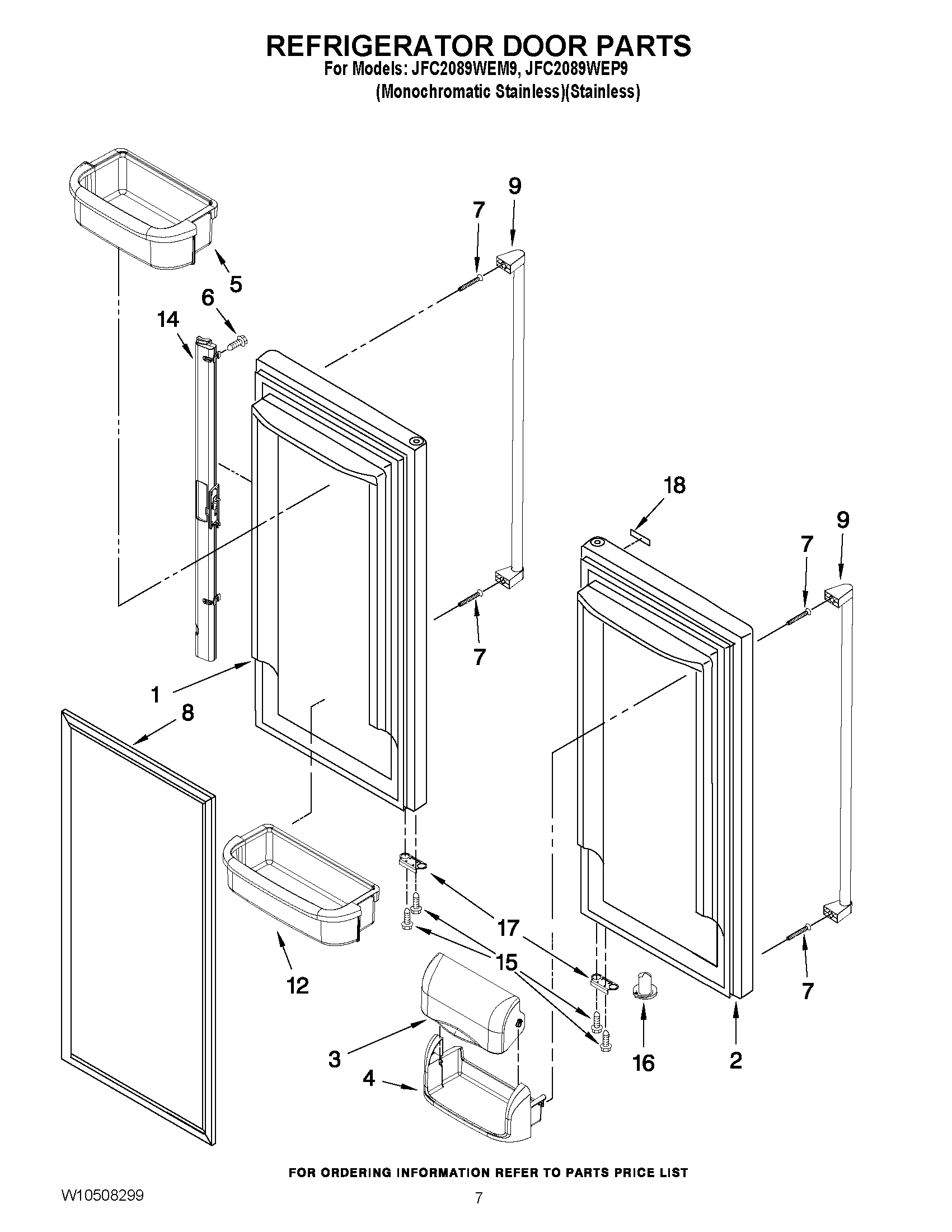

JFC2089WEP9 04 – REFRIGERATOR DOOR PARTS
Written by
in
JFC2089WEP9 04 – REFRIGERATOR DOOR PARTS
Products
Position
Product
1
MAY 13107778S
2
MAY 13107777S
3
MAY 12804701SP
4
MAY 12369502SP
5
BIN, SHELF (3)
6
MAY 12990204
7
SCREW
8
GASKET, DOOR (GREY)
9
HANDLE, DOOR (PRO STYLE)
9
MAY W10298244N
12
MAY 12840002
14
MAY 12732501AP
15
MAY 12990504
16
MAY 12028505AP
17
MAY 10447114
18
W11636815 Whirlpool Nameplate
18
ASSEMBLY, BADGE (STAINLESS)
←
