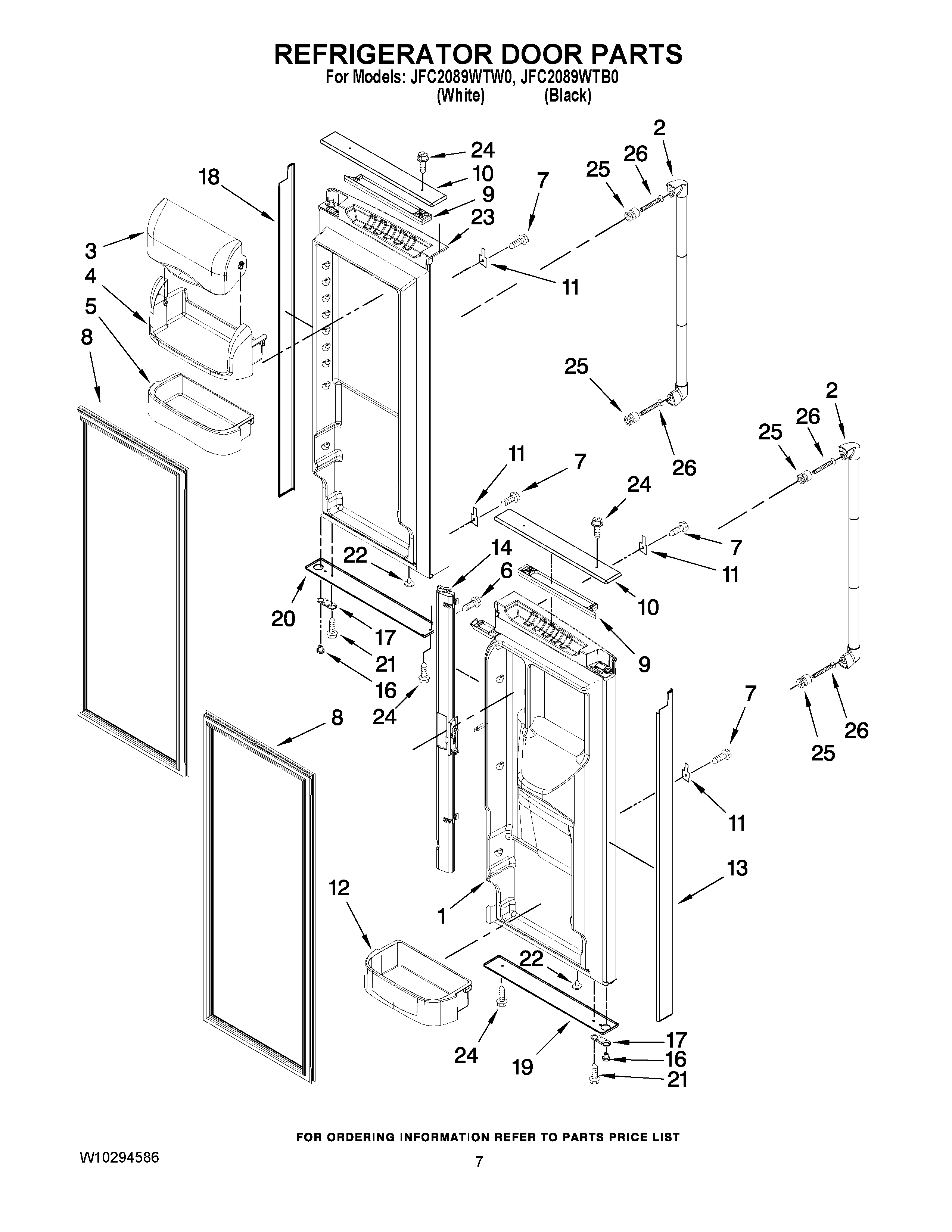

JFC2089WTB0 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 13024088WQ
1	MAY 13024088BQ
2	HANDLE, DOOR (STAINLESS)
3	MAY 12804701SP
4	MAY 12369502SP
5	BIN, SHELF (3)
6	MAY 12990204
7	MAY 12992701
8	MAY W10163895
8	Gasket, Door (2) (White)
9	MAY 12752801W
9	MAY 12752801B
10	MAY 12752907S1
10	MAY 12752908S1
11	MAY 12315104
12	MAY 12840002
13	MAY 12694502S1
14	MAY 12722803W
14	MAY 12722803B
16	MAY 12028505W
16	MAY 12028505B
17	Stop, Door (Black)
17	MAY 10447111
18	MAY 12694501S1
19	MAY 12752909S1
20	MAY 12752910S1
21	Screw (8)
22	BUSHING, DOOR (BOTTOM LEFT) (BLACK)
22	BUSHING, DOOR (BOTTOM LEFT)
23	MAY 13024089BQ
23	MAY 13024089WQ
24	MAY 12990504
25	MAY 13001201
26	Screw, Handle
