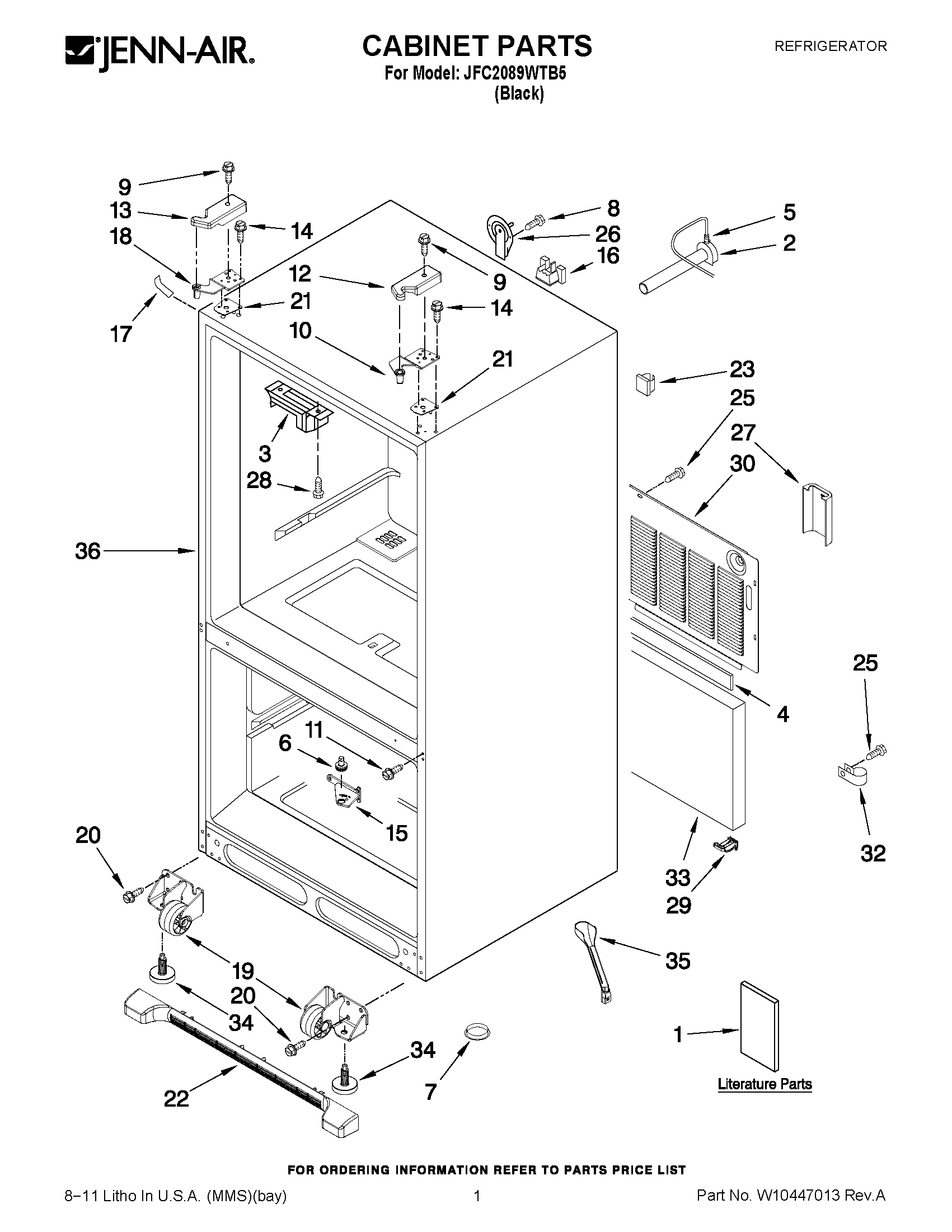

JFC2089WTB5 01 – CABINET PARTS

Products

Position	Product
1	MAY W10280181
1	MAY W10432494
1	MAY W10277506
2	MAY 10463203SP
3	Block, Pivot
4	MAY B5759655
5	CLIP
6	MAY 10351006
7	A3076901 Whirlpool Refrigerator Plug
8	MAY 12990504
9	MAY 12992602
10	Hinge, Top Right
11	SCREW (6)
12	MAY 12629801B
13	MAY W10217485
14	SCREW (6)
15	HINGE, CENTER (BLACK)
16	MAY 12777701
17	COVER, CORNER (BLACK)
18	Hinge, Top Left
19	ROLLER ASSY. (FRONT) (LEFT)
19	ROLLER ASSY. (FRONT) (RIGHT)
20	Screw (8)
21	MAY 12579702
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23	WPM0104106 Whirlpool Refrigerator Clip
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	SCREW (2)
29	MAY 12831101
30	MAY W10211855
32	CLAMP, TUBE
33	Insulation, Sound
34	Brake, Foot
35	MAY W10210988
36	LINER (NOT A SERVICEABLE PART)
